Brake Master Cylinder - GT500: Removal

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery.

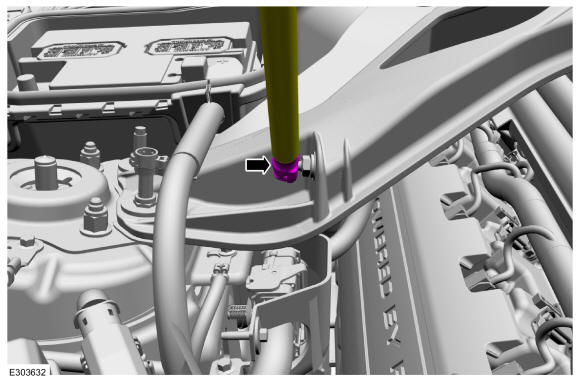

Safely support the hood, then disconnect the lower hood support.

Courtesy of FORD MOTOR COMPANY

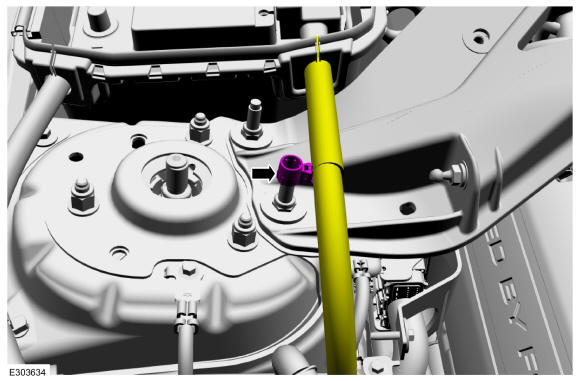

Detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

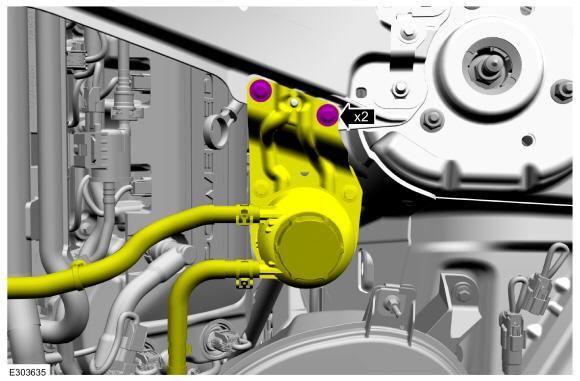

Remove the bolts, then move the coolant reservoir out of the way.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

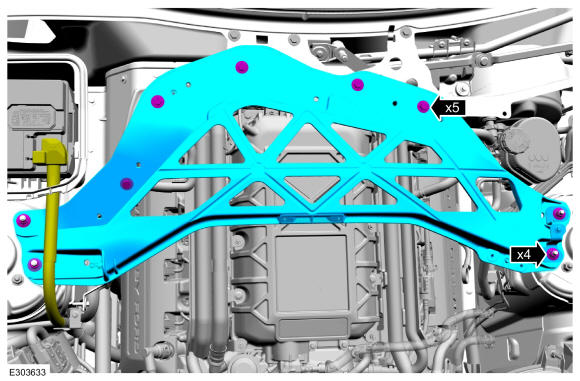

Remove the nuts, and the bolts, then remove the strut tower cross brace.
Torque

: Tighten the nuts to:41 lb.ft (55 Nm)

Tighten the bolts to: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
1. Disconnect the brake fluid level sensor electrical connector.
2. Detach the wiring harness retainer from the brake fluid reservoir.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

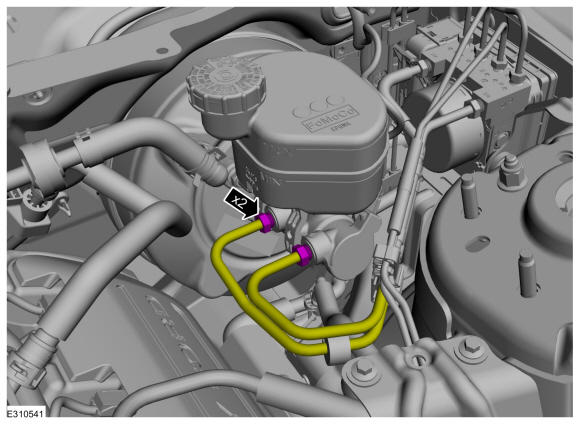

Disconnect the 2 brake tube fittings.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

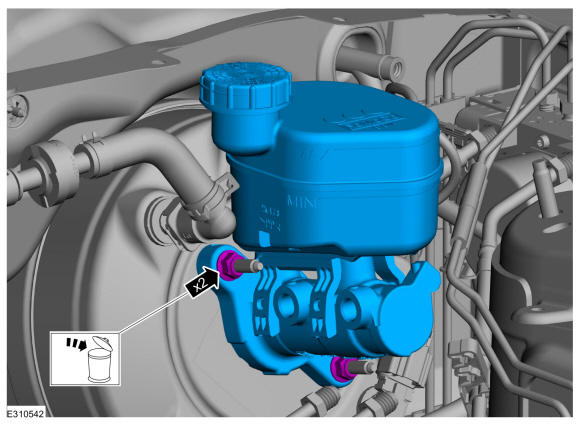

Remove the 2 nuts and the brake master cylinder. Discard the nuts.
Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
