Rear Quarter Window Glass Adjustment - Convertible

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Adjustment

All adjustments

NOTE: RH side shown in illustration, LH side similar.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Click here to view a video version of the rear quarter window glass adjustment procedure.
multimedia:A supplement to the article is available.

View

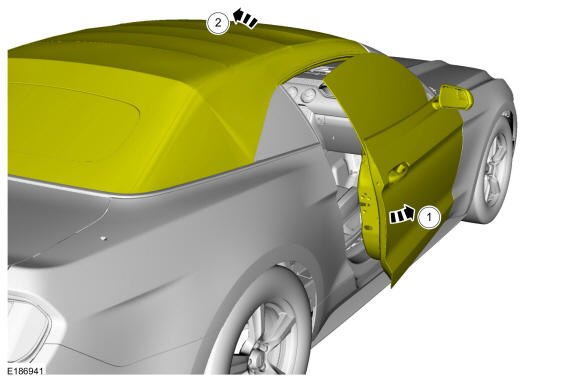

  1. Open the door and lower the convertible top.

    1. Open the door.
    2. Lower the convertible top.

    GFD605357Courtesy of FORD MOTOR COMPANY
  2. Raise all the windows to the full up position.
  3. If equipped, remove the RTM. Refer to: Radio Transceiver Module (RTM)
  4. Remove the rear quarter panel speaker.

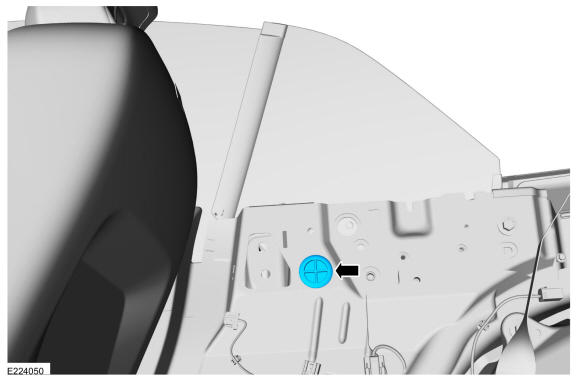

  5. Remove the access plug.
    GFD605358Courtesy of FORD MOTOR COMPANY

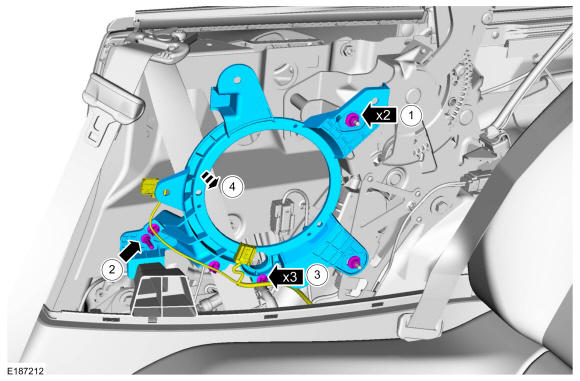

  6. Remove the rear quarter panel speaker bracket.

    1. Remove the nuts.

      Torque

      : 71 lb.in (8 Nm)

    2. Remove the stud bolt.

      Torque

      : 97 lb.in (11 Nm)

    3. Detach the retainers and position aside the wiring harness.
    4. Remove the rear quarter panel speaker bracket.

    GFD605359Courtesy of FORD MOTOR COMPANY

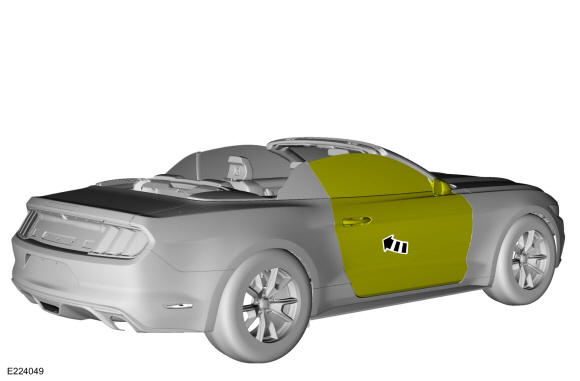

  7. Close the door.
    GFD605360Courtesy of FORD MOTOR COMPANY

    Up/Down, Fore/Aft adjustment

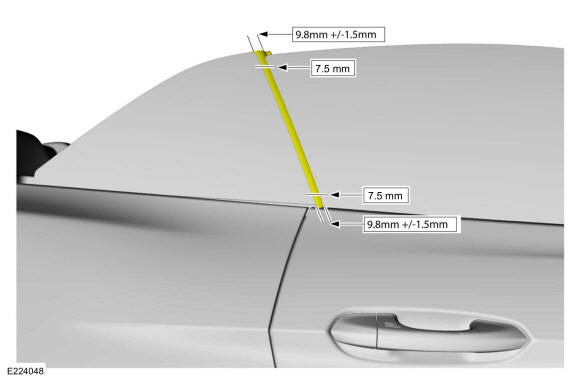

  8. Measure the gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.

    1. Measure at the rear of front door glass 7.5 mm from the base of the outer belt moulding. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.
    2. Measure at the rear of front door glass 7.5 mm from the top of the front door window glass. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.

    GFD605361Courtesy of FORD MOTOR COMPANY
  9. Subtract the measurements recorded in the previous step. The variance between top to bottom of the front door window glass edge to the rear quarter window glass edge should be +/- 1.0 mm.

    1. If the measurements are not within range or the variance between top to bottom of the front door window glass edge to the rear quarter window glass edge is greater than +/- 1.0 mm the rear quarter window glass must be adjusted.

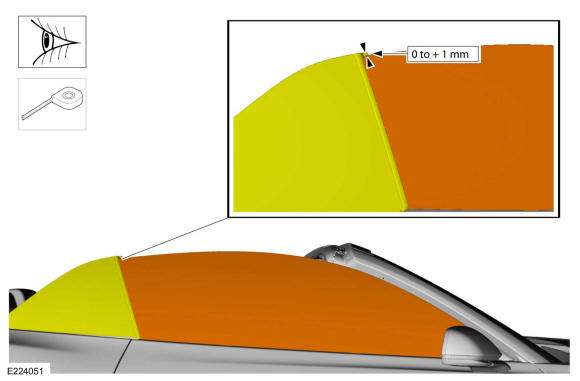

  10. Measure at the top of front door glass to top of the rear quarter window glass. Record the measurement. The measurement should be between 0 mm to 1 mm resulting in the rear quarter window glass being level or higher than the front door window glass.
    GFD605362Courtesy of FORD MOTOR COMPANY

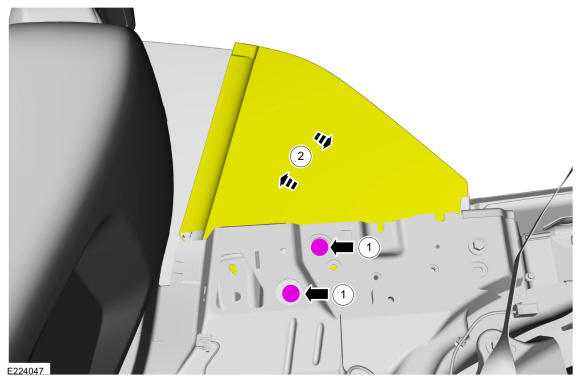

  11. Adjust the rear quarter window glass as necessary.

    1. Loosen the rear quarter window glass bolts enough to permit movement.
    2. Adjust the rear quarter window glass as necessary.

    GFD605363Courtesy of FORD MOTOR COMPANY
  12. Measure at the top of front door glass to top of the rear quarter window glass. Record the measurement. The measurement should be between 0 mm to 1 mm resulting in the rear quarter window glass being level or higher than the front door window glass. If the measurement are not within range the rear quarter window glass must be adjusted.
    GFD605362Courtesy of FORD MOTOR COMPANY
  13. Measure the gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.

    1. Measure at the rear of front door glass 7.5 mm from the base of the outer belt moulding. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.
    2. Measure at the rear of front door glass 7.5 mm from the top of the front door window glass. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.

    GFD605361Courtesy of FORD MOTOR COMPANY
  14. Subtract the measurements recorded in the previous step. The variance between top to bottom of the front door window glass edge to the rear quarter window glass edge should be +/- 1.0 mm.

    1. If the measurements are not within range or the variance between top to bottom of the front door window glass edge to the rear quarter window glass edge is greater than +/- 1.0 mm the rear quarter window glass must be adjusted.

  15. NOTE: Take care not to influence the position of the rear quarter window glass when tightening the bolts.

    Tighten the rear quarter window glass bolts.

    Torque

    : 97 lb.in (11 Nm)

    GFD605363Courtesy of FORD MOTOR COMPANY

    In/Out adjustment

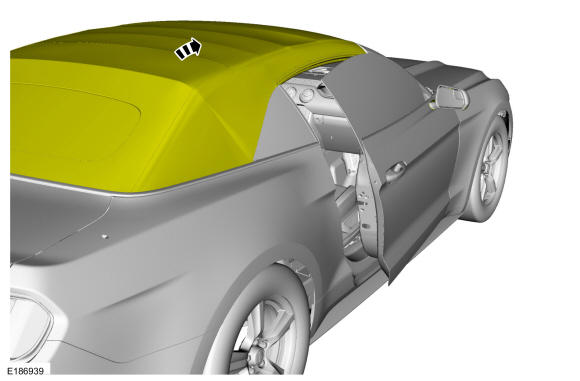

  16. Close the convertible top.
    GFD605364Courtesy of FORD MOTOR COMPANY
  17. Raise all the windows to the full up position.
  18. Open the door.
    GFD605332Courtesy of FORD MOTOR COMPANY

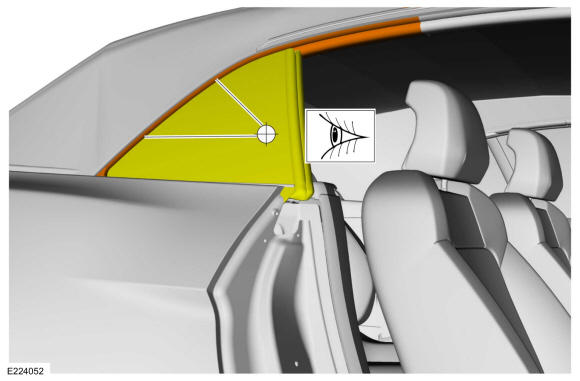

  19. Check the relative position of the rear quarter window glass to the convertible top rear quarter window glass seals. Make sure the division bar seal enters the convertible top seals completely when the quarter window glass is raised to full up position and engages the door glass without clipping.
    GFD605365Courtesy of FORD MOTOR COMPANY

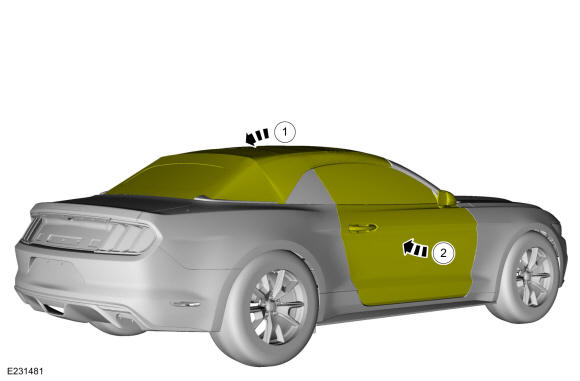

  20. Lower the convertible top.

    1. Lower the convertible top.
    2. Close the door.

    GFD605366Courtesy of FORD MOTOR COMPANY
  21. Raise all the windows to the full up position.

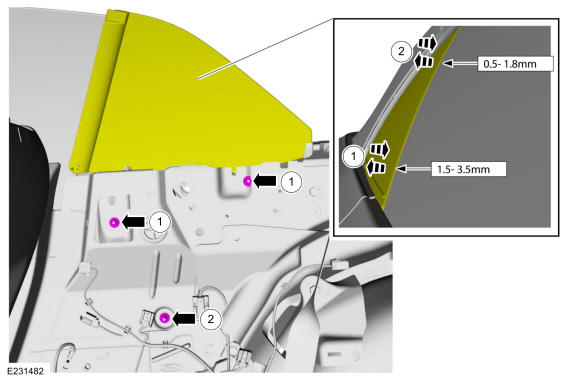

  22. Adjust the rear quarter window glass/regulator assembly as necessary.

    1. NOTE: These two jack screws adjust the in/out pitch of the rear quarter window glass at the base near the quarter panel.

      Loosen the rear quarter window glass/regulator assembly nuts and adjust the jack screws as necessary until the rear quarter window glass is with specification.

    2. NOTE: This jack screw adjusts the in/out pitch of the rear quarter window glass at the convertible top.

      Loosen the rear quarter window glass/regulator assembly nut and adjust the jack screw as necessary until the rear quarter window glass is with specification.

    GFD605367Courtesy of FORD MOTOR COMPANY
  23. Close the convertible top.
    GFD605364Courtesy of FORD MOTOR COMPANY
  24. Raise all the windows to the full up position.
  25. Open the door.
    GFD605332Courtesy of FORD MOTOR COMPANY
  26. Check the relative position of the rear quarter window glass to the convertible top rear quarter window glass seals. Make sure the division bar seal enters the convertible top seals completely when the quarter window glass is raised to full up position and engages the door glass without clipping.
    GFD605365Courtesy of FORD MOTOR COMPANY

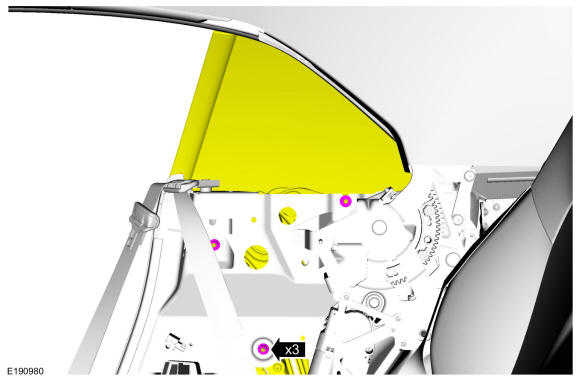

  27. NOTE: Take care not to influence the position of the rear quarter window glass when tightening the nuts.

    Tighten the rear quarter window glass/regulator assembly nuts.

    Torque

    : 177 lb.in (20 Nm)

    GFD605368Courtesy of FORD MOTOR COMPANY

    All adjustments

  28. Lower the convertible top.

    1. Lower the convertible top.
    2. Close the door.

    GFD605366Courtesy of FORD MOTOR COMPANY
  29. Raise all the windows to the full up position.
  30. Measure at the top of front door glass to top of the rear quarter window glass and record the measurement. The measurement should be between 0 mm to 1 mm resulting in the rear quarter window glass being level or higher than the front door window glass. If the measurement are not within range the rear quarter window glass must be adjusted.
    GFD605362Courtesy of FORD MOTOR COMPANY
  31. Measure the gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.

    1. Measure at the rear of front door glass 7.5 mm from the base of the outer belt moulding. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.
    2. Measure at the rear of front door glass 7.5 mm from the top of the front door window glass. Record the measurement. The gap between the front door window glass edge and the rear quarter window glass edge should be 9.8 mm +/- 1.5 mm.

    GFD605361Courtesy of FORD MOTOR COMPANY
  32. NOTE: Repeat steps 7 through 15 until the rear quarter window glass within specification.

    Subtract the measurements recorded in the previous step. The variance between top to bottom of the front door window glass edge to the rear quarter window glass edge should be +/- 1.0 mm.

    1. If the measurements are not within range or the variance between top to bottom of the front door window glass edge to the rear quarter window glass edge is greater than +/- 1.0 mm the rear quarter window glass must be adjusted.

  33. Close the convertible top.
    GFD605364Courtesy of FORD MOTOR COMPANY
  34. Raise all the windows to the full up position.
  35. Open the door.
    GFD605332Courtesy of FORD MOTOR COMPANY
  36. NOTE: Repeat steps 19 through 24 until the rear quarter window glass within specification.

    Check the relative position of the rear quarter window glass to the convertible top rear quarter window glass seals. Make sure the division bar seal enters the convertible top seals completely when the quarter window glass is raised to full up position and engages the door glass without clipping.

    GFD605365Courtesy of FORD MOTOR COMPANY
  37. Install the removed components.
