Hood Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Inspection

1. Inspect the hood-to-body dimensions. Refer to: BODY AND FRAME

   All alignments

2. Remove the hood latch. Refer to: Hood Latch

   Hood fore and aft, left and right alignments

   NOTE: Coupe shown in illustration, convertible similar.
   NOTE: Base version hood shown in illustration, all others similar.

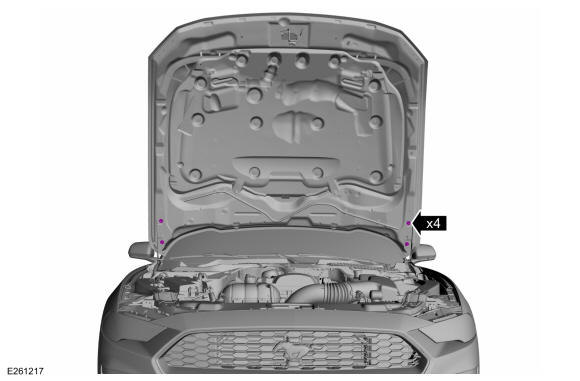

3. Loosen the nuts enough to permit movement of the hood.

   Courtesy of FORD MOTOR COMPANY

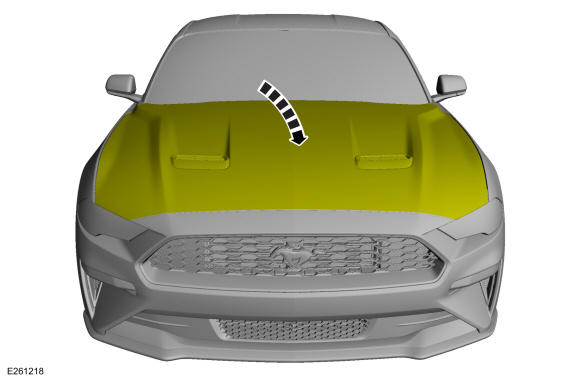

4. Carefully close the hood.

   Courtesy of FORD MOTOR COMPANY

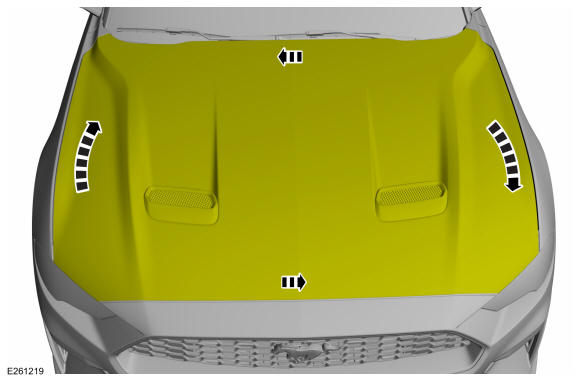

5. Adjust the hood to specification. Refer to: BODY AND FRAME

   Courtesy of FORD MOTOR COMPANY

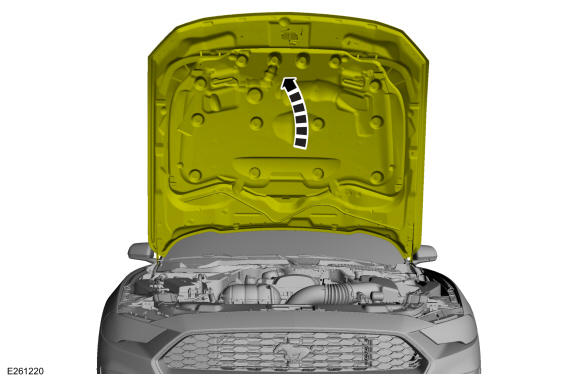

6. Carefully open the hood.

   Courtesy of FORD MOTOR COMPANY

7. Tighten the nuts.

   Torque

   : 106 lb.in (12 Nm)

   Courtesy of FORD MOTOR COMPANY

   Hood front up and down alignments

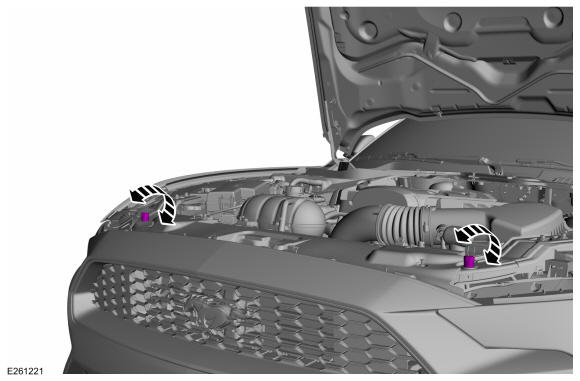

8. Adjust the bump stop rubbers.

   Courtesy of FORD MOTOR COMPANY

9. Carefully close the hood.

   Courtesy of FORD MOTOR COMPANY

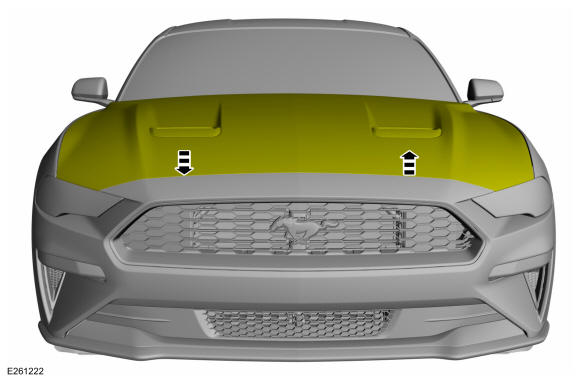

10. Adjust the hood to specification. Refer to: BODY AND FRAME

    Courtesy of FORD MOTOR COMPANY

    All alignments

11. Install the hood latch. Refer to: Hood Latch

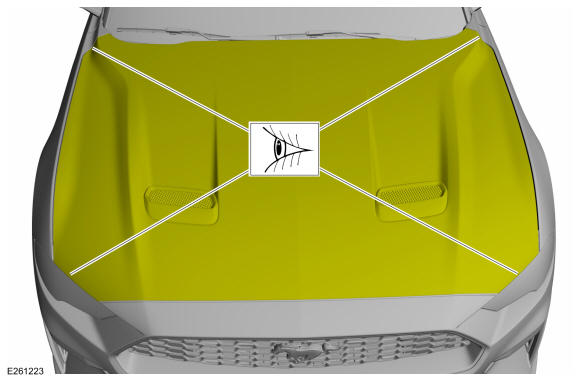

12. Inspect the body-to-hood dimensions. Refer to: BODY AND FRAME

Courtesy of FORD MOTOR COMPANY
