Front Door Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

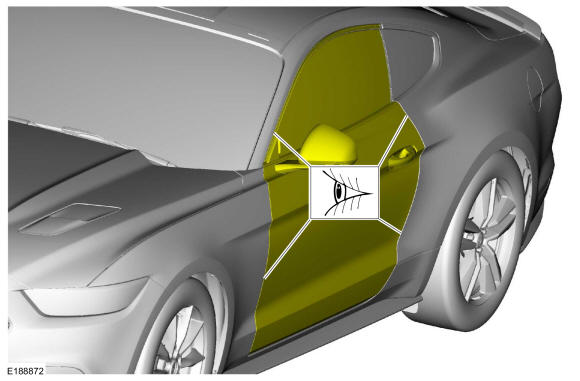

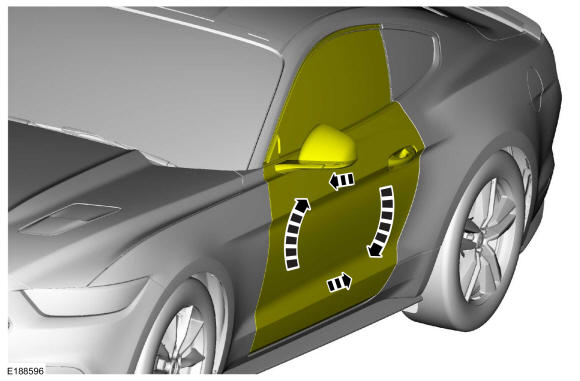

Inspection

NOTE: Coupe shown in illustration, convertible similar.

Adjustment

All alignments

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown in illustration, RH side similar.

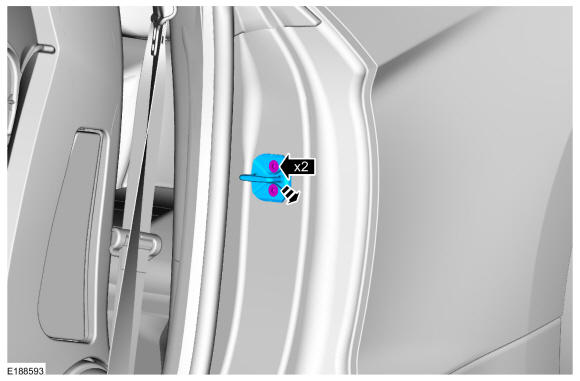

Remove the bolts and the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

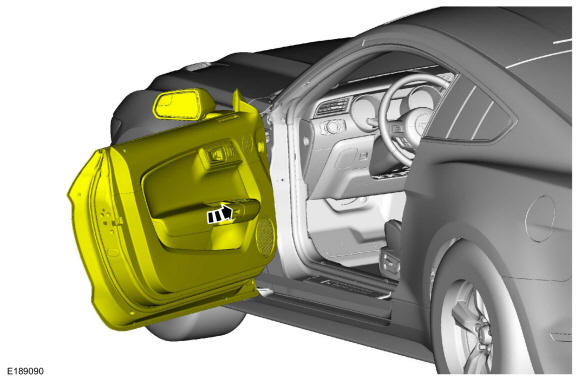

Open the door.

Courtesy of FORD MOTOR COMPANY

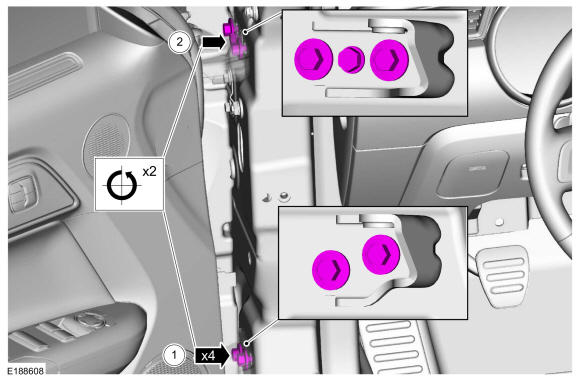

Loosen the nuts to permit movement of the door.
Loosen:2 turn(s)

Courtesy of FORD MOTOR COMPANY
Adjust the door to specification. Refer to: BODY AND FRAME

Courtesy of FORD MOTOR COMPANY

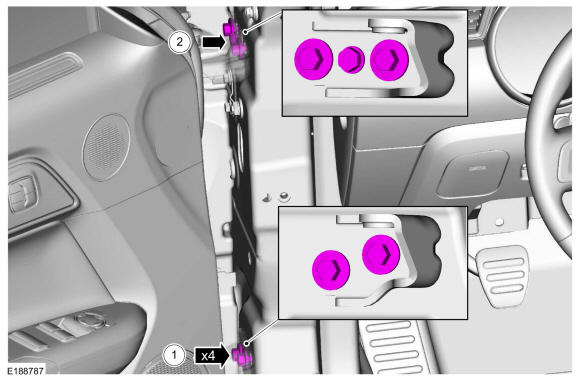

Tighten the nuts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment
Open the door.

Courtesy of FORD MOTOR COMPANY

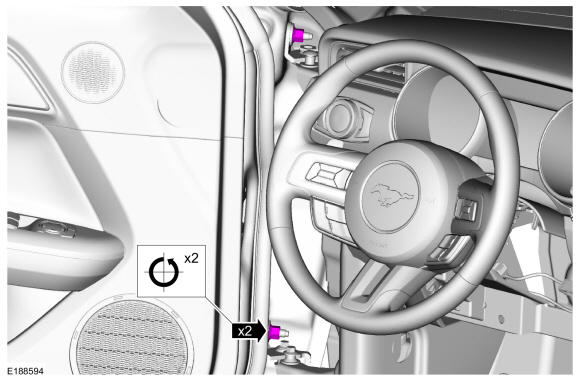

Loosen the bolts to permit movement of the door.
Loosen:2 turn(s)

Courtesy of FORD MOTOR COMPANY
Carefully close the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door to specification. Refer to: BODY AND FRAME

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY

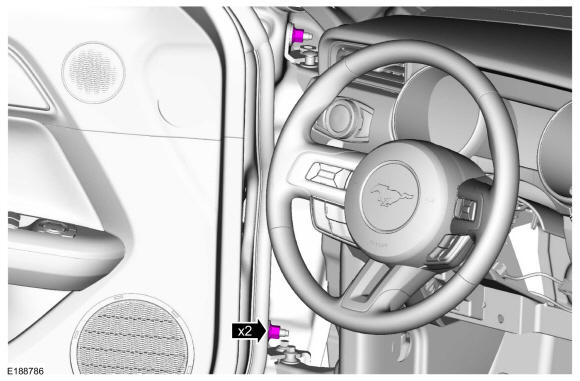

Tighten the bolts.
Torque

:1.: 22 lb.ft (30 Nm)

2.: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments

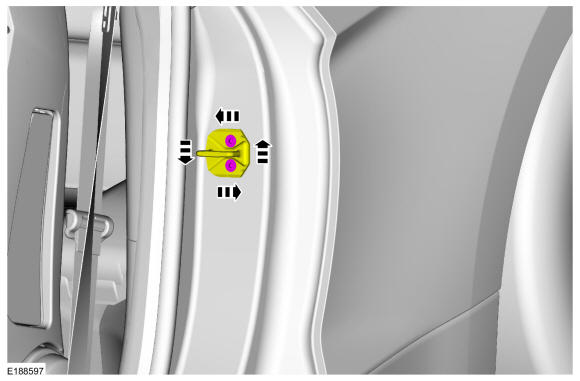

Loosen the bolts to permit movement of the striker assembly.
Loosen:2 turn(s)

Courtesy of FORD MOTOR COMPANY
Check body to front door dimensions. Refer to: BODY AND FRAME

Courtesy of FORD MOTOR COMPANY
Check the front door glass alignment. Refer to: Door Window Glass Adjustment - Convertible . Refer to: Door Window Glass Adjustment - Coupe
Install the removed components.
