Parking, Rear And License Lamps

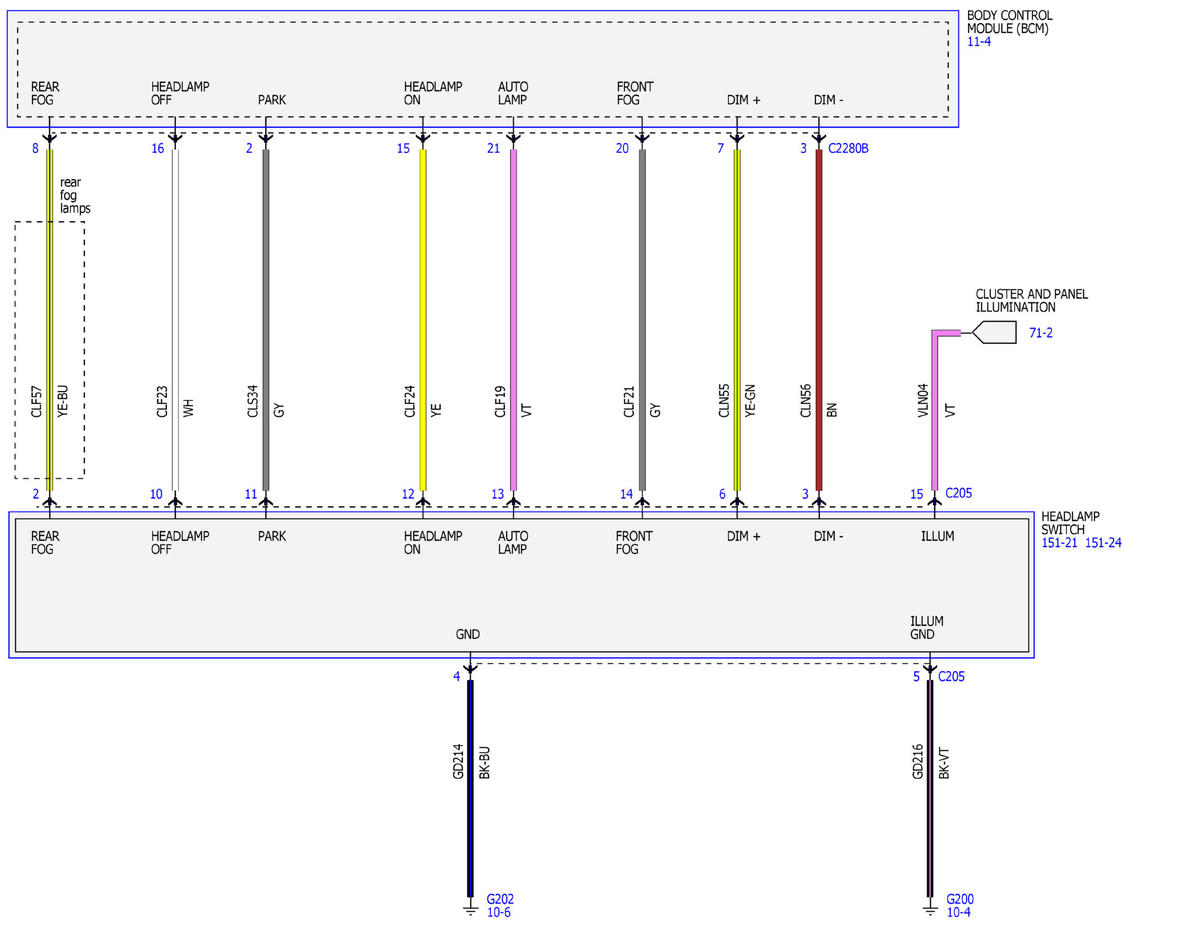

Fig 1: Parking, Rear And License Lamps Wiring Diagrams (1 Of 8)
GFDWR141743Courtesy of FORD MOTOR COMPANY

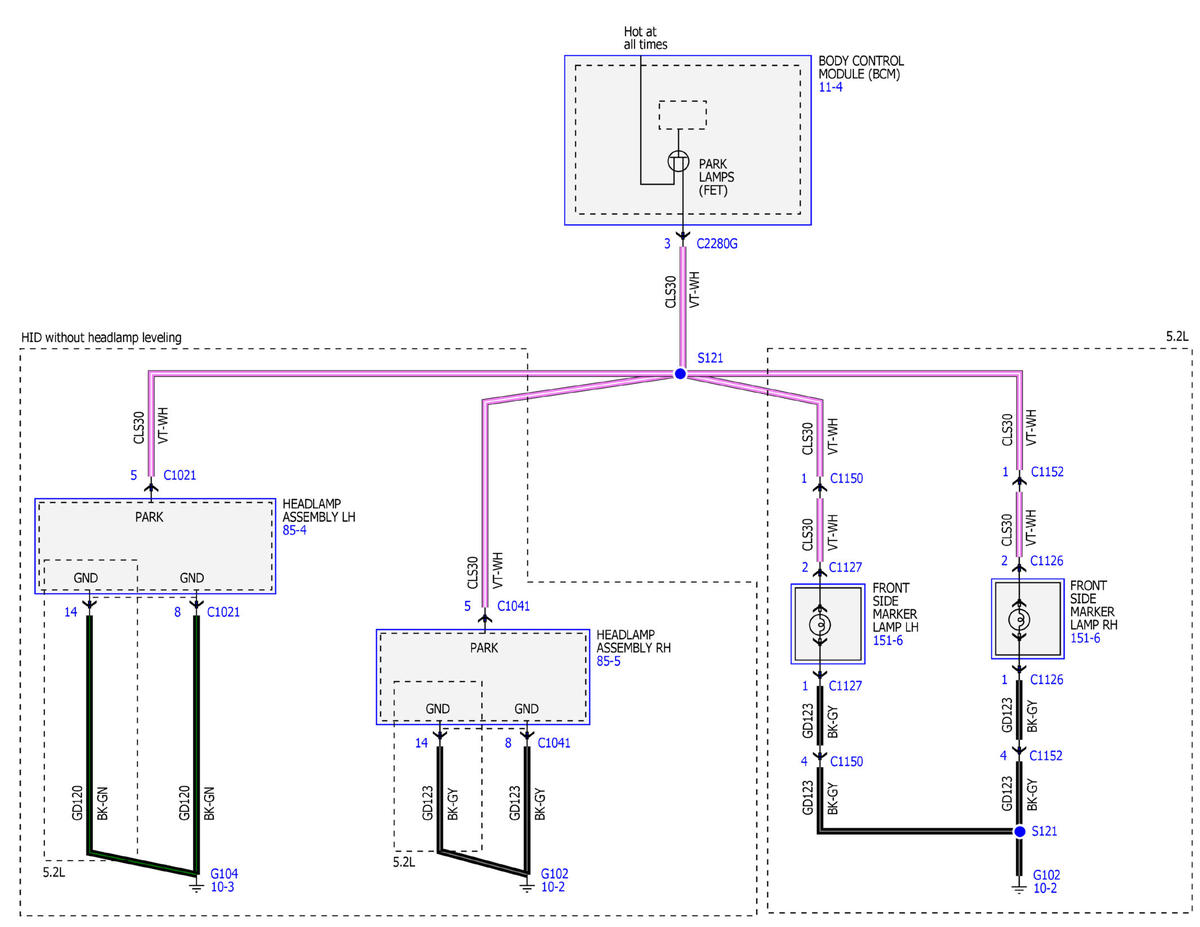

Fig 2: Parking, Rear And License Lamps Wiring Diagrams (2 Of 8)
GFDWR141744Courtesy of FORD MOTOR COMPANY

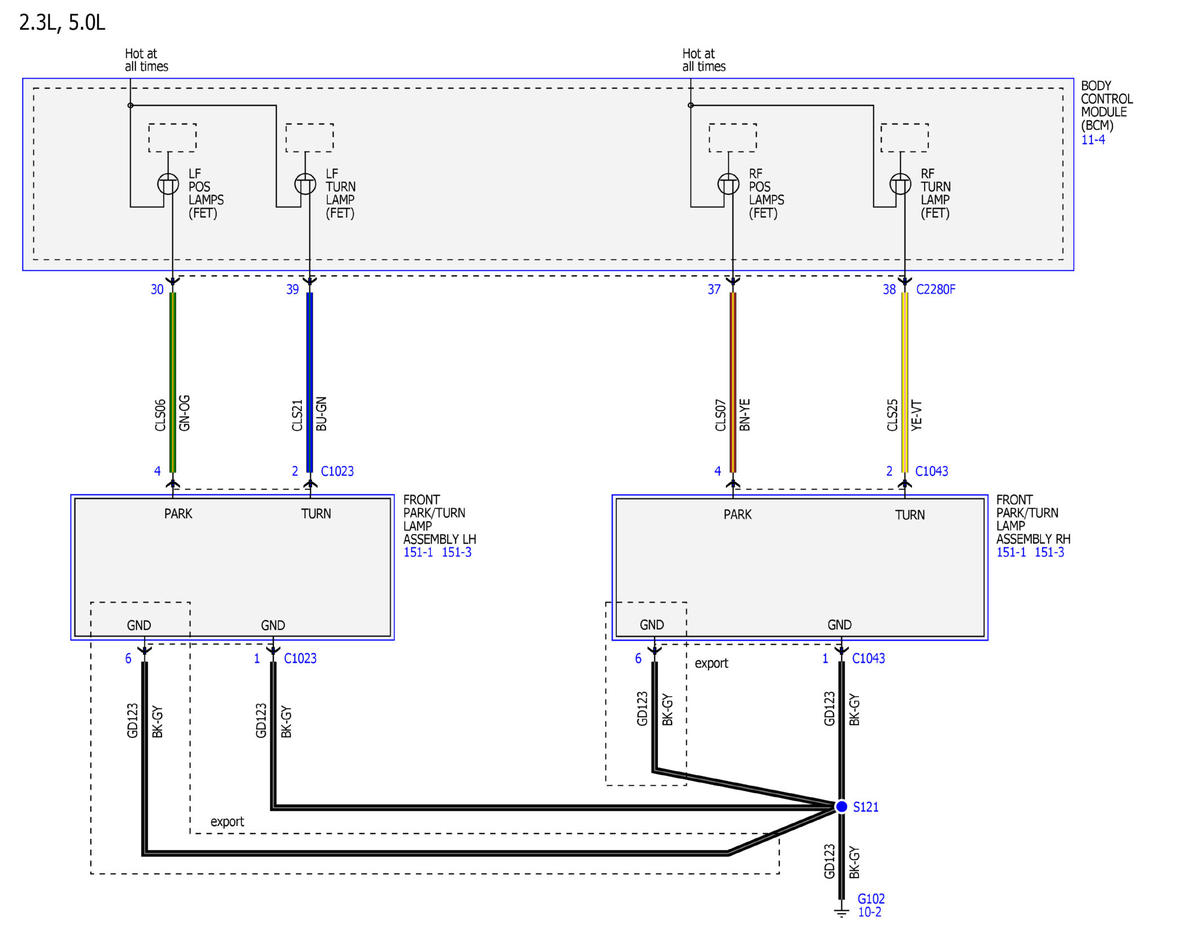

Fig 3: Parking, Rear And License Lamps Wiring Diagrams (3 Of 8)
GFDWR141745Courtesy of FORD MOTOR COMPANY

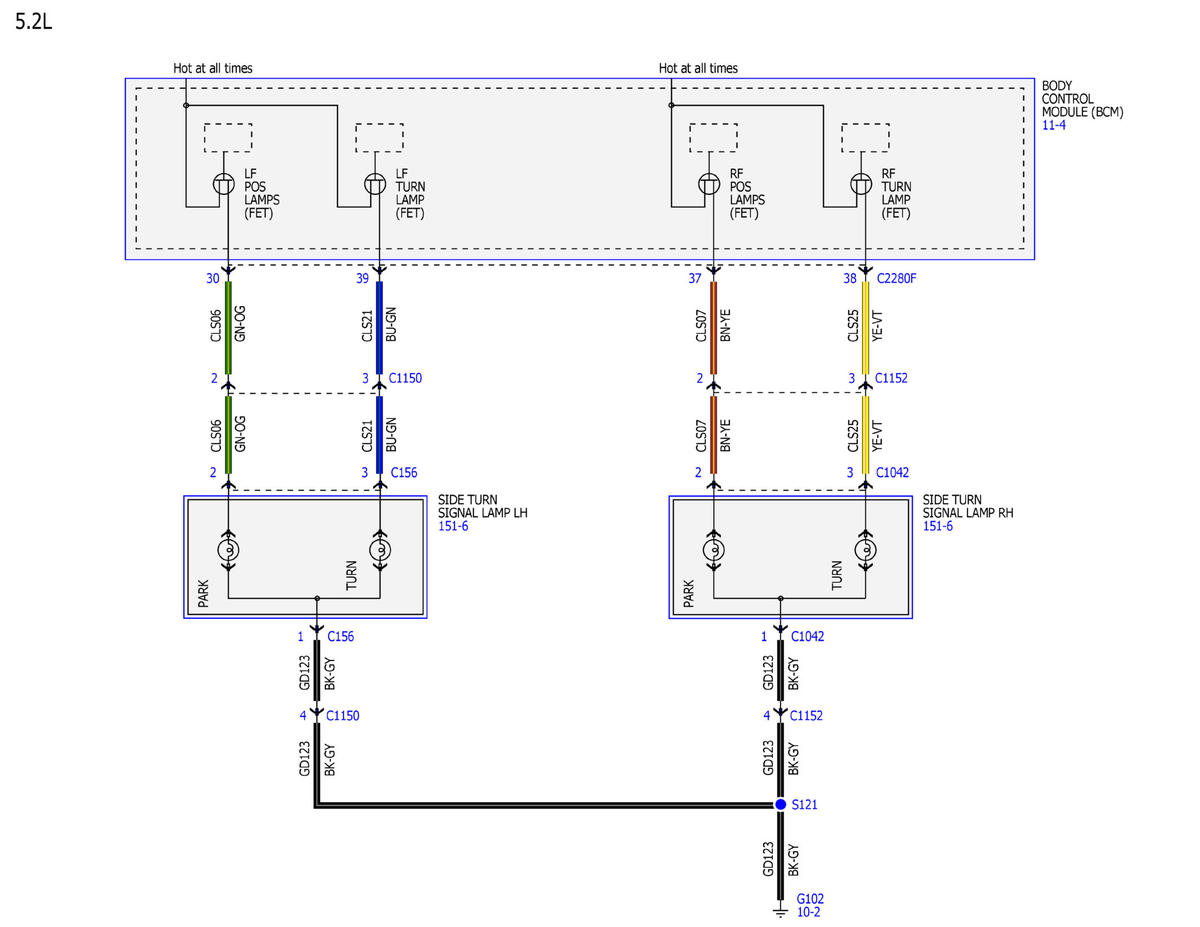

Fig 4: Parking, Rear And License Lamps Wiring Diagrams (4 Of 8)
GFDWR141746Courtesy of FORD MOTOR COMPANY

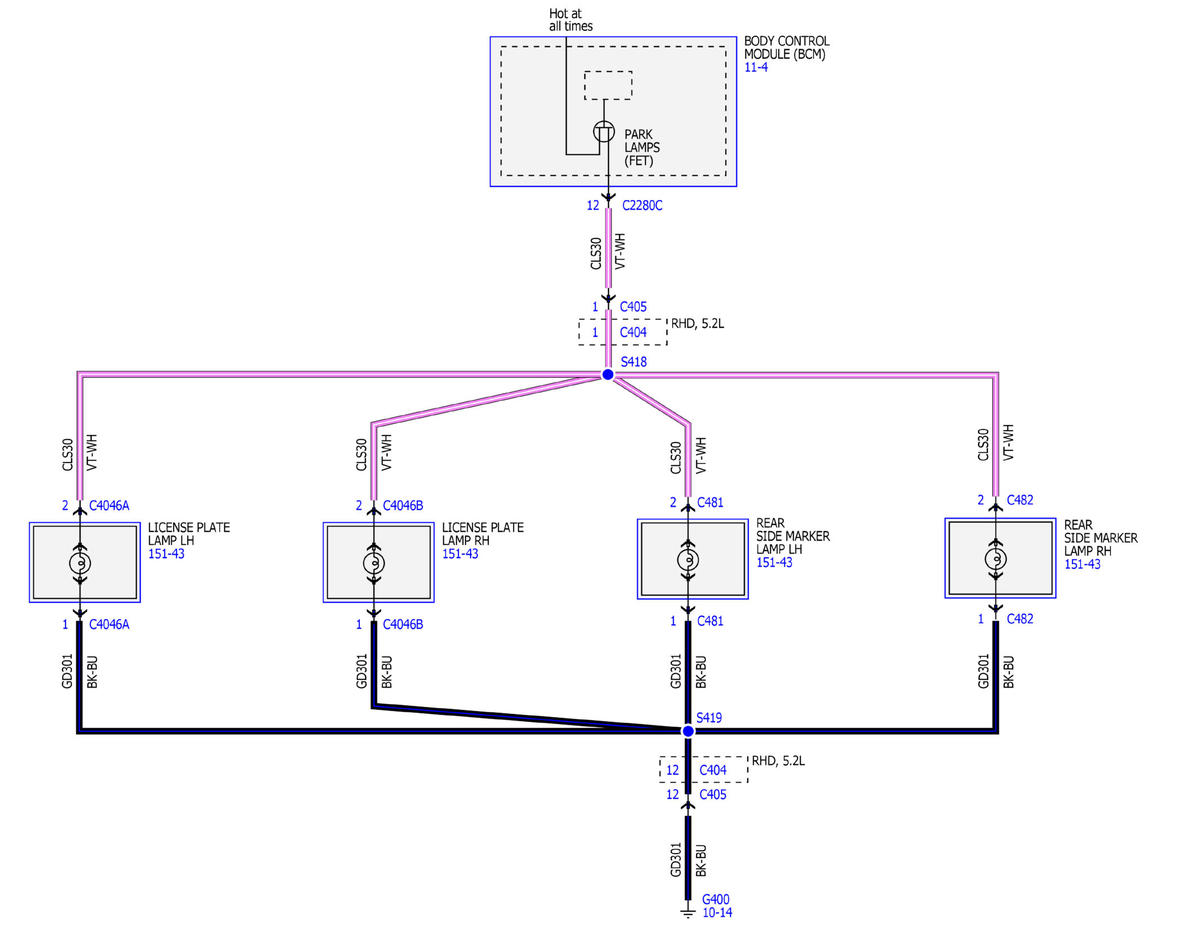

Fig 5: Parking, Rear And License Lamps Wiring Diagrams (5 Of 8)
GFDWR141747Courtesy of FORD MOTOR COMPANY

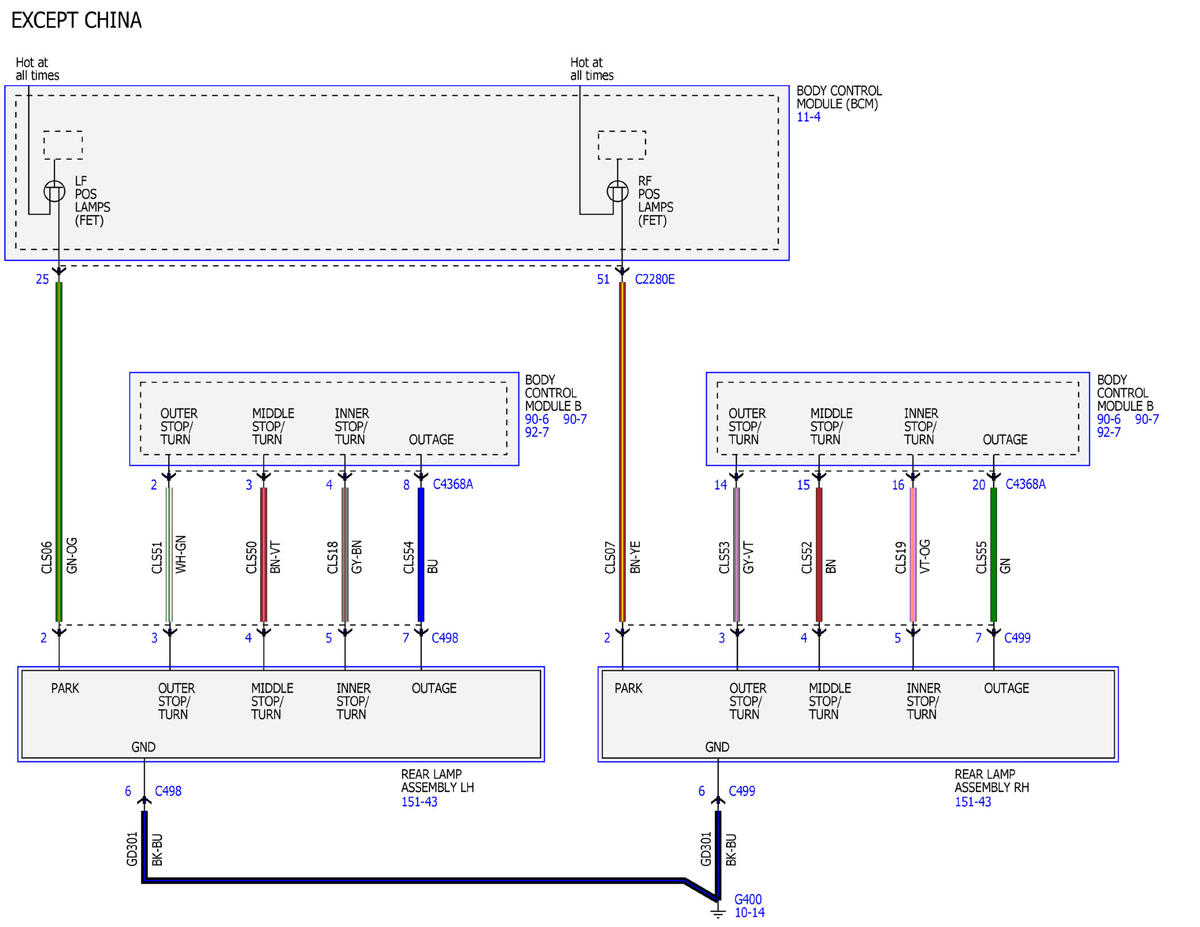

Fig 6: Parking, Rear And License Lamps Wiring Diagrams (6 Of 8)
GFDWR141748Courtesy of FORD MOTOR COMPANY

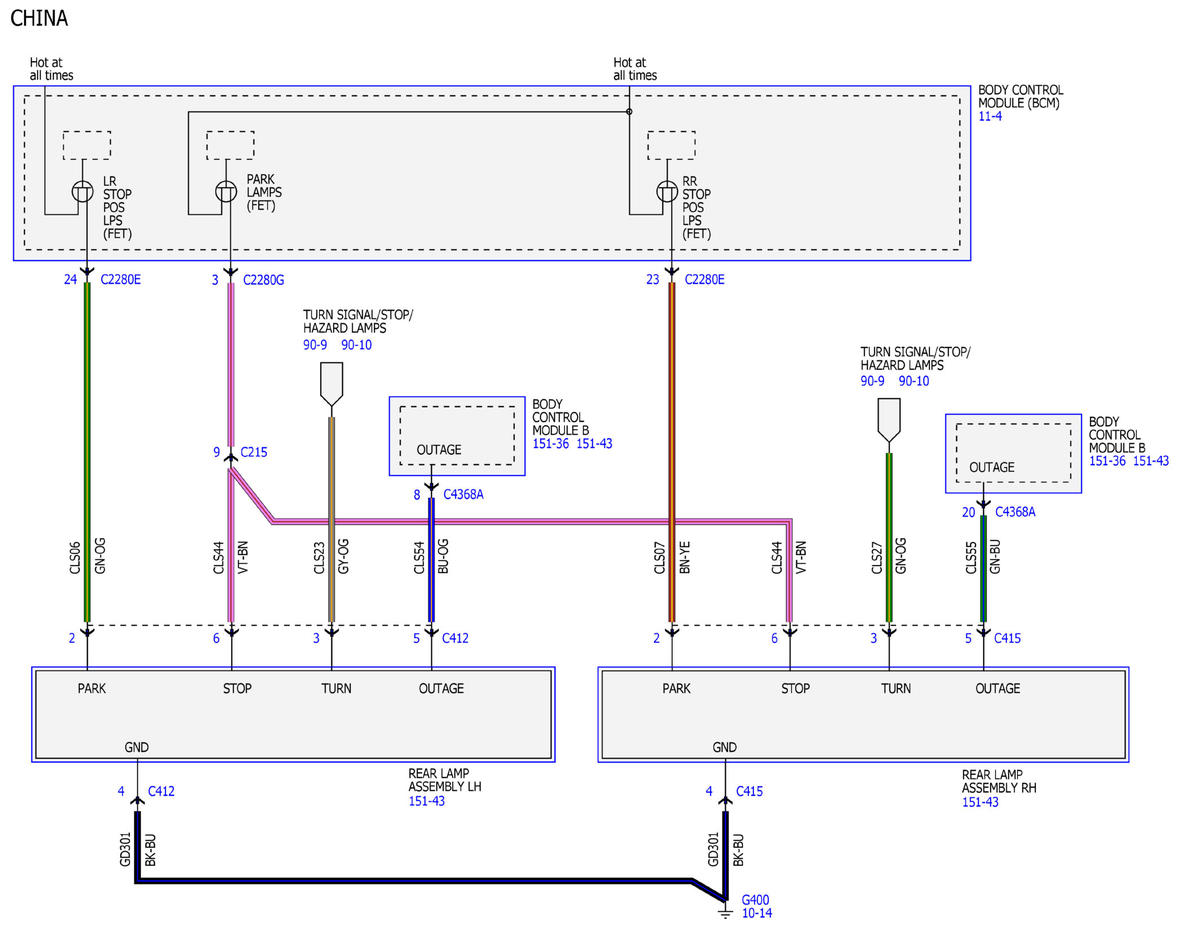

Fig 7: Parking, Rear And License Lamps Wiring Diagrams (7 Of 8)
GFDWR141749Courtesy of FORD MOTOR COMPANY

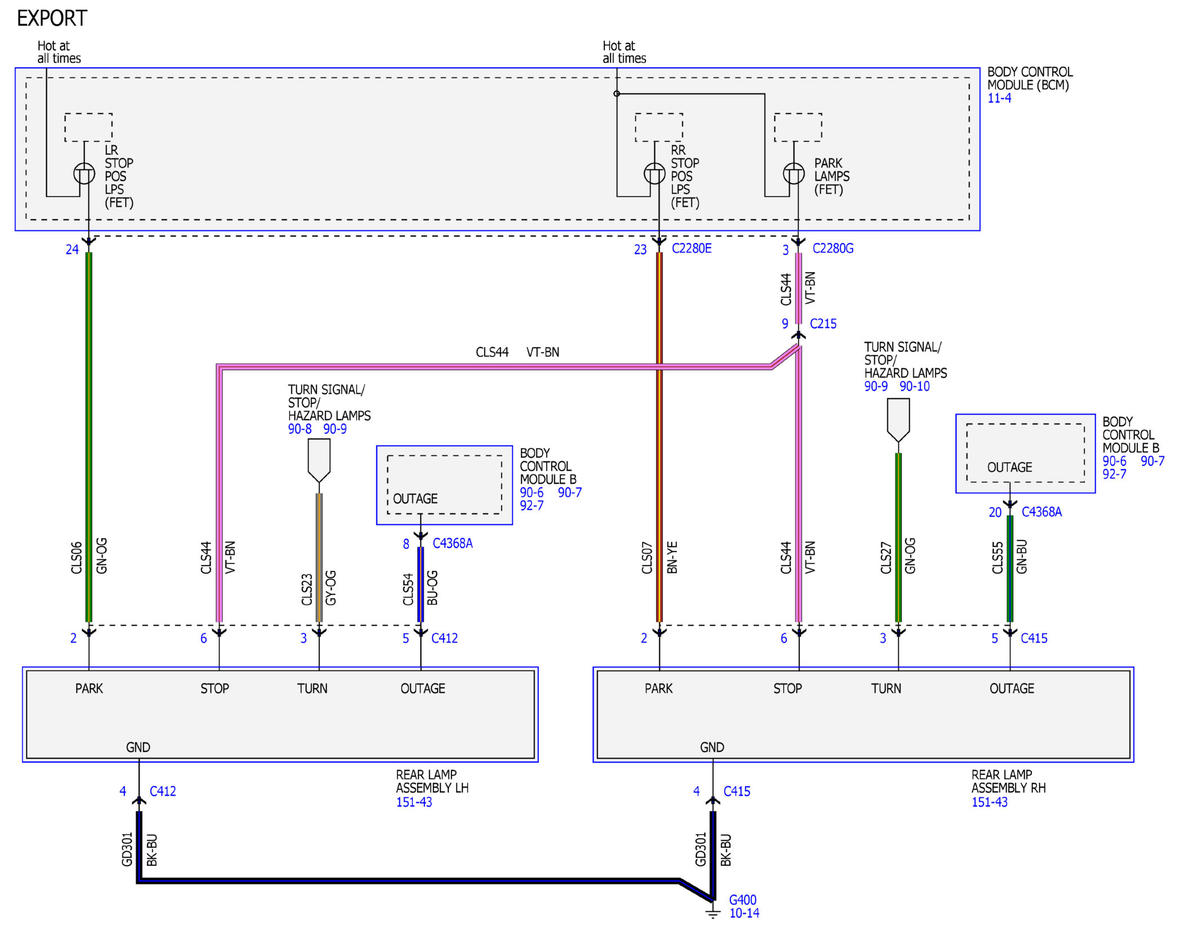

Fig 8: Parking, Rear And License Lamps Wiring Diagrams (8 Of 8)
GFDWR141750Courtesy of FORD MOTOR COMPANY
