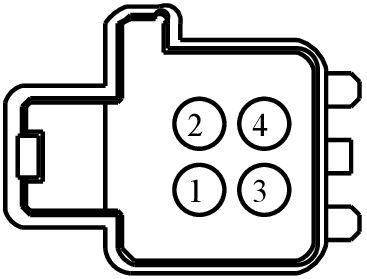

Connector End View (C4120) - ELECTRIC PARK BRAKE MOTOR ASSEMBLY

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4120	ELECTRIC PARK BRAKE MOTOR ASSEMBLY	GY	14A005	part# N/A	See Below

Pin: 2 - CCB17(BU-GN)-CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT UNLOCK (-), Gauge 14

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-BCA	EU2Z-14421-EA	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCB16 (WH-VT)	14	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT LOCK (+)	97BG-14421-BCA
2	CCB17 (BU-GN)	14	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)	97BG-14421-BCA
3	CCB18 (YE-GY)	14	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT LOCK (+)	97BG-14421-BCA
4	CCB19 (GN-BU)	14	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)	97BG-14421-BCA

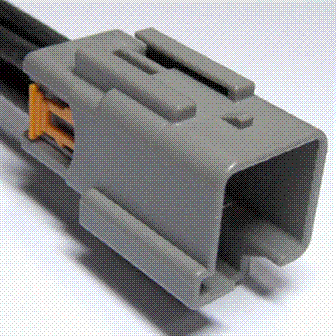

Available Pigtail Kits

Pigtail Kit Part Number WPT-1143

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BPA

Gauge:

10

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Switch - Seat Lumbar
