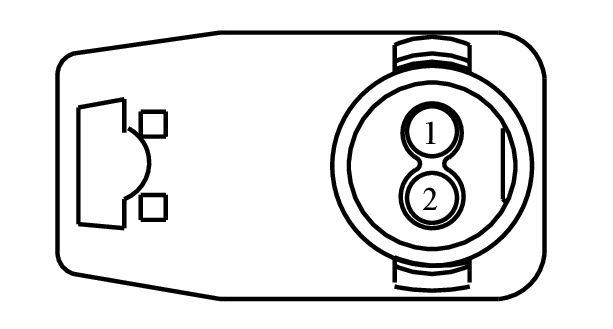

Connector End View (C3065) - FRONT SAFETY BELT ANCHOR AND PRETENSIONER LH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3065 | FRONT SAFETY BELT ANCHOR AND PRETENSIONER LH | 14A005 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| PREASSY | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR120 (BU-OG) | 22 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE + | PREASSY | ||||
| 2 | RR120 (BN-GN) | 22 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE - | PREASSY | ||||
