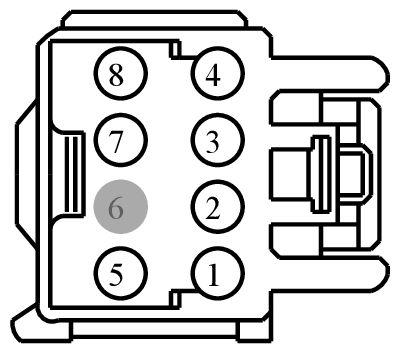

Connector End View (C3039) - FRONT SEAT BACKREST BLOWER MOTOR RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3039 | FRONT SEAT BACKREST BLOWER MOTOR RH | 14D233 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-ACB | Not Available | |
| 97BG-14474-ABB | DU2Z-14474-DA | 1.50 |
| 97BG-14474-AAB | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS06 (BU-BN) | 14 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | 97BG-14474-ACB | ||||
| 2 | RHS06 (WH) | 14 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER - | 97BG-14474-ACB | ||||
| 3 | CHS08 (BN-YE) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | 97BG-14474-ABB | ||||
| 4 | RHS08 (VT-WH) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | 97BG-14474-ABB | ||||
| 5 | VHS36 (YE-BU) | 20 | SENSOR - BACK TEMP. PASSENGER | 97BG-14474-AAB | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VHS21 (BU-WH) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL | 97BG-14474-AAB | ||||
| 8 | RHS20 (GN-BU) | 20 | CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. | 97BG-14474-AAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1128
Service Part Number:
3U2Z-14S411-BCB
Gauge:
16
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Mirror - Sideview
- Solenoid - Brake Shift Park Interlock
- Switch - Headlamp
- Switch - Power Window - Quarter Glass
- Switch - Sliding Door Contact
