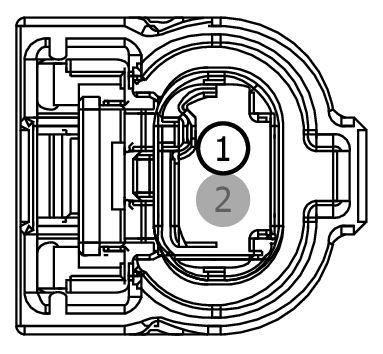

Connector End View (C1671) - VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1671	VARIABLE CAMSHAFT TIMING 12 (VCT12) SOLENOID	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	EU5T-14474-GAB
2	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
