Connector End View (C1625) - CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1625	CAMSHAFT POSITION BANK 2 SENSOR 2 (CMP22)	12C508			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14474-ADA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION)	97BG-14474-ADA
2	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) +	97BG-14474-ADA

Available Pigtail Kits

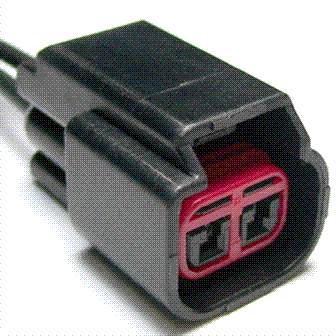

Pigtail Kit Part Number WPT-986

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SLB

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Coil - Ignition
• Lamp - License
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
