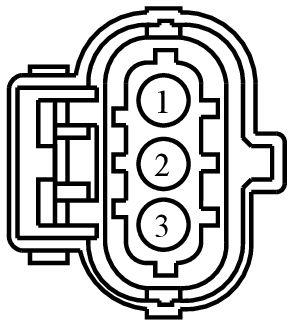

Connector End View (C1588) - TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1588	TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR	BK	14290	part# N/A	See Below

Pin: 2 - RE406(GY-VT)-CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B), Gauge 18

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
9U5T-14474-KA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE824 (YE-GN)	18	SENSOR - BOOST PRESSURE	9U5T-14474-KA
2	RE406 (GY-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	9U5T-14474-KA
3	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	9U5T-14474-KA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1068

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-JA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Manifold Absolute Pressure (MAP)

Pigtail Kit Part Number WPT-1369

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-JB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Cam Shaft Position
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Turbo Intake Pressure/Temperature
