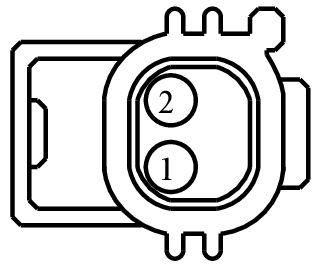

Connector End View (C1512) - KNOCK SENSOR 1 (KS1)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1512	KNOCK SENSOR 1 (KS1)	DK GY	14B485	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
97BG-14421-AHA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-)	97BG-14421-AHA
2	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+)	97BG-14421-AHA

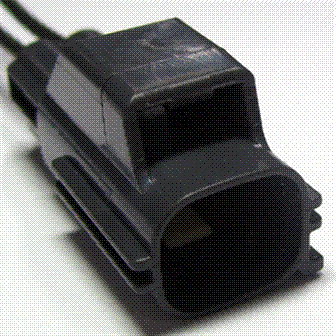

Available Pigtail Kits

Pigtail Kit Part Number WPT-987

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CZAB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Cylinder Head Temperature
• Sensor - Knock
