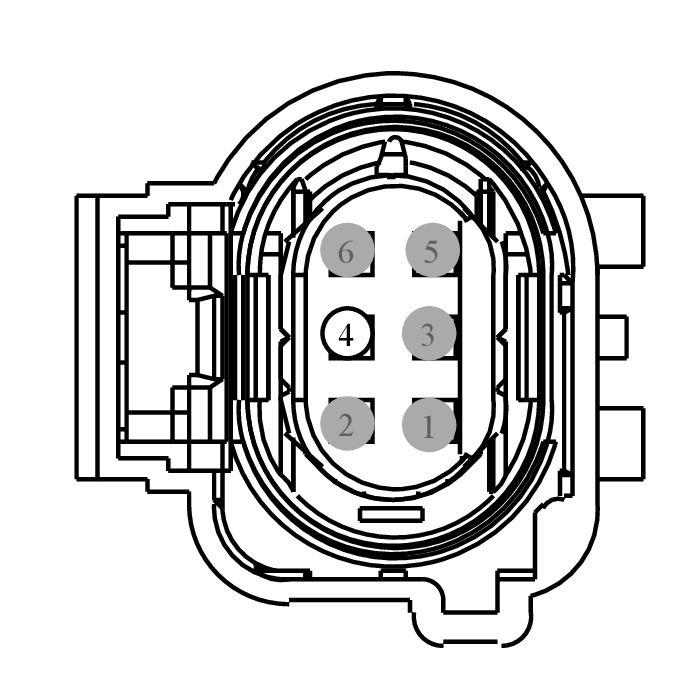

Connector End View (C1510) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1510	UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11	12C508			part# N/A	See Below

Pin: 4 - CBK02(GN)-FUSE - 2 OR CIRCUIT BREAKER (VPWR 2), Gauge 18

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
6G9T-14474-DGA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)	6G9T-14474-DGA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1549

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AHA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Sensor - O2 (HEGO/ EGO)
