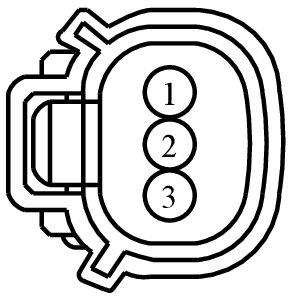

Connector End View (C1289) - INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1289	INTAKE MANIFOLD RUNNER CONTROL BANK 1 (IMRC1) SENSOR	12C508			part# N/A	See Below

Pin: 2 - VE742(BU-WH)-SENSOR - INTAKE PORT DEACT VALVE POSITION, Gauge 20

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Terminal Part Number	Service Part Number	Size
7C3T-14474-FA	DU2Z-14474-DA	1.50
7C3T-14474-GA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	7C3T-14474-GA
2	VE742 (BU-WH)	20	SENSOR - INTAKE PORT DEACT VALVE POSITION	7C3T-14474-FA
3	LE238 (GY)	18	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	7C3T-14474-GA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1261

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-MA

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
