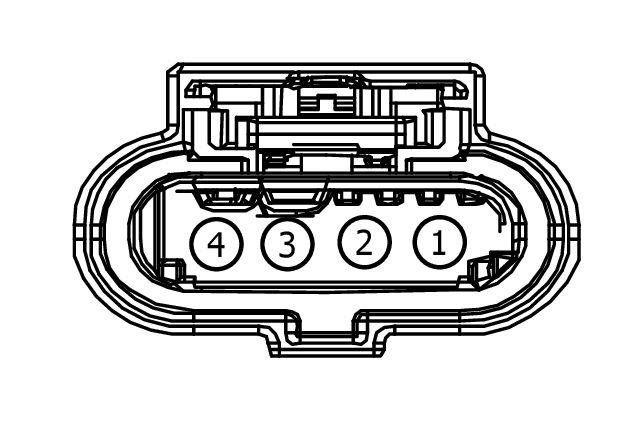

Connector End View (C1257) - FUEL RAIL PRESSURE TEMPERATURE (FRPT) SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1257 | FUEL RAIL PRESSURE TEMPERATURE (FRPT) SENSOR | 12C508 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-FAB | Not Available | |
| EU5T-14474-GAB | KU2Z-14474-CA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE238 (GY) | 18 | CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + | EU5T-14474-GAB | ||||
| 2 | RE454 (YE-GN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | EU5T-14474-FAB | ||||
| 3 | VE761 (BN-BU) | 18 | SENSOR - FUEL LOW PRESSURE (FLPS) | EU5T-14474-GAB | ||||
| 4 | VE728 (GN) | 18 | SENSOR - FUEL RAIL TEMPERATURE (FRT) | EU5T-14474-GAB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1508
Service Part Number:
JU2Z-14S411-CA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Sensor - Differential Pressure
- Sensor - Fuel Rail Pressure
