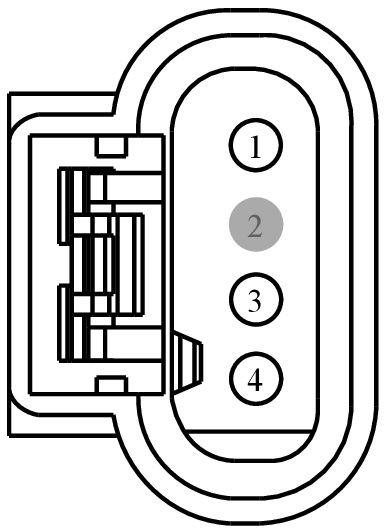

Connector End View (C1217) - CHARGE AIR COOLER (CAC) COOLANT PUMP
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1217 | CHARGE AIR COOLER (CAC) COOLANT PUMP | BK | 14B060 | part# N/A | See Below |
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-TA | Not Available | |
| AU5T-14474-SA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD123 (BK-GY) | 16 | GROUND - FENDER FRONT RIGHT | AU5T-14474-SA | ||||
| 2 | - () | * | Not Used | N/A | ||||
| 3 | CE193 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER COOLANT PUMP CONTROL (CACCPC) | AU5T-14474-TA | ||||
| 4 | ZA333 (WH-BU) | 20 | TEMPORARY NO. - 33 | AU5T-14474-TA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1309
Service Part Number:
CU2Z-14S411-AYA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Motor - Active Grill Shutter
