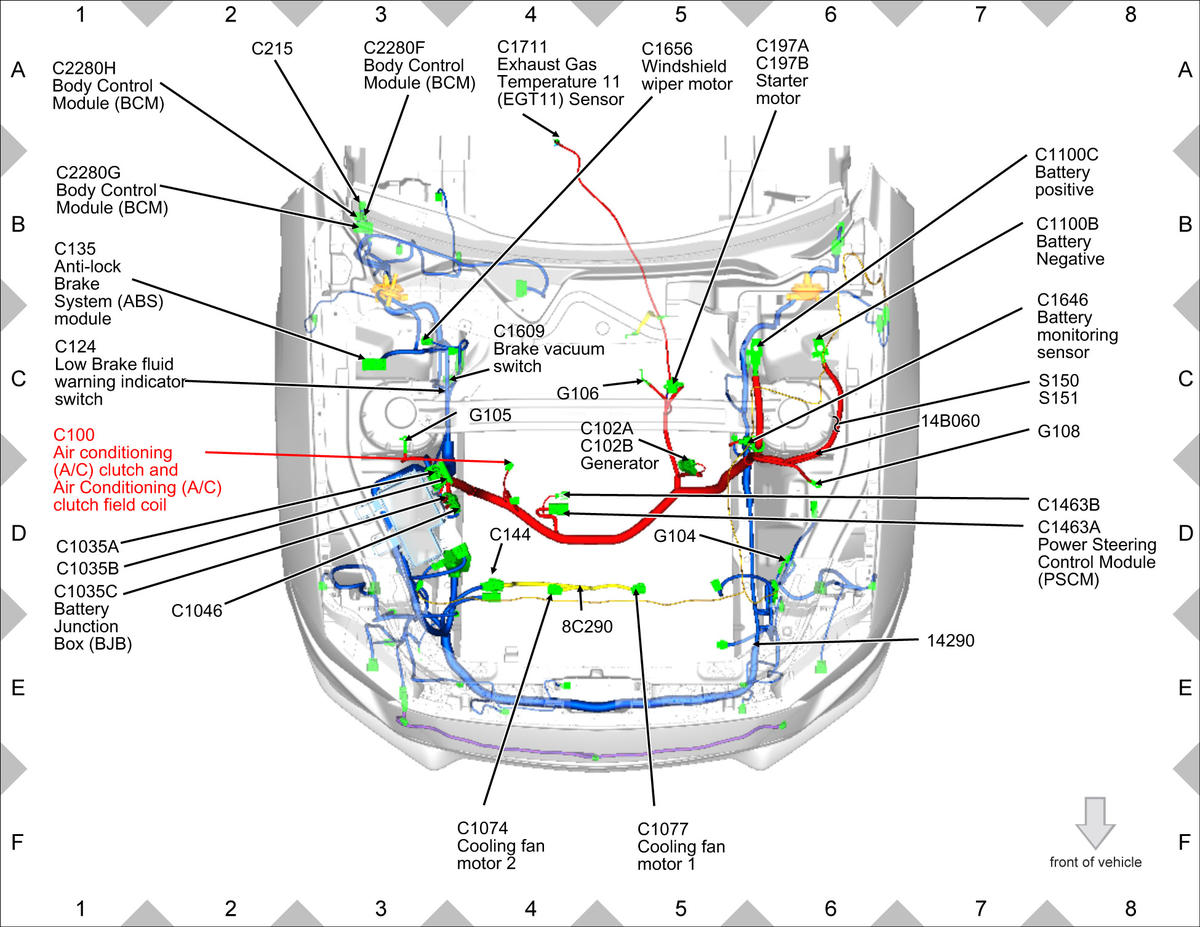

Air conditioning (AC) Clutch And Air Conditioning (AC) Clutch Field Coil (2.3L)

GFDWR139383

Courtesy of FORD MOTOR COMPANY
