Strut Tower Cross Brace - GT500: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Support the hood with a commercially available hood prop.

Open the hood.

Courtesy of FORD MOTOR COMPANY
Disconnect the lower hood support and position aside the hood strut.

Courtesy of FORD MOTOR COMPANY
Remove the cowl panel grille. Refer to: Cowl Panel Grille

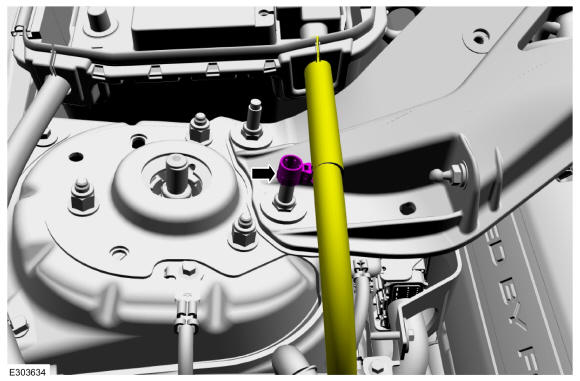

Detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

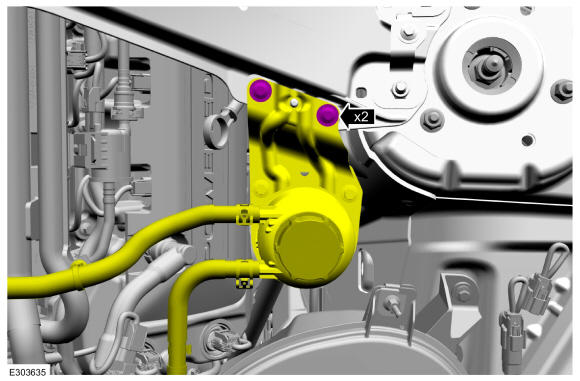

Remove the bolts, then move the coolant reservoir out of the way.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

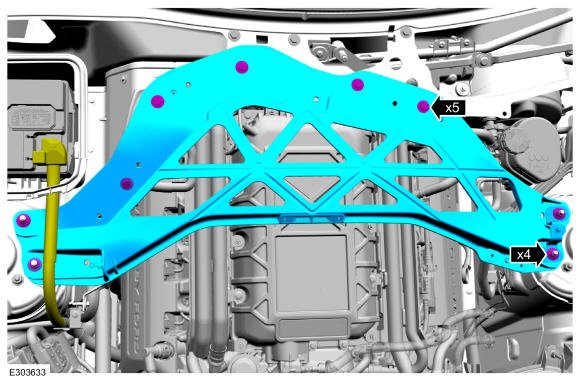

Remove the nuts, and the bolts, then remove the strut tower cross brace.
Torque

:Tighten the nuts to: 41 lb.ft (55 Nm)

Tighten the bolts to: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
