Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.

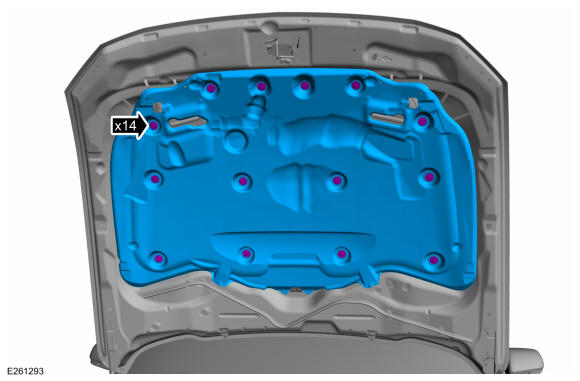

  1. Remove the retainers and hood insulation.
    GFD605017Courtesy of FORD MOTOR COMPANY

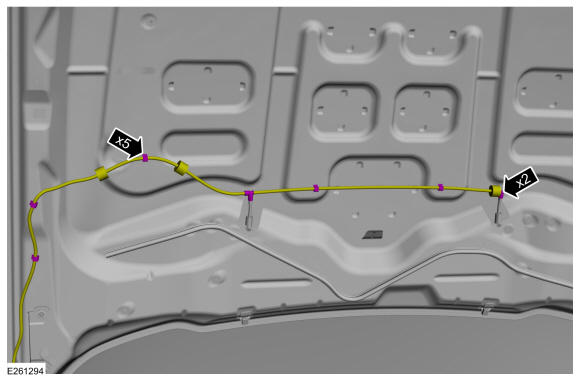

  2. Detach the windshield washer hose retainers and couplings.
    GFD605018Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only necessary when installing a new component.

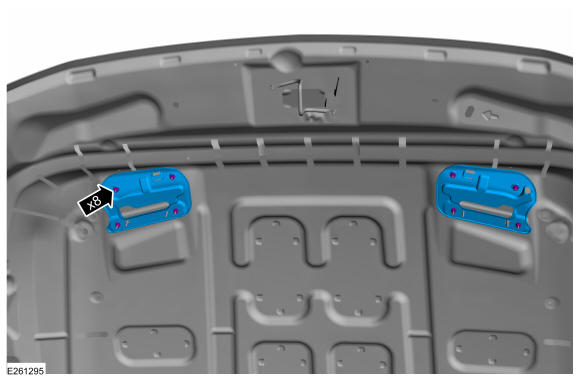

    Remove the nuts and the brackets.

    Torque

    : 27 lb.in (3 Nm)

    GFD605019Courtesy of FORD MOTOR COMPANY
  4. NOTE: This step is only necessary when installing a new component.

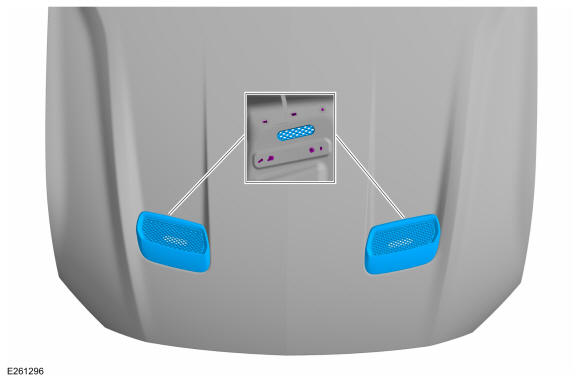

    Remove the scoop assemblies.

    GFD605020Courtesy of FORD MOTOR COMPANY
  5. NOTE: This step is only necessary when installing a new component.

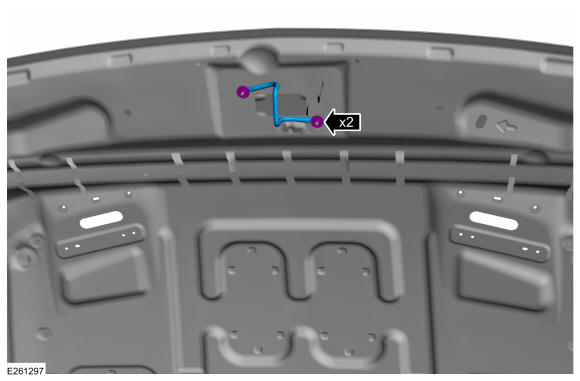

    Remove the striker latch to hood bolts and the striker latch.

    Torque

    : 106 lb.in (12 Nm)

    GFD605021Courtesy of FORD MOTOR COMPANY
  6. NOTE: This step is only necessary when installing a new component.

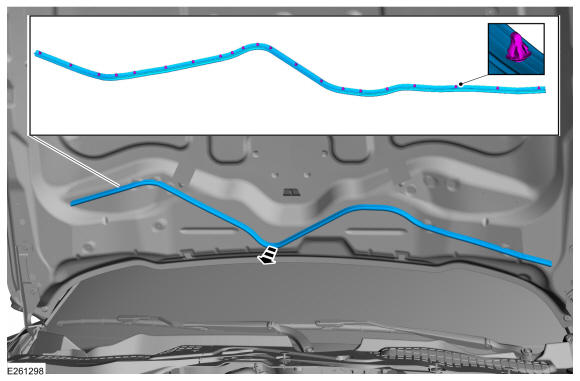

    Remove the retainers and the hood pad assembly.

    GFD605022Courtesy of FORD MOTOR COMPANY
  7. NOTE: RH side shown in illustration, LH side similar.

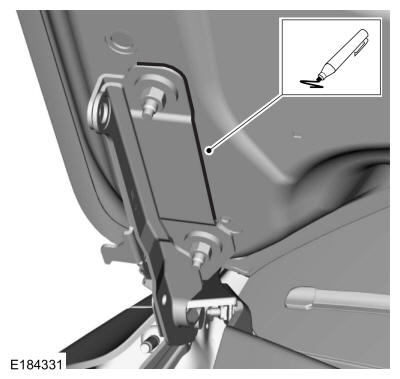

    Index-mark the hood hinge location to aid in hood installation.

    GFD605023Courtesy of FORD MOTOR COMPANY
  8. NOTE: An assistant is necessary for the removal of the hood.

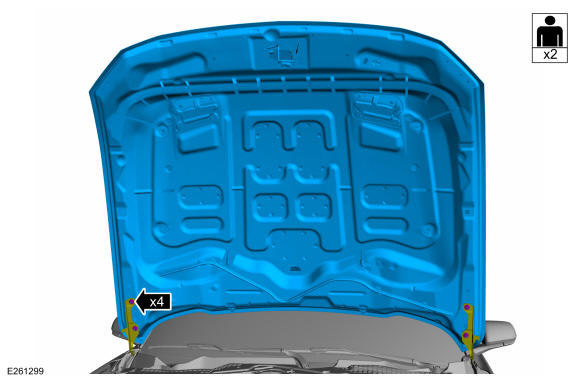

    Remove the nuts and the hood.

    Torque

    : 106 lb.in (12 Nm)

GFD605024Courtesy of FORD MOTOR COMPANY
