Hood Hinge: Removal

NOTE: Left hand (LH) side shown, right hand (RH) side similar.
  1. Remove the hood. Refer to: Hood  or Hood - GT500 .

  2. Remove the fender. Refer to: Fender .

  3. Remove the fasteners and the hood hinge.

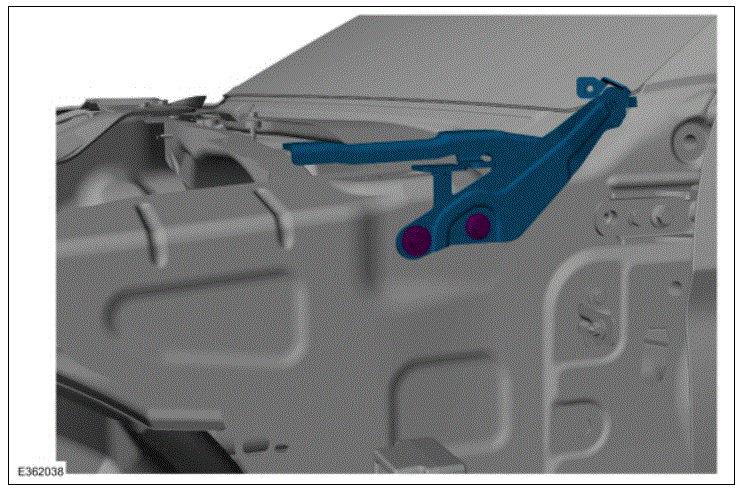

    G00615703Courtesy of FORD MOTOR COMPANY
