Hood - GT500: Removal

NOTE: Removal steps in this procedure may contain installation details.

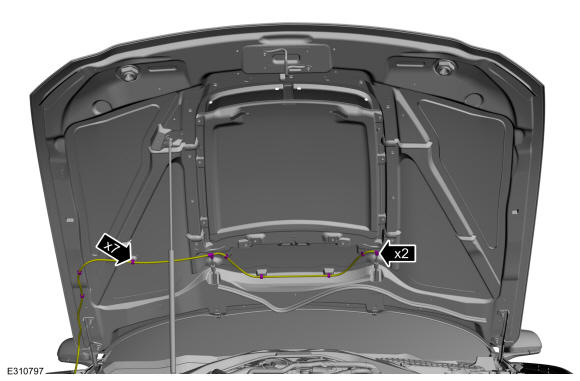

Detach the windshield washer hose retainers and couplings.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown in illustration, RH side similar.

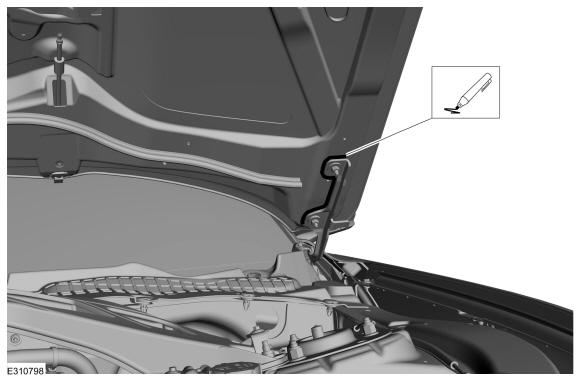

Index-mark the hood hinge location to aid in hood installation.

Courtesy of FORD MOTOR COMPANY

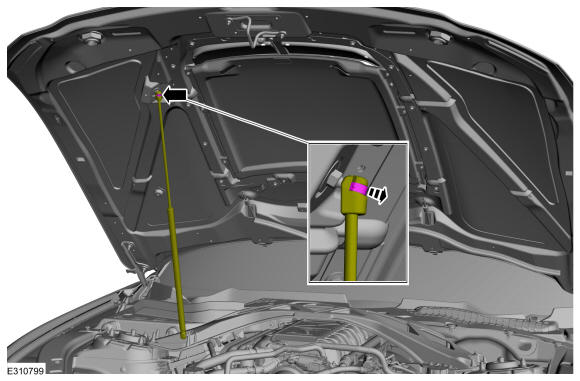

Detach the hood strut from the hood by pulling away the strut clips.

Courtesy of FORD MOTOR COMPANY

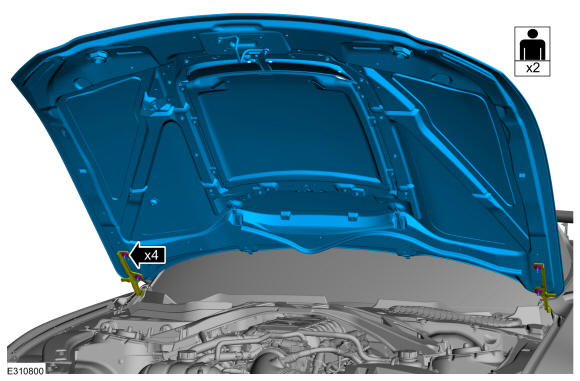

NOTE: An assistant is necessary for the removal of the hood.

Remove the nuts and the hood.

Torque

: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

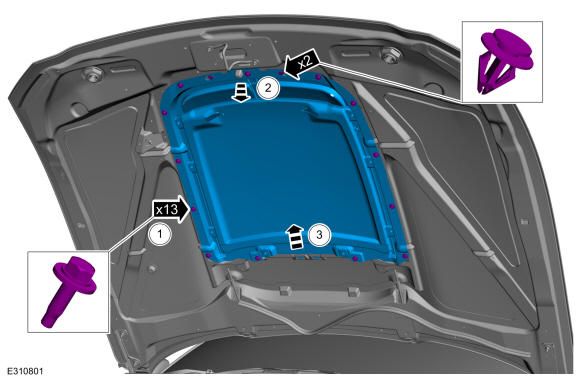

1. Remove the bolts.
  Torque

  : 44 lb.in (5 Nm)
2. Pull out the front edge of hood scoop and remove the pin type retainers.
3. Slide up and remove the hood scoop assembly.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

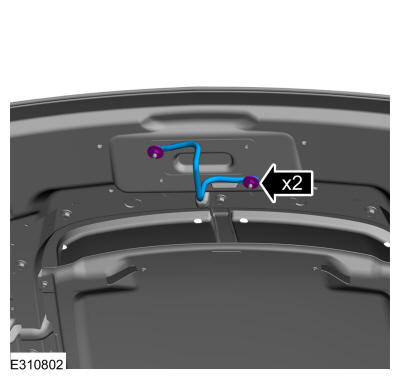

Remove the striker latch to hood bolts and the striker latch.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

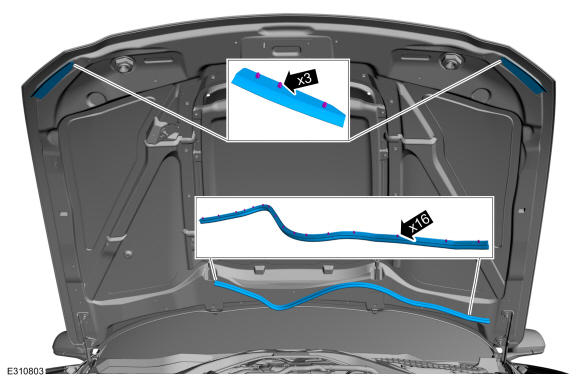

Remove the retainers and the hood pad assembly.

Courtesy of FORD MOTOR COMPANY
