Fender Splash Shield - GT500: Removal

NOTE: LH side shown in illustration, RH side similar.

Remove the wheel and tire. Refer to: Wheel and Tire
If equipped, on both sides

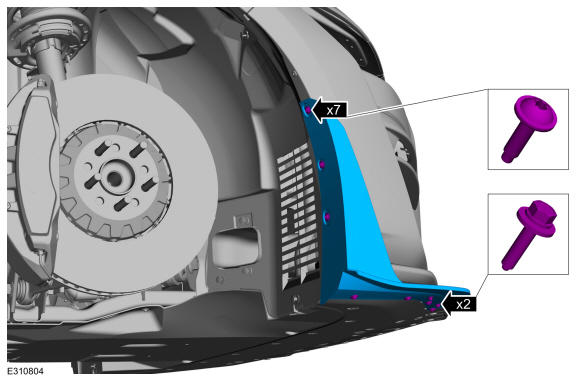

- Remove the fasteners and the front bumper side extension.
  Torque

  : 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

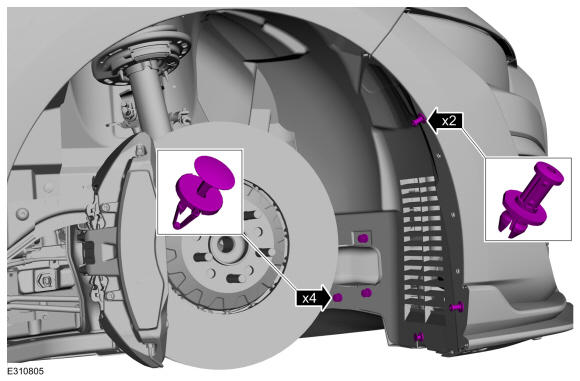

Remove the retainers.

Courtesy of FORD MOTOR COMPANY

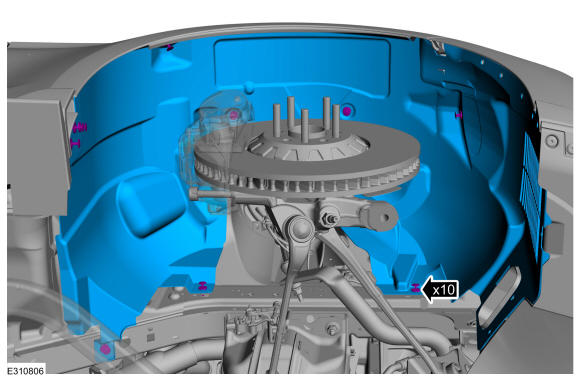

Remove the retainers and the fender splash shield.

GFD605006

Courtesy of FORD MOTOR COMPANY
