Cowl Panel Grille: Removal

NOTE: LHD shown in illustration, RHD similar.
  1. Remove the wiper pivot arms. Refer to: Windshield Wiper Pivot Arm - LHD

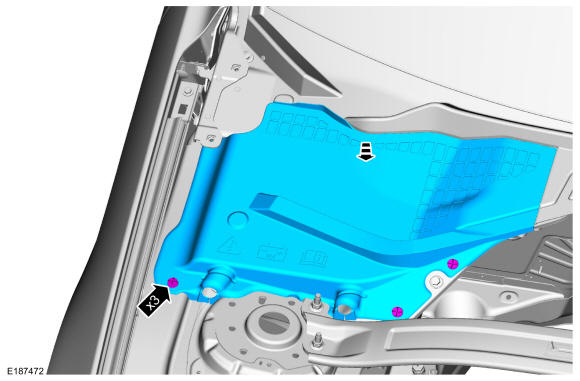

  2. Remove the retainers and the battery cover.
    GFD604988Courtesy of FORD MOTOR COMPANY

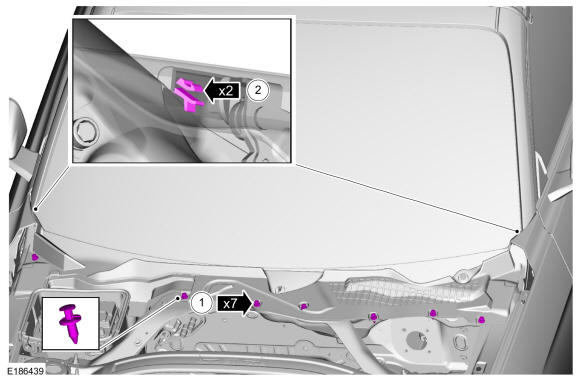

  3. Remove the retainers and the clips.

    1. Remove the retainers.
    2. Depress and remove the clips.

    GFD604989Courtesy of FORD MOTOR COMPANY

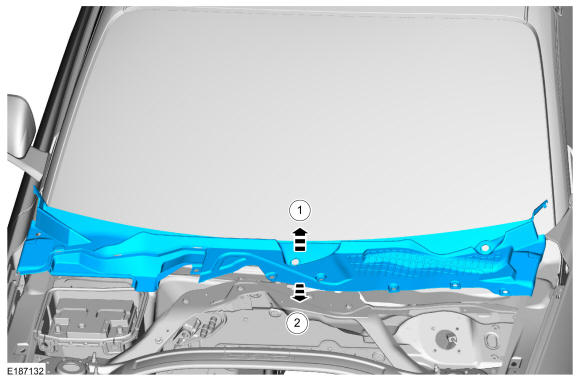

    1. Lift the cowl panel grille up.
    2. Pull the cowl panel grille out and remove.
GFD604990Courtesy of FORD MOTOR COMPANY
