Rear Bumper: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover . Refer to: Rear Bumper Cover . Refer to: Rear Bumper Cover - GT500/Mach 1

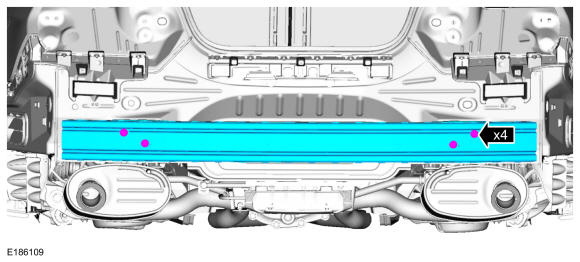

  2. Remove the bolts and the rear bumper.

    Torque

    : 18 lb.ft (25 Nm)

GFD605683Courtesy of FORD MOTOR COMPANY
