Rear Bumper Cover - GT500 Mach 1: Removal

All vehicles

1. Remove the rear wheels and tires. Refer to: Wheel and Tire
2. Remove the bolts.

   Torque

   : 22 lb.ft (30 Nm)

   Courtesy of FORD MOTOR COMPANY

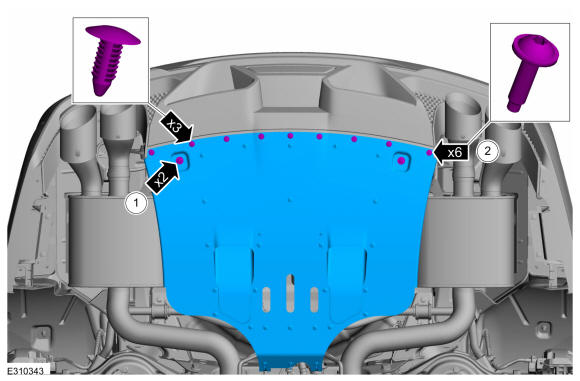

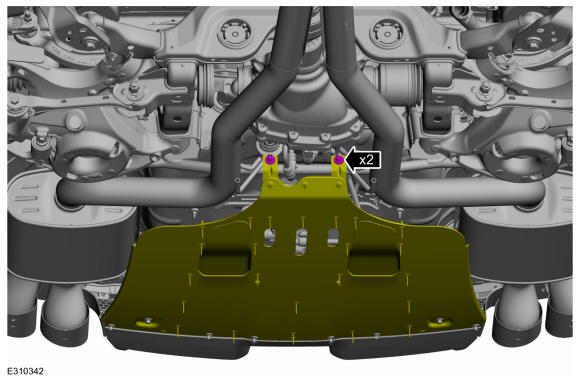

3. Remove the trim pins, the bolts and the rear underbody panel.

   Torque

   :1: 80 lb.in (9 Nm)

   2: 53 lb.in (6 Nm)

   Courtesy of FORD MOTOR COMPANY

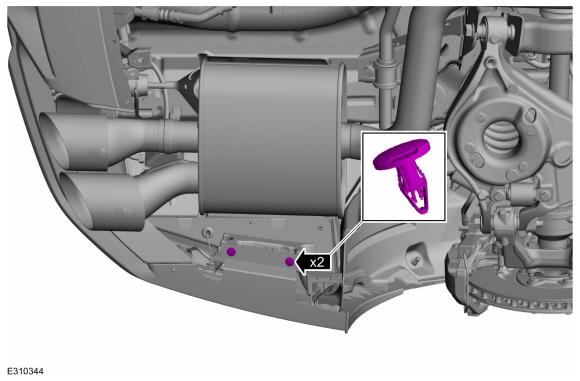

4. On both sides. Remove the push pins.

   Courtesy of FORD MOTOR COMPANY

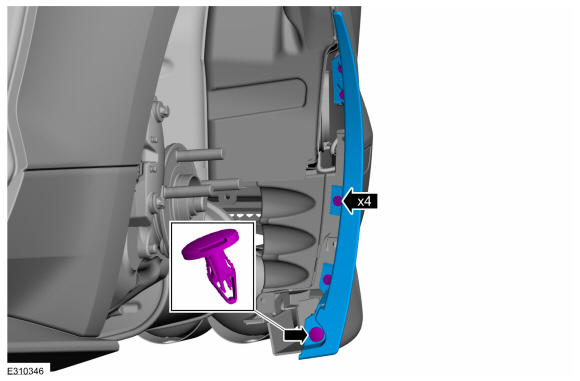

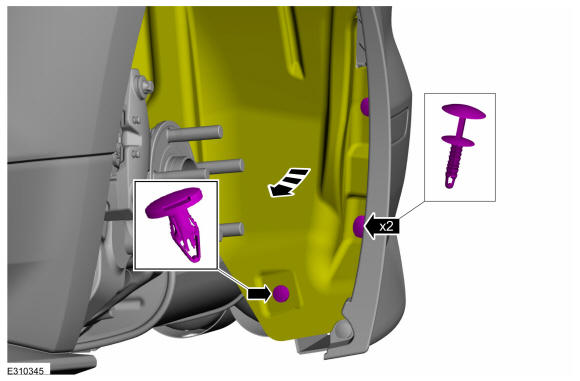

5. On both sides. Remove the push pins and position the fender liner aside.

   Courtesy of FORD MOTOR COMPANY

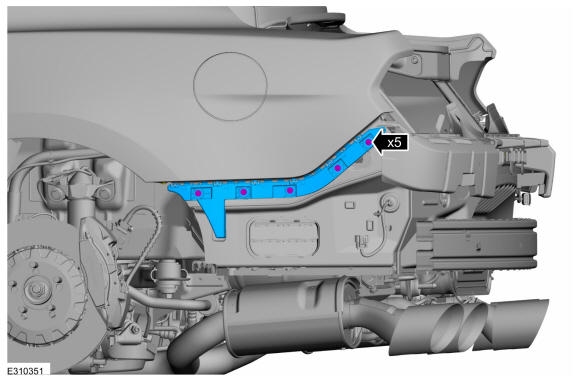

6. On both sides. Remove the push pin, the screws and the fender lip moulding.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

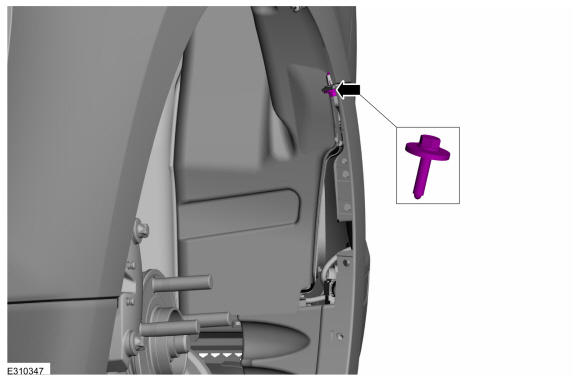

7. On both sides. Remove the screw.

   Torque

   : 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Remove the rear lamp assemblies. Refer to: Rear Lamp Assembly

   Vehicles with cellular phone antenna

9. NOTE: RH side cellular antenna.

   Disconnect the RH cellular antenna cable from the wiring harness and push the grommet through the vehicle body.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: LH side cellular antenna.

    Disconnect the LH cellular antenna cable from the wiring harness and push the grommet through the vehicle body.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

11. On both sides. Remove the bolt and release the tab.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

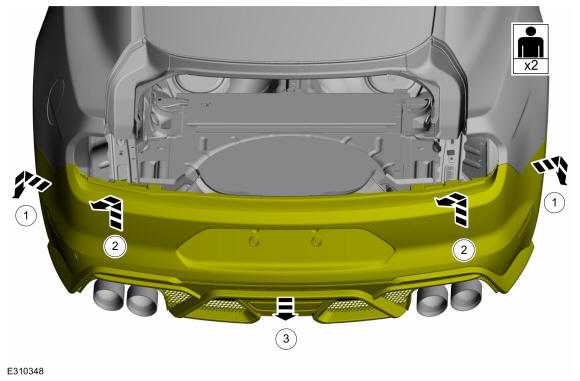

12. With the help of an assistant. Position the rear bumper cover aside for access to electrical connector.
    1. Release the sides of the rear bumper cover from the side brackets.
    2. Lift up and release the rear bumper cover from the outer rear brackets.
    3. Release the center of the rear bumper cover from the rear brackets and position aside.

    Courtesy of FORD MOTOR COMPANY

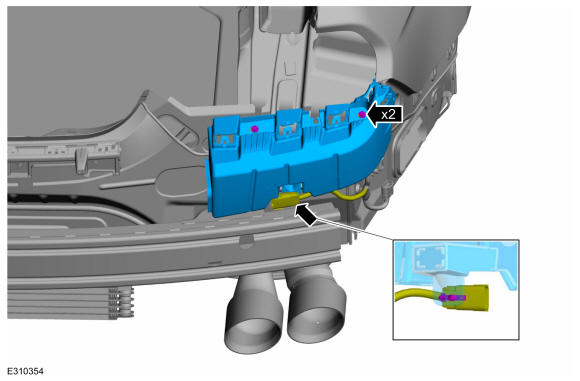

13. Disconnect the rear bumper wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

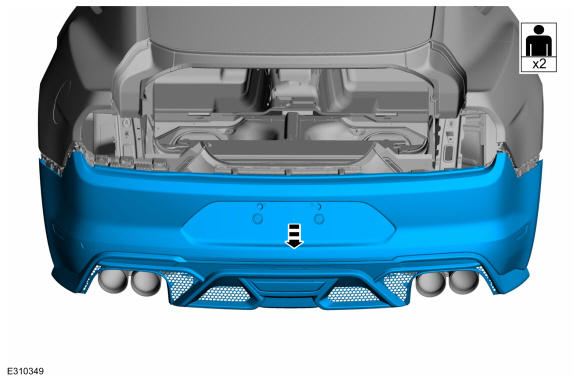

14. With the help of an assistant. Remove the rear bumper cover.

    Courtesy of FORD MOTOR COMPANY

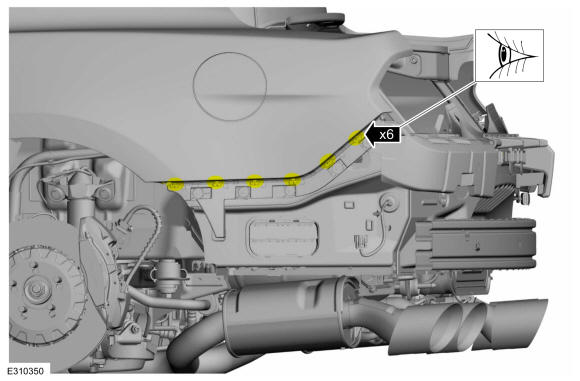

15. On both sides. Inspect the side bracket for damage.

    Courtesy of FORD MOTOR COMPANY

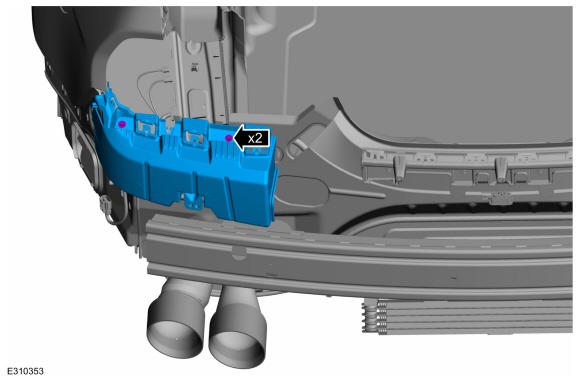

16. If required, on both sides. Remove the screws and the rear bumper cover side bracket.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

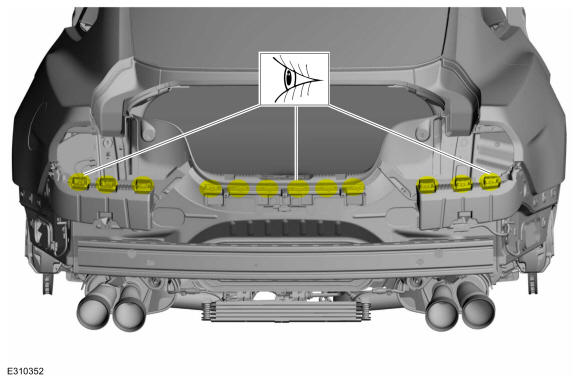

17. Inspect the rear brackets for damage.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: LH side only.

    If required. Remove the screws and the rear bumper cover outer rear bracket.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

19. NOTE: RH side only.

    If required. Remove the screws, disconnect the wiring harness retainer and remove the rear bumper cover outer rear bracket.

    Torque

    : 18 lb.in (2 Nm)

    Courtesy of FORD MOTOR COMPANY

20. If required. Remove the screws, pin-type retainer and the rear bumper cover center rear bracket.

    Torque

    : 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
