Front Bumper Cover - GT500: Removal

Remove the front wheels and tires. Refer to: Wheel and Tire

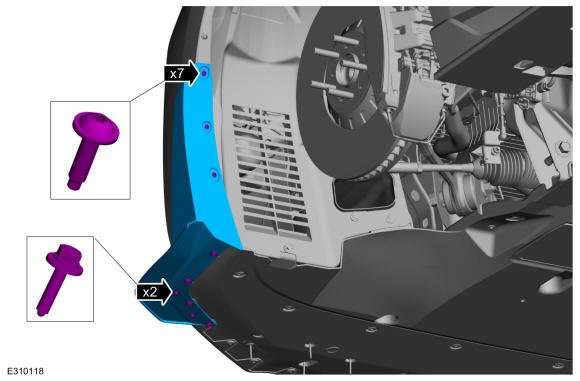

If equipped, on both sides. Remove the screws, the bolts and the splitter wickers.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

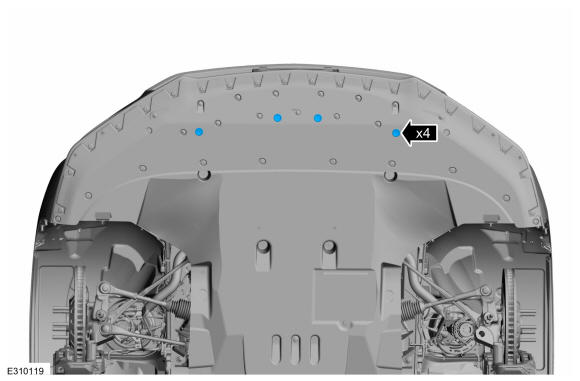

Remove the screw covers.

Courtesy of FORD MOTOR COMPANY

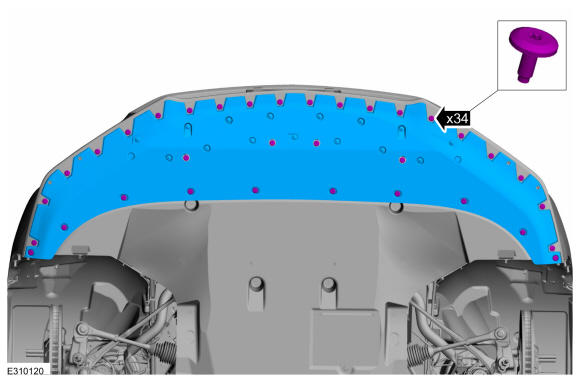

Remove the screws and the lower air splitter.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

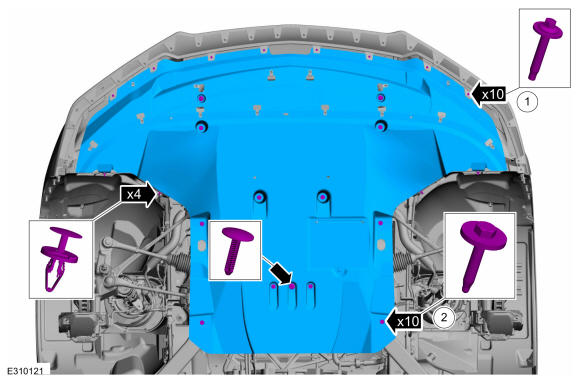

Remove the bolts, the screws, the push pins, the trim pin and the under engine closeout panel.
Torque

: 1.: 44 lb.in (5 Nm)

2.: 17 lb.in (1.9 Nm)

Courtesy of FORD MOTOR COMPANY

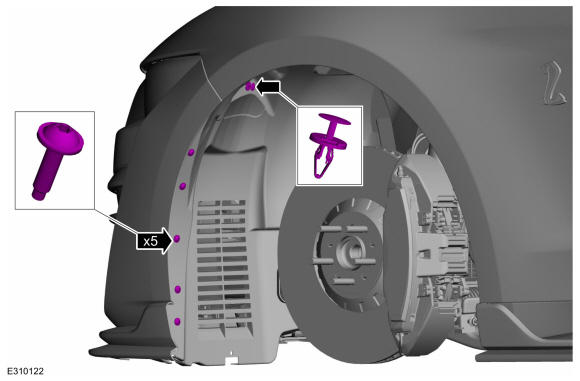

On both sides. Remove the push pin and the bolts.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

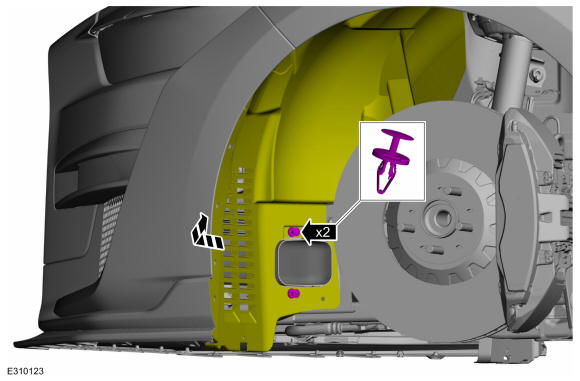

On both sides. Remove the push pins and position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

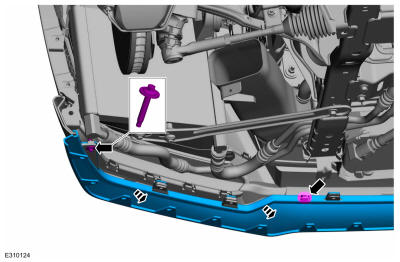

On both sides. Remove the bolt, release the tab and remove the upper air splitter.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

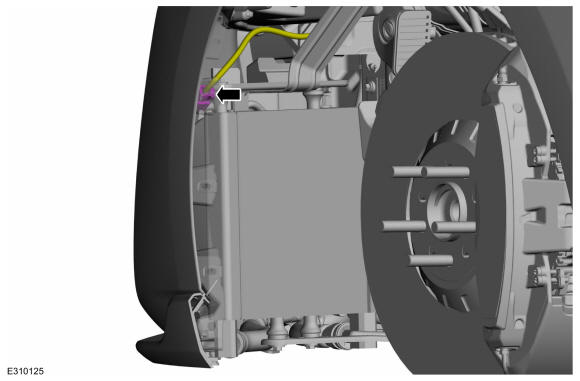

On both sides. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

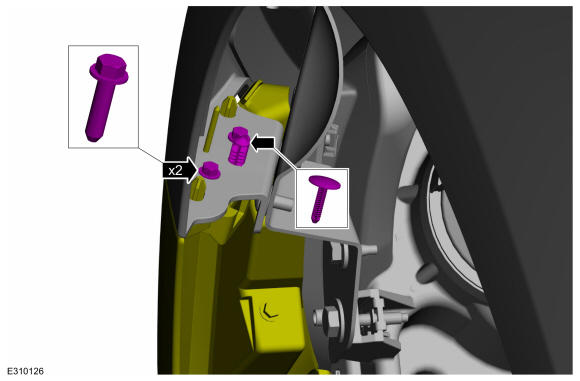

On both sides. Remove the bolts, trim pin and separate the front bumper cover from the fender bracket.
Torque

: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

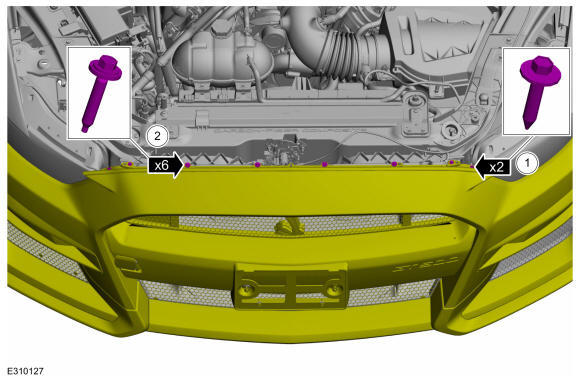

Remove the screws.
Torque

:1.: 18 lb.in (2 Nm)

2.: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY

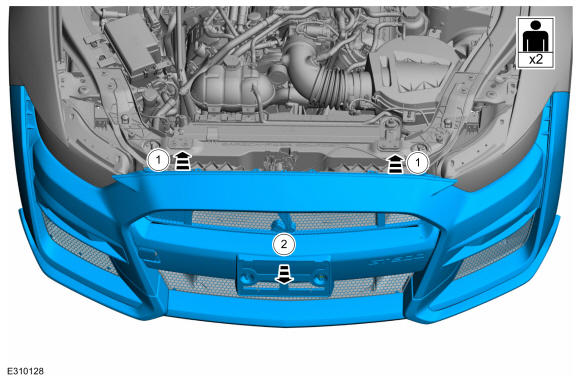

With the help of an assistant. Remove the front bumper cover.
1. Lift the front bumper cover up and off the alignment pins.
2. Pull the front bumper cover forward and off the vehicle.

Courtesy of FORD MOTOR COMPANY
