Front Bumper - GT500: Removal

Remove the front bumper cover. Refer to: Front Bumper Cover - GT500

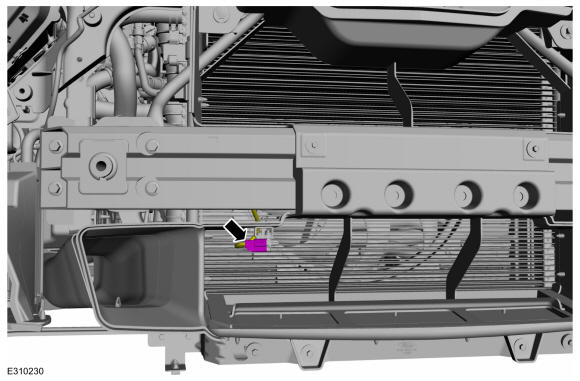

Disconnect the ambient air temperature sensor electrical connector and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

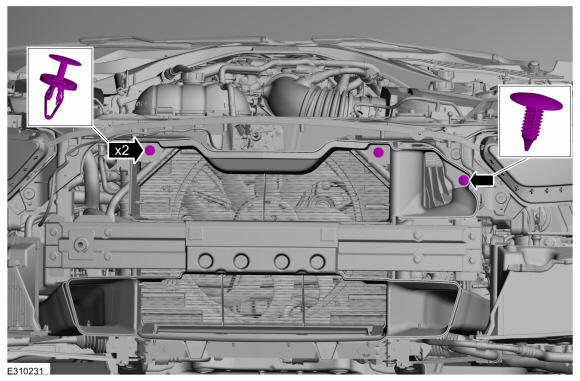

Remove the push pins and the trim pin.

Courtesy of FORD MOTOR COMPANY

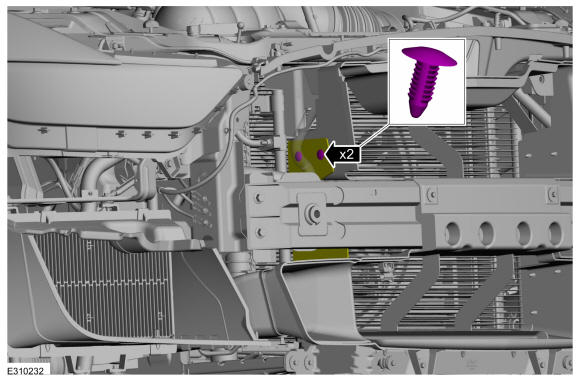

Remove the push pins and position the air deflector side panel aside.

Courtesy of FORD MOTOR COMPANY

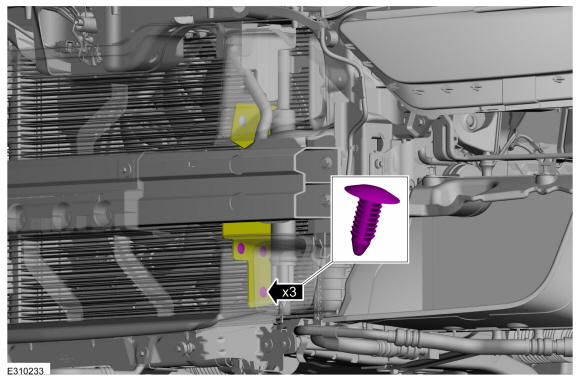

Remove the push pins and position the air deflector side panel aside.

Courtesy of FORD MOTOR COMPANY

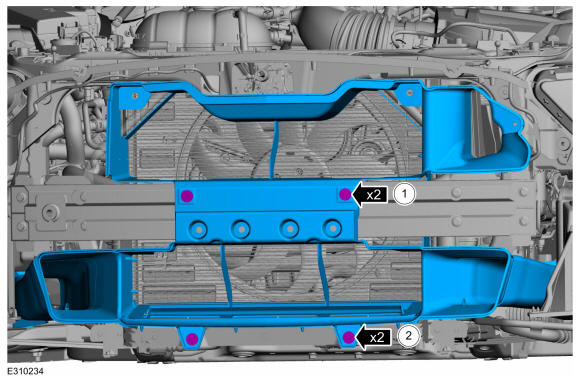

Remove the bolts and the radiator air deflector.
Torque

:1. Upper radiator air deflector bolts: 97 lb.in (11 Nm)

2. Lower radiator air deflector bolts: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

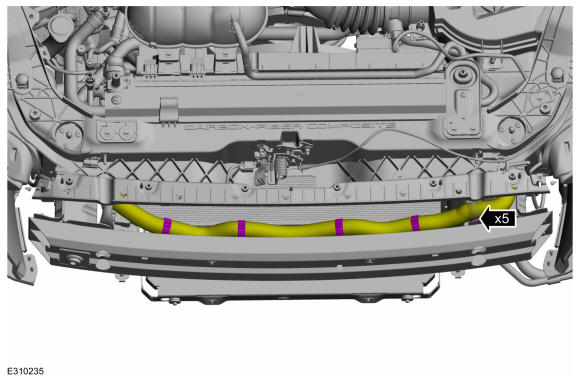

Separate the wiring harness guides.

Courtesy of FORD MOTOR COMPANY

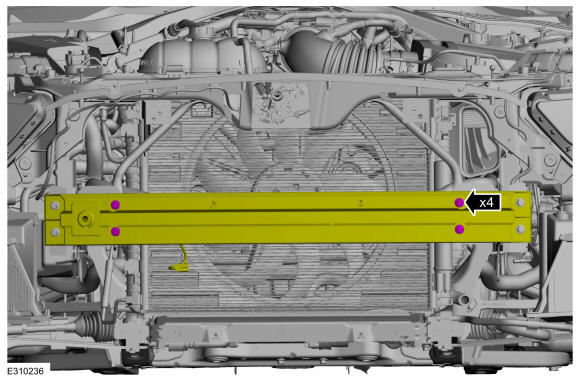

Remove the front bumper inner bolts and nuts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

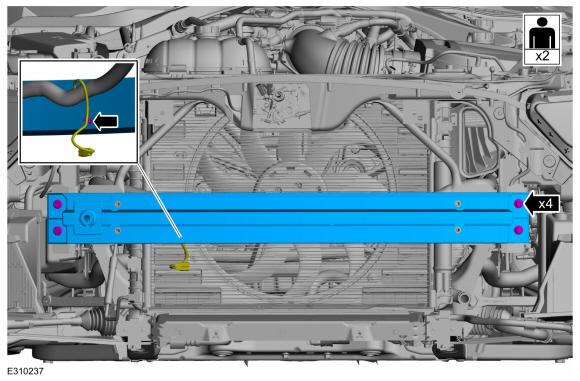

With the help of an assistant Remove the front bumper outer bolts, the wiring harness retainer and remove the front bumper.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
