Front Bumper Cover - GT500: Disassembly

  1. Remove the front bumper cover. Refer to: Front Bumper Cover - GT500

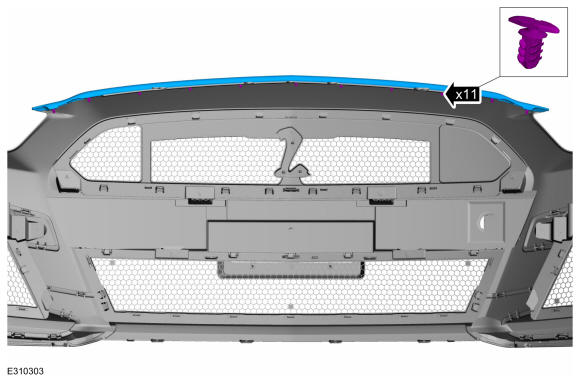

  2. Release the trim pins and remove the hood seal.
    GFD605739Courtesy of FORD MOTOR COMPANY

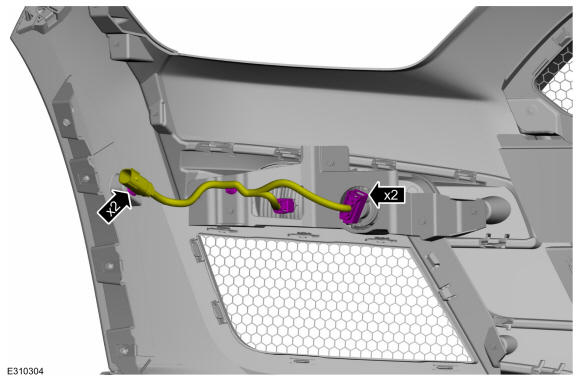

  3. On both sides. Disconnect the electrical connectors and separate the wiring harness guides.
    GFD605740Courtesy of FORD MOTOR COMPANY

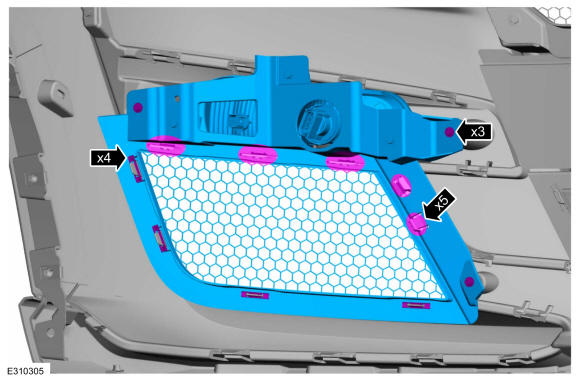

  4. On both sides. Remove the screws, the clips and release the tabs. Remove the turn signal assembly bracket.
    GFD605741Courtesy of FORD MOTOR COMPANY
  5. On both sides. Remove the screws and the turn signal lamp assembly.
    GFD605742Courtesy of FORD MOTOR COMPANY
  6. On both sides. Remove the screws, release the tabs and remove the turn signal trim panel.
    GFD605743Courtesy of FORD MOTOR COMPANY

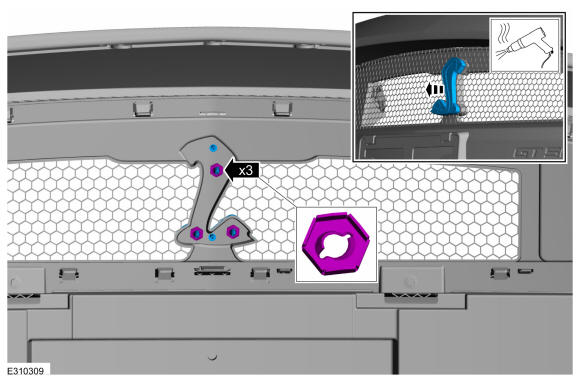

  7. Remove the speed nuts and the radiator grille emblem housing assembly.
    GFD605744Courtesy of FORD MOTOR COMPANY

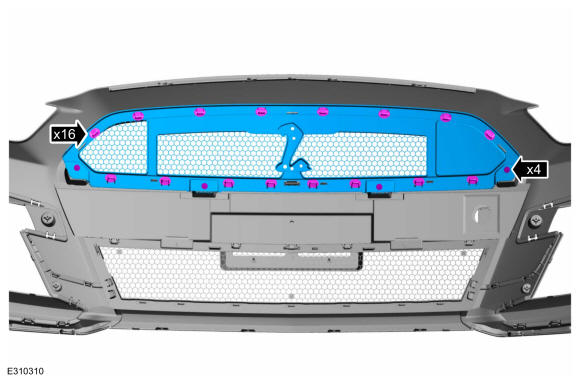

  8. Remove the screws, release the tabs and remove the upper radiator grille panel.
    GFD605745Courtesy of FORD MOTOR COMPANY
  9. If equipped. Remove the rivet blinds and the license plate bracket.
    GFD605746Courtesy of FORD MOTOR COMPANY
  10. Remove the screws, the clips and release the tabs. Remove the lower radiator grille panel.
    GFD605747Courtesy of FORD MOTOR COMPANY
  11. Release the tabs and remove the front bumper cover trim panel.
    GFD605748Courtesy of FORD MOTOR COMPANY

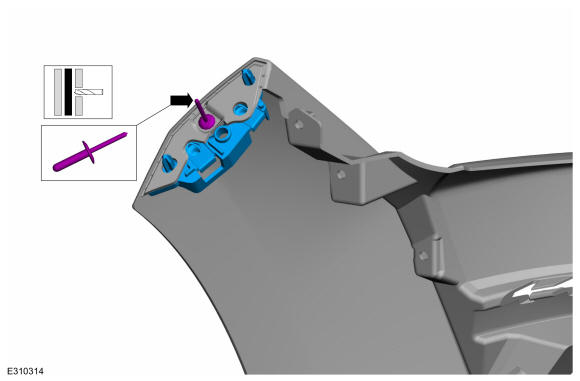

  12. On both sides. Drill the rivet and remove the front bumper cover to fender bracket.
    GFD605749Courtesy of FORD MOTOR COMPANY
  13. Release the tabs and remove the radiator grille opening panel.
    GFD605750Courtesy of FORD MOTOR COMPANY
  14. Remove the screws and the front bumper reinforcement.
GFD605751Courtesy of FORD MOTOR COMPANY
