Luggage Compartment Lid: Removal

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

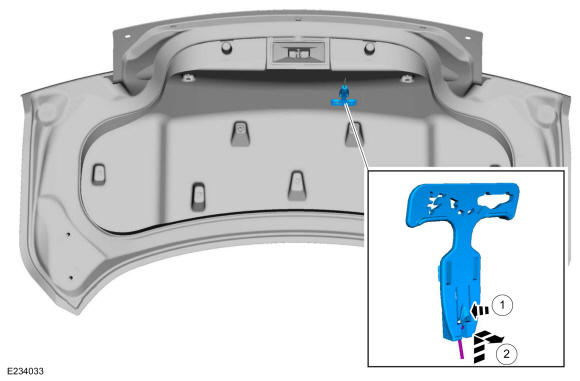

Remove the luggage compartment lid emergency release handle.
1. Press down the luggage compartment lid emergency release handle retaining tab.
2. Remove the luggage compartment lid emergency release handle.
Courtesy of FORD MOTOR COMPANY

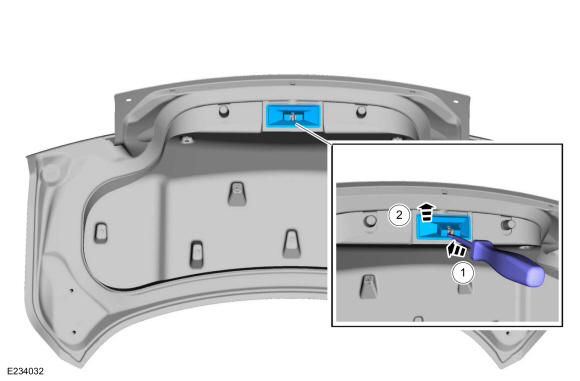

Remove the luggage compartment lid latch cover.
1. Insert a flat blade screwdriver between the luggage compartment lid latch cover and luggage compartment lid latch.
2. Remove the luggage compartment lid latch cover while gently prying the cover away from the luggage compartment lid latch disengaging the luggage compartment lid latch cover from the tab on luggage compartment lid latch. Use the General Equipment: Flat-Bladed Screwdriver
Courtesy of FORD MOTOR COMPANY

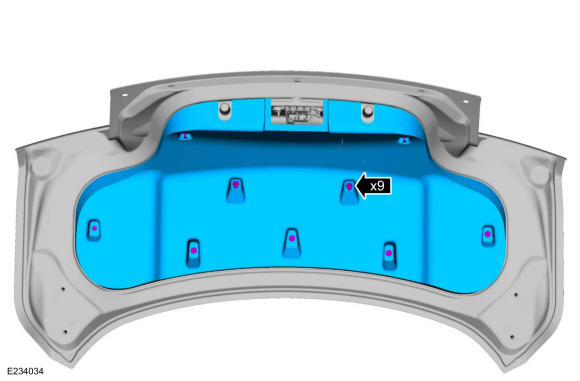

Remove the retainers and the luggage compartment lid trim panel.

Courtesy of FORD MOTOR COMPANY

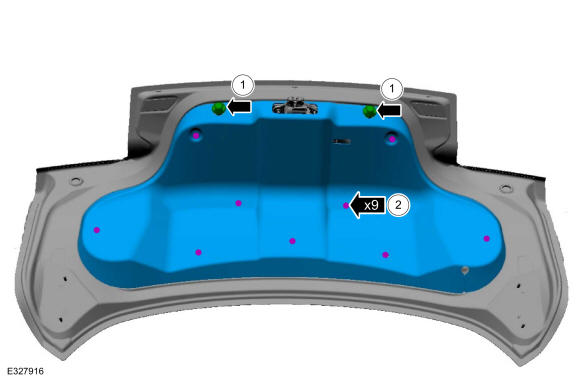

Coupe
Remove luggage compartment lid trim panel.
1. Remove the luggage compartment lid bump stop rubbers.
2. Remove the retainers and remove the luggage compartment lid trim panel.
Courtesy of FORD MOTOR COMPANY

All vehicles
NOTE: This step is only necessary when installing a new component.

Remove the luggage compartment lid moulding. Refer to: Luggage Compartment Lid Moulding
NOTE: This step is only necessary when installing a new component.

If equipped, remove the rear spoiler. Refer to: Rear Spoiler

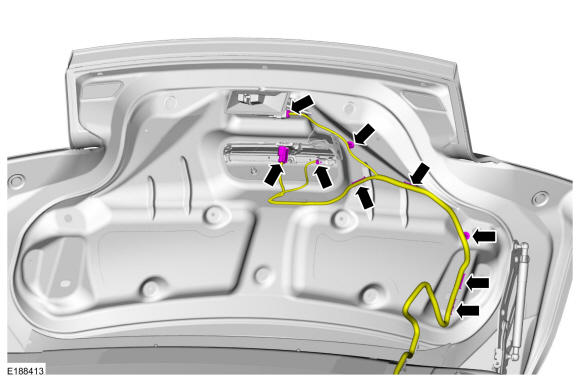

Detach the wiring harness retainers and disconnect the luggage compartment lid electrical connectors.

Courtesy of FORD MOTOR COMPANY

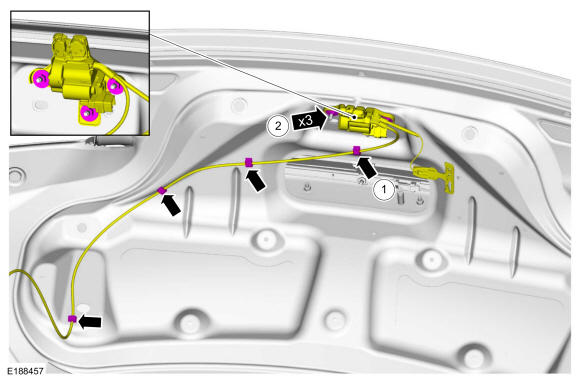

Convertible
1. Detach the latch lock cable retainers.
2. Remove the bolts and position aside the latch lock cable.
  Torque

  : 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles

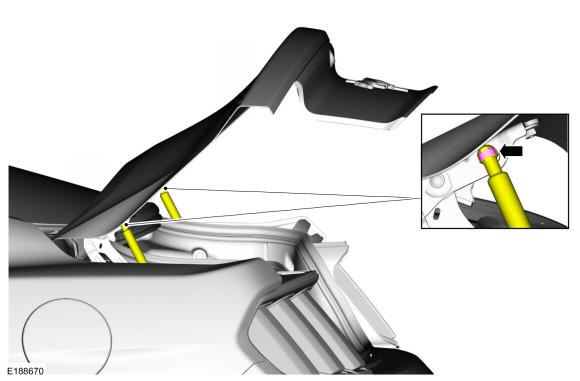

On both sides, remove the strut.

Courtesy of FORD MOTOR COMPANY
NOTE: This step requires the aid of another technician.

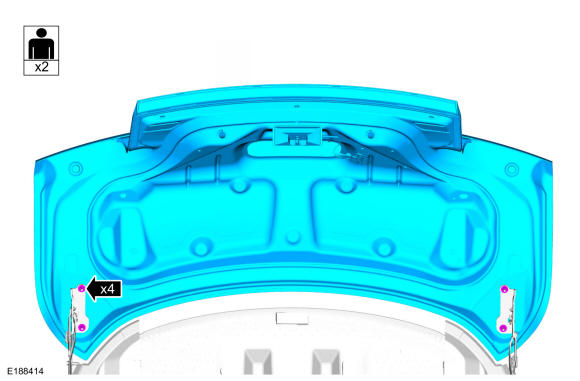

Remove the nuts and the luggage compartment lid.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
