Rear Seat Backrest Cover - Convertible: Removal
- Remove the backrest. Refer to: Rear Seat Backrest - Convertible

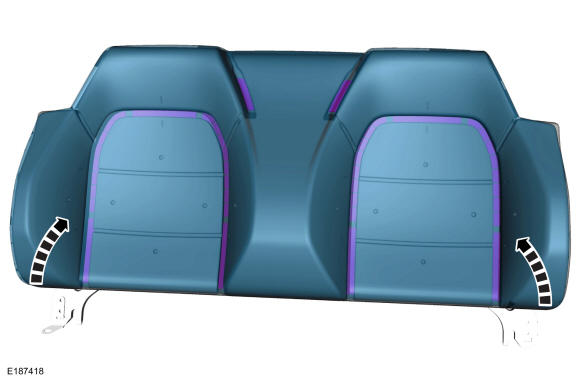

- Release the backrest cover J-clips from the backrest frame.

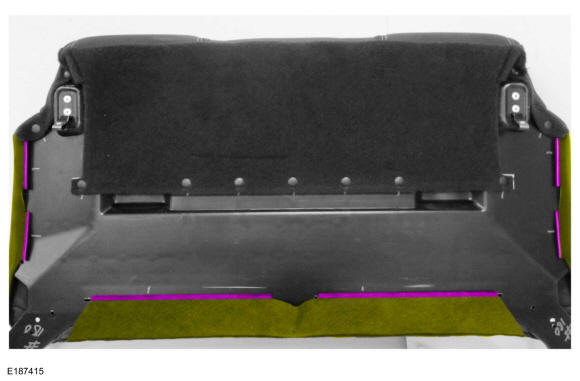

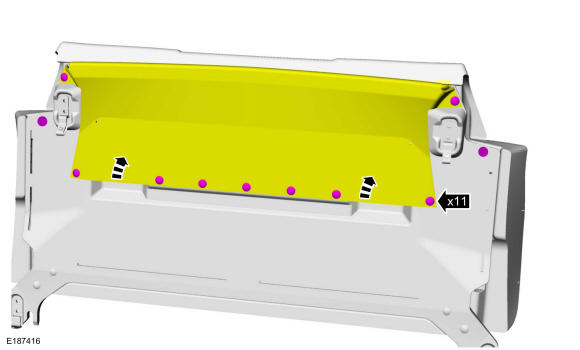

- Release the backrest cover carpet pin-type retainers from the backrest frame. Fold the carpet forward.

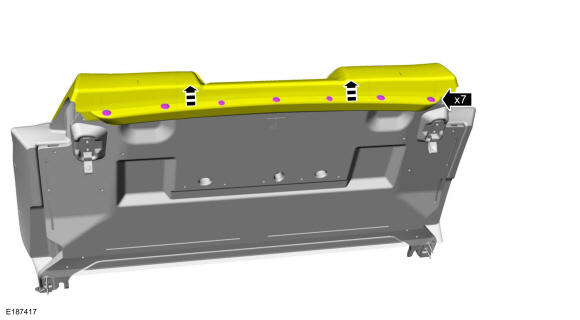

- Release the backrest cover pin-type retainers from the top of the backrest frame.
-
NOTE: Use care when separating the seat backrest cover from the hook-and-loop strips, or the hook-and-loop strips may be torn from the seat backrest foam pad.
Separate the backrest cover hook-and-loop strips from the backrest foam. Remove the backrest cover.
