Front Seat Backrest Cover - Vehicles With: Recaro Seats: Removal

WARNING: Front seat backrest trim covers installed on seats equipped with seat side airbags cannot be repaired. A new trim cover must be installed. Cleaning is permissible. Failure to follow these instructions may result in the seat side airbag deploying incorrectly and increase the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LHD driver seat shown, all others similar.

NOTE: Recaro seat shown, GT 350 Recaro seat similar.

All

Remove the front seat. Refer to: Front Seat

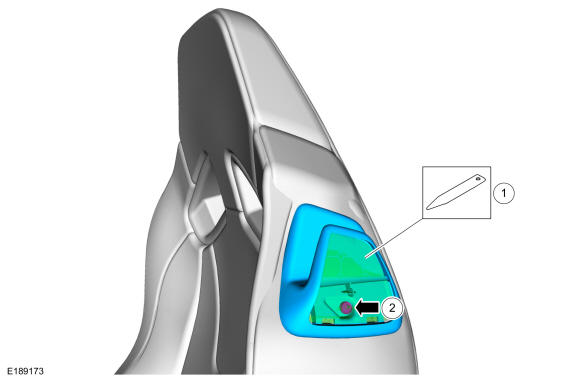

If equipped. Remove the safety belt guide.
1. Remove the cover.
2. Remove the bolt.
Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the pass-thru bezels for damage, replace as necessary.

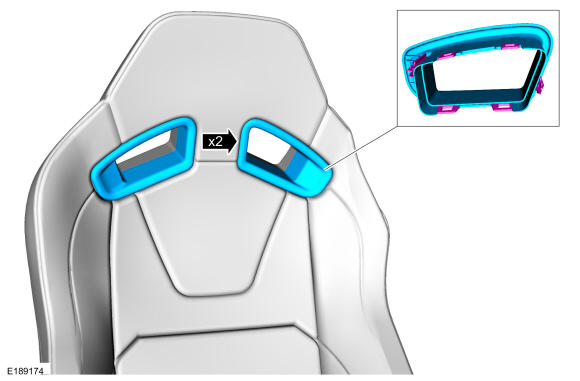

Remove the front pass-thru bezels.

Courtesy of FORD MOTOR COMPANY
NOTE: Inspect the pass-thru bezels for damage, replace as necessary.

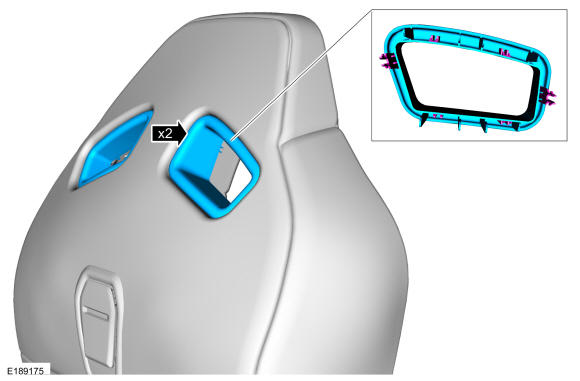

Remove the rear pass-thru bezels.

Courtesy of FORD MOTOR COMPANY

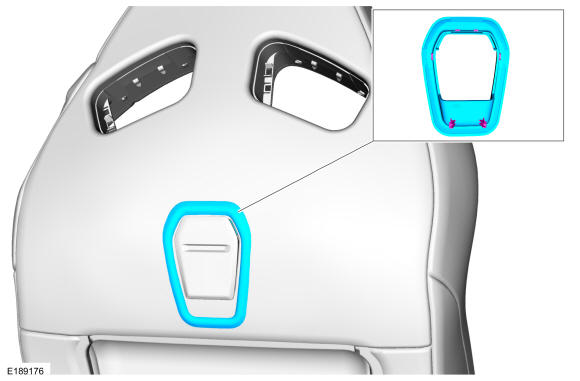

Remove the backrest release handle bezel.

Courtesy of FORD MOTOR COMPANY
Remove the side airbag. Refer to: Side Airbag - Vehicles With: Recaro Seats

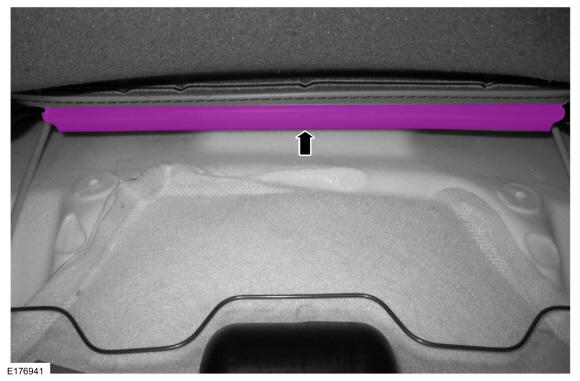

Detach the J-clip from the backrest frame.

Courtesy of FORD MOTOR COMPANY

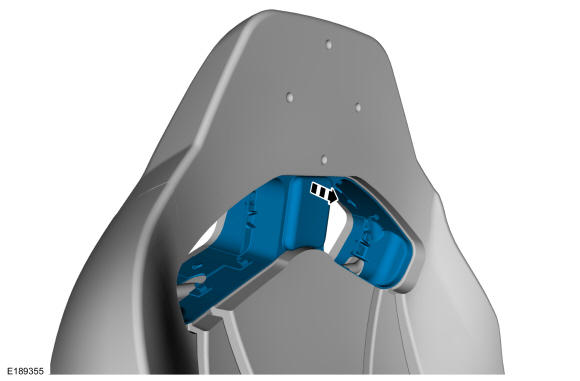

Release the backrest cover from the backrest carrier hooks.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the backrest foam pad.

NOTE: Use care when separating the backrest cover from the hook-and-arrows, or the hooks can be torn from the backrest foam pad.

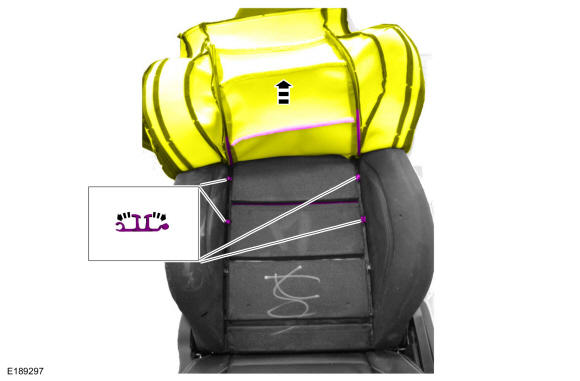

Release the hook-and-loop strips, the hook-and-arrows and position the backrest cover up.

Courtesy of FORD MOTOR COMPANY

Recaro seat
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

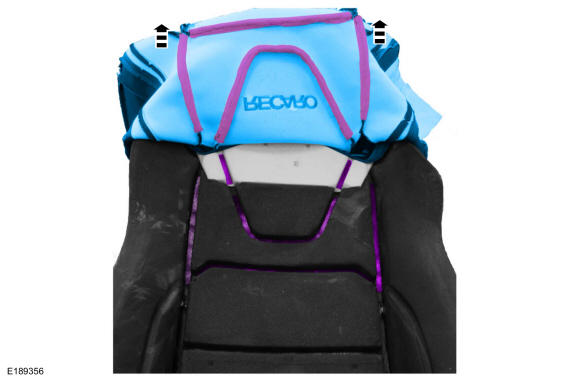

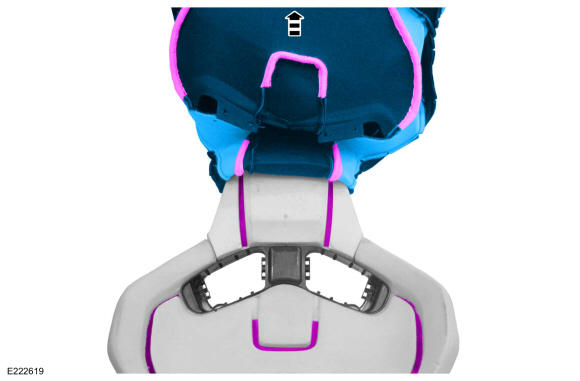

Release the hook-and-loop strips and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY

GT 350 Recaro seat
NOTE: Use care when separating the seat backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat backrest foam pad.

Release the hook-and-loop strips and remove the backrest cover.

Courtesy of FORD MOTOR COMPANY

All
If required. Remove the backrest carrier.

Courtesy of FORD MOTOR COMPANY
