Instrument Panel Upper Section: Removal

All vehicles

1. NOTE: Place the instrument panel on a suitable work surface that will allow the instrument panel to be rotated front to back without damaging the instrument panel.

   Remove the instrument panel. Refer to: Instrument Panel

2. Remove the passenger knee airbag. Refer to: Passenger Knee Airbag

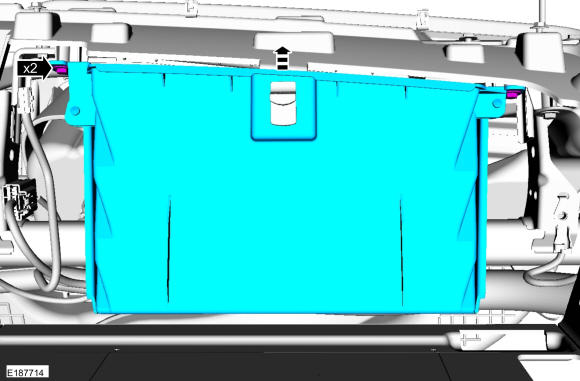

3. Remove the bolts and the glove compartment upper stowage bin.

   Courtesy of FORD MOTOR COMPANY

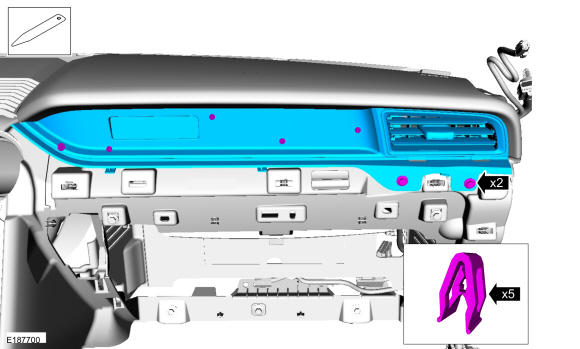

4. Remove the bolts, release the clips and remove the RH instrument panel finish panel.

   Torque: 18 lb.in (2 Nm)

   Courtesy of FORD MOTOR COMPANY

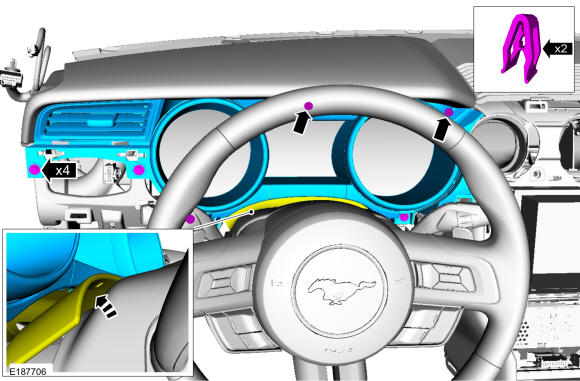

5. Remove the bolts, release the clips and remove the IPC trim panel.
   • Detach the gap hider from the upper steering column trim cover.

     Torque: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

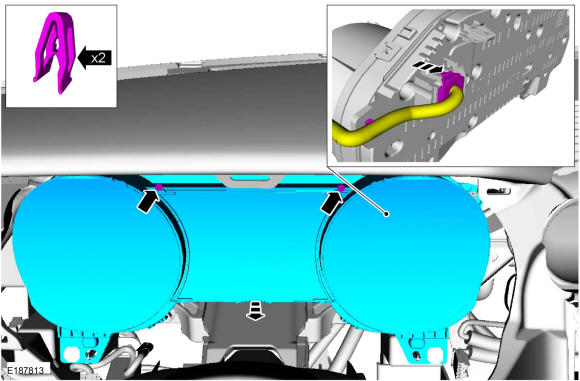

6. Release the clips and remove the IPC.
   • Disconnect the electrical connector and release the harness retainer.

   Courtesy of FORD MOTOR COMPANY

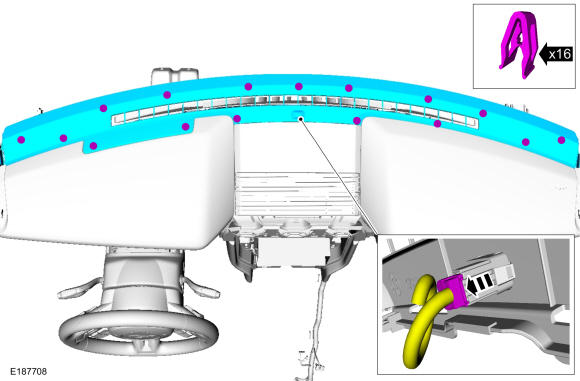

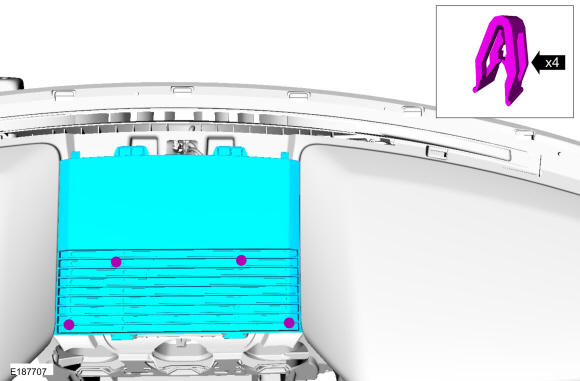

7. Release the clips and remove the defroster grille panel.
   • Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

8. Release the clips and remove the instrument panel speaker grille.

   Courtesy of FORD MOTOR COMPANY

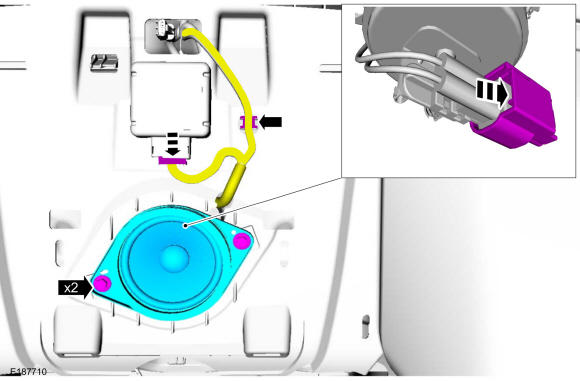

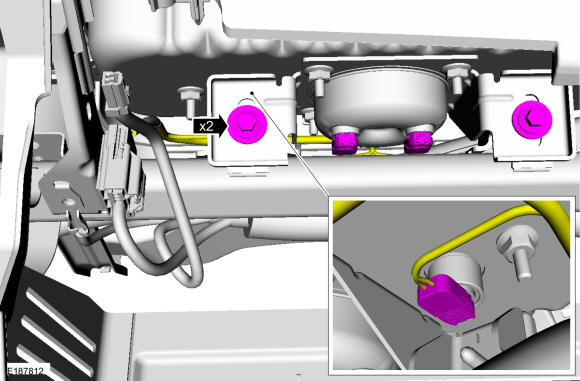

9. Remove the bolts and the instrument panel speaker.
   • Disconnect the electrical connectors and release the harness retainer.

     Torque: 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with AM/FM/CD/SNYC

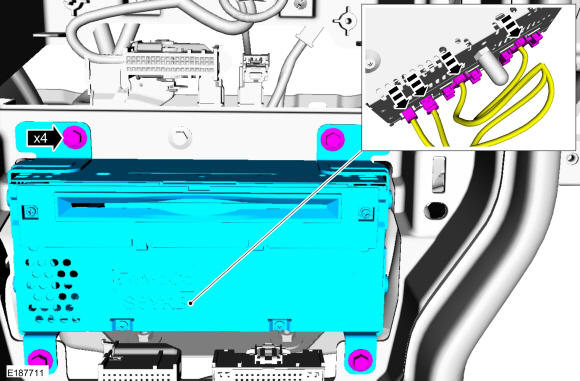

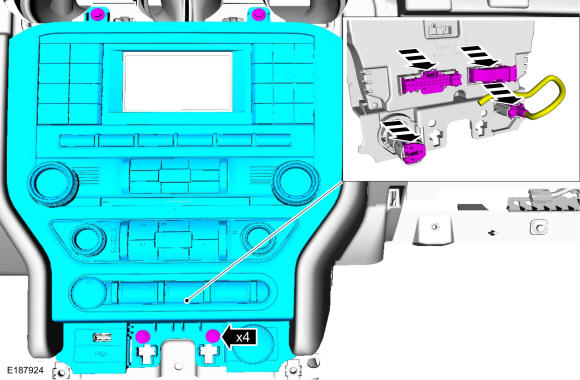

10. Remove the bolts and the FCIM.
    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

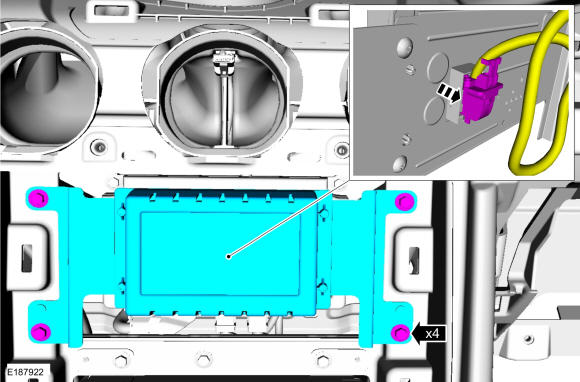

11. Remove the bolts and the FCDIM.
    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

12. Remove the bolts and APIM.
    • Disconnect the electrical connectors.

      Torque: 13 lb.in (1.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with Touchscreen Display

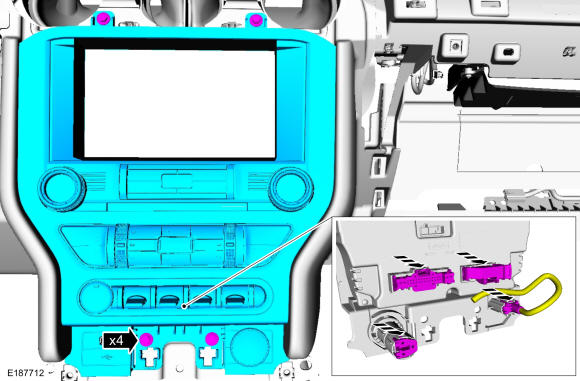

13. Remove the bolts and the FCIM.
    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

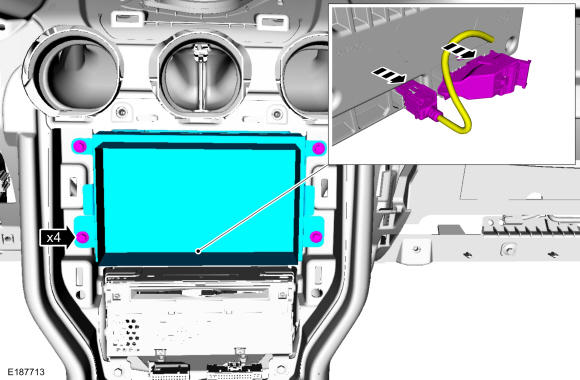

14. Remove the bolts and the FDIM.
    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

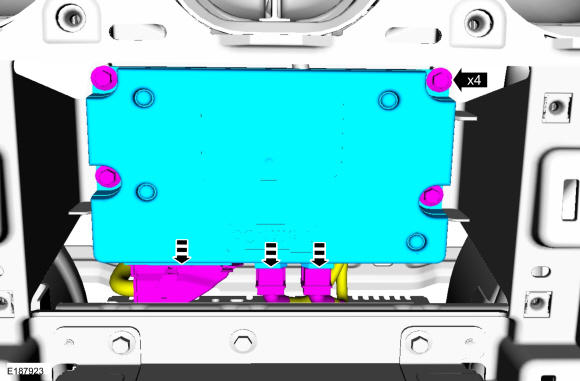

15. Remove the bolts and the ACM.
    • Disconnect the electrical connectors.

      Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

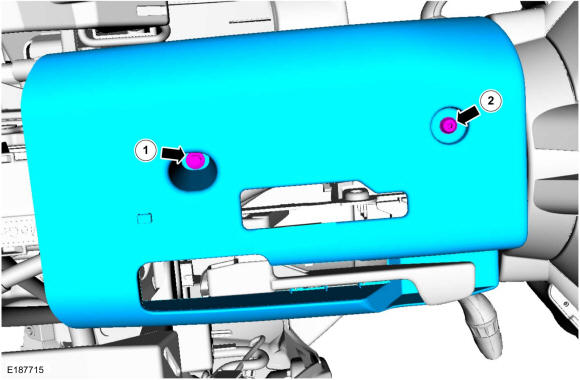

16. Remove the bolt, screw and the lower steering column shroud.
    1. Torque: 22 lb.in (2.5 Nm)
    2. Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

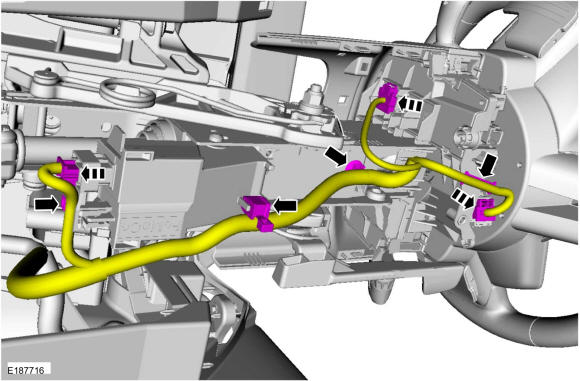

17. Disconnect the electrical harness, release the harness retainers and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

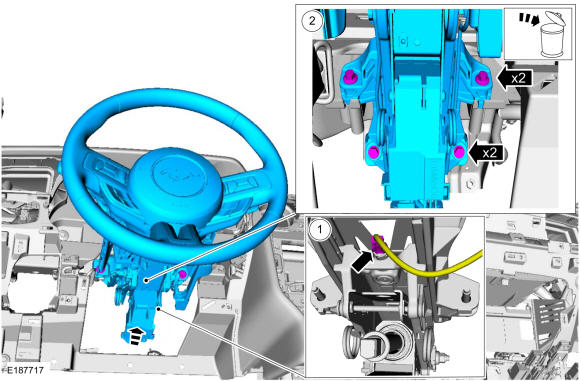

18. Remove the steering column.
    1. Disconnect the electrical connector.
    2. NOTE: The front and rear steering column bolts are not the same, note bolt location before installation.

       Remove and discard the steering column bolts.

       Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Remove the bolts.
    • Disconnect the 3 electrical connectors.

      Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

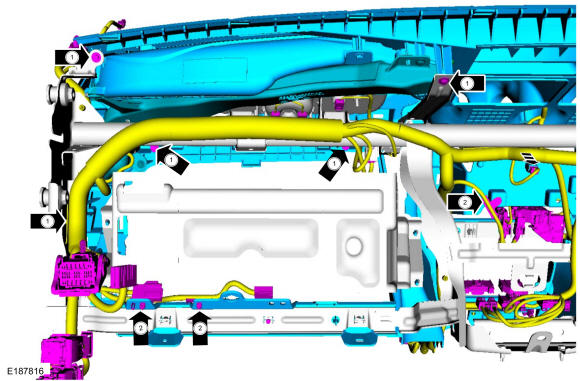

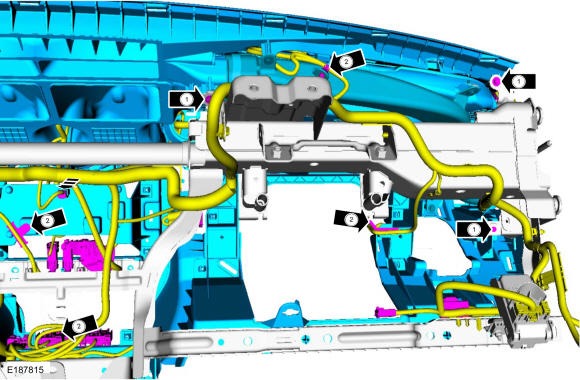

20. From the rear of the instrument panel position the electrical harness aside on the LH side.
    1. Remove the instrument panel upper section to in-vehicle cross beam bolts.

       Torque: 22 lb.in (2.5 Nm)

    2. Release the harness retainers.

    Courtesy of FORD MOTOR COMPANY

21. From the rear of the instrument panel position the electrical harness aside on the RH side.
    1. Remove the instrument panel upper section to in-vehicle cross beam bolts.

       Torque: 22 lb.in (2.5 Nm)

    2. Release the harness retainers.

    Courtesy of FORD MOTOR COMPANY

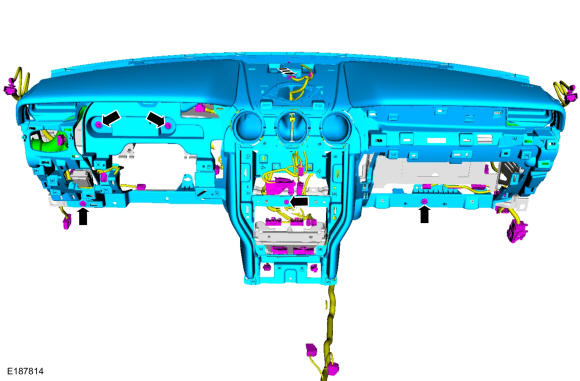

22. NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel upper section or damage to the components may occur.

    From the front of the instrument panel position remove the 5 instrument panel upper section to in-vehicle cross beam bolts and remove the instrument panel upper section.

Courtesy of FORD MOTOR COMPANY
