Instrument Panel Center Finish Panel: Removal

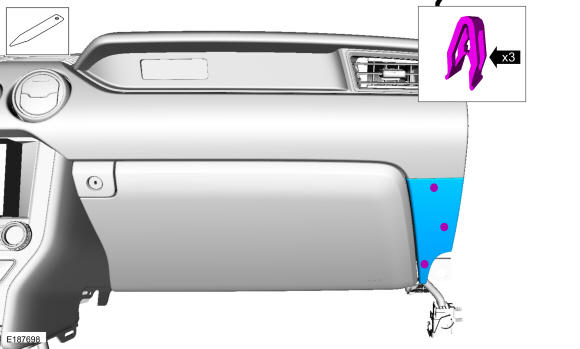

  1. Release the clips and remove RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover
    GFD605443Courtesy of FORD MOTOR COMPANY

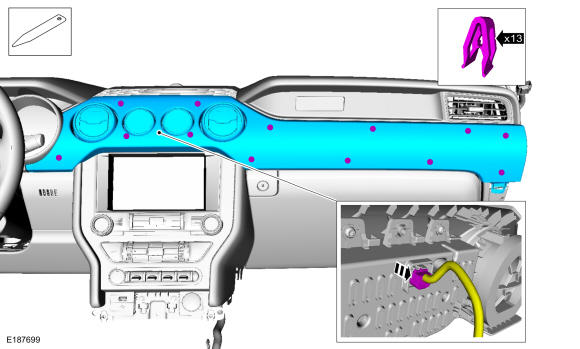

  2. NOTE: Instrument panel center finish panel with optional ICM shown.

    Release the clips and remove the instrument panel center finish panel.

    • Disconnect the ICM electrical connector, if equipped. Use the General Equipment: Interior Trim Remover

GFD605444Courtesy of FORD MOTOR COMPANY
