Glove Compartment: Removal

Glove compartment

  1. The glove compartment and the passenger knee air bag are serviced as an assembly. Refer to: Passenger Knee Airbag

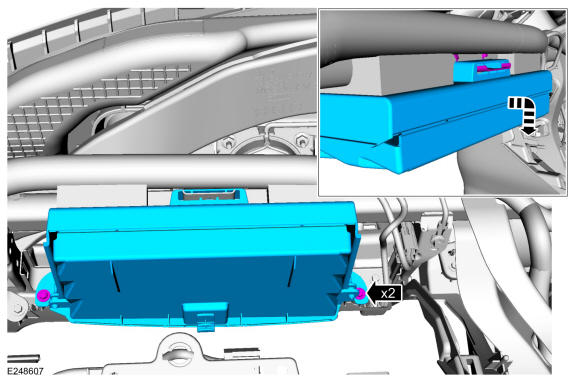

    Glove compartment upper stowage bin latch

  2. Remove the instrument panel. Refer to: Instrument Panel
  3. Remove the bolts, slide the glove compartment upper stowage bin off the bracket and remove the glove compartment upper stowage bin.
GFD605414Courtesy of FORD MOTOR COMPANY
