Turbocharger RH: Removal
NOTE:
The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
NOTE:
Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.
- Remove the catalytic converter RH. Refer to: Catalytic Converter RH .
- Remove the turbocharger oil supply tube RH. Refer to: Turbocharger Oil Supply Tube RH .
- Remove the turbocharger oil return tube RH. Refer to: Turbocharger Oil Return Tube RH .
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Disconnect the electrical connector.

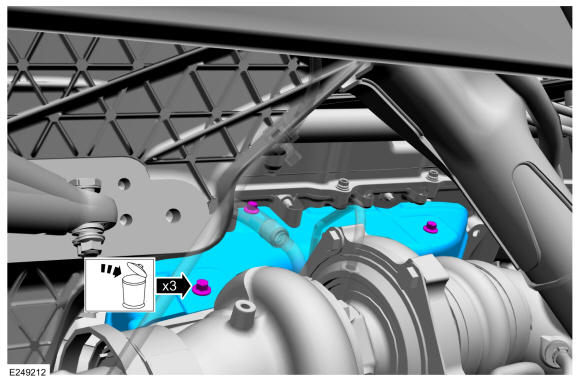

- Remove and discard the bolts, then remove the exhaust manifold heat shield.
- Remove the turbocharger coolant supply tube bolt, then disconnect the turbocharger coolant supply tube and position out of the way.
-
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Inspect the banjo bolt, the tube surface for flatness and square-ness and the sealing surface for damage. Always use new sealing washers. Use brake cleaner and a nylon brush to clean.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
- Remove and discard the turbocharger coolant tube sealing washers, discard the turbocharger coolant tube bolt.
- Inspect the banjo bolt, the tube surface for flatness and square-ness and the sealing surface for damage. Always use new sealing washers. Use brake cleaner and a nylon brush to clean.
- Remove the bolt, then disconnect the turbocharger coolant return tube.
-
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
- Inspect the banjo bolt, the tube surface for flatness and square-ness and the sealing surface for damage. Always use new sealing washers. Use brake cleaner and a nylon brush to clean.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
- Remove and discard the turbocharger coolant tube sealing washers, discard the turbocharger coolant tube bolt.
- Inspect the banjo bolt, the tube surface for flatness and square-ness and the sealing surface for damage. Always use new sealing washers. Use brake cleaner and a nylon brush to clean.

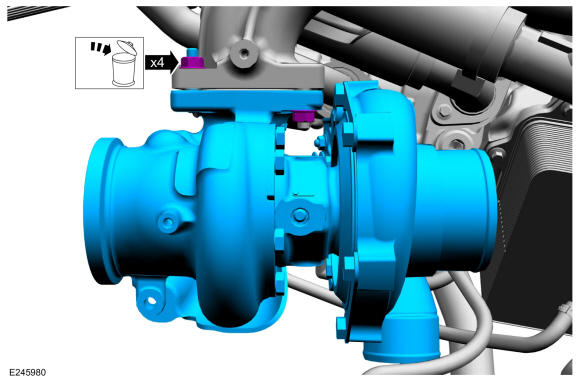

- Remove and discard the nuts, then remove the turbocharger.

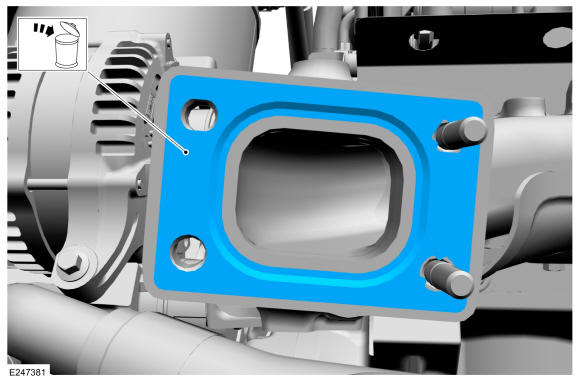

- Remove and discard the turbocharger gasket.
- If needed remove the turbocharger studs from the turbocharger.
- If needed remove the turbocharger studs from the exhaust manifold.
