Brake Vacuum Pump: Removal

Remove the LH front fender splash shield. Refer to: Fender Splash Shield .

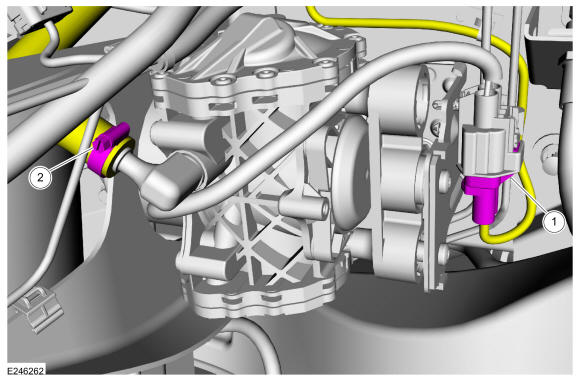

1. Disconnect the vacuum pump electrical connector.
2. Loosen the clamp and detach the hose.
  Torque: 27 lb.in (3 Nm)
Courtesy of FORD MOTOR COMPANY

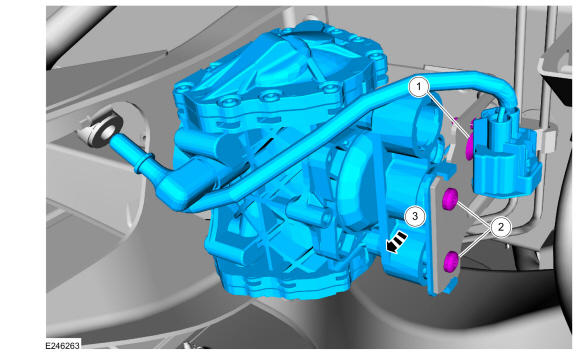

1. Detach the harness retainer.
2. Remove the bolts.
  Torque: 24 lb.ft (32 Nm)
3. Remove the brake vacuum pump.

Courtesy of FORD MOTOR COMPANY
