Brake Pedal: Removal
-
NOTE: Do not service the brake pedal without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.
Remove the stoplamp switch. Refer to: Stoplamp Switch .
- Compress the tabs and remove the clevis pin. Discard the pin.

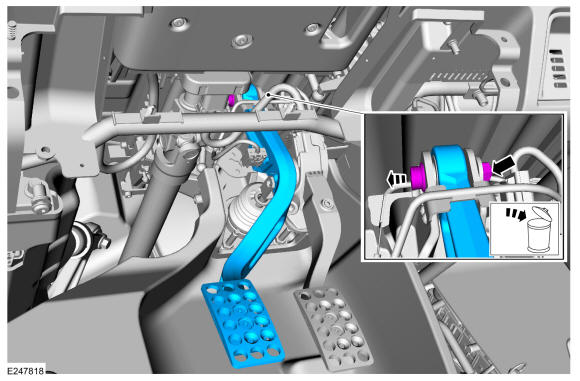

- Remove the nut, bolt and the brake pedal. Discard the nut and bolt.
Torque: 22 lb.ft (30 Nm)
