Brake Master Cylinder: Removal

NOTE: If the brake fluid is spilled on any component, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

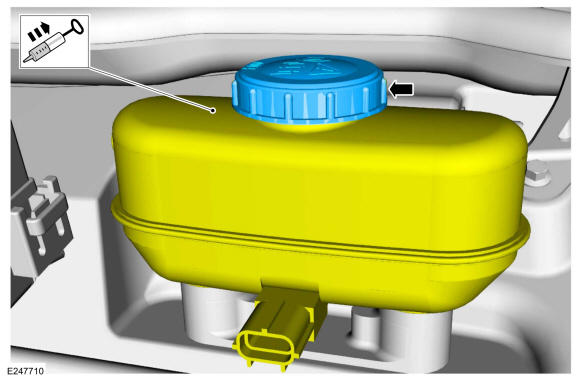

Remove the brake fluid reservoir cap and using a suction device, remove the brake fluid from the reservoir. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY
Remove the climate control housing. Refer to: Climate Control Housing .
Remove the steering column. Refer to: Steering Column .
NOTE: Make sure that all openings are sealed.

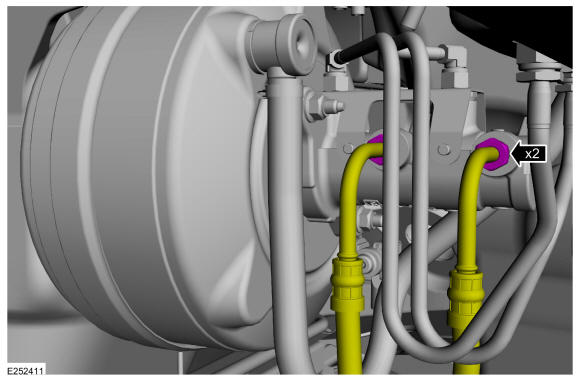

Disconnect the brake tube fittings.

Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

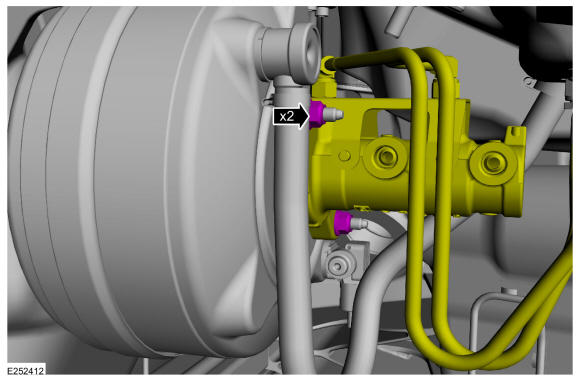

Remove the nuts and position the brake master cylinder aside.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

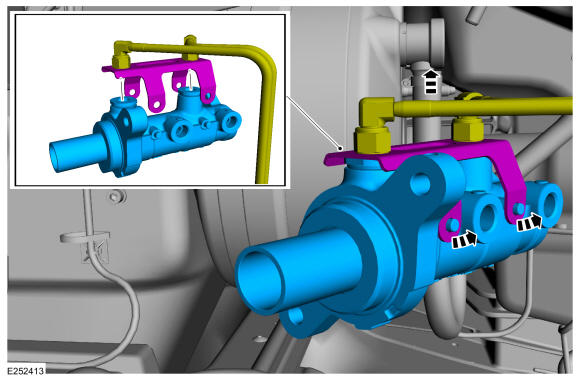

Detach the brake tube hold down bracket, disconnect the brake tubes and remove the brake master cylinder.

Courtesy of FORD MOTOR COMPANY
