Adjustable Pedal Box: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the climate control housing. Refer to: Climate Control Housing .
Remove the steering column. Refer to: Steering Column .
Remove the accelerator pedal. Refer to: Accelerator Pedal .
Remove the brake pedal. Refer to: Brake Pedal .

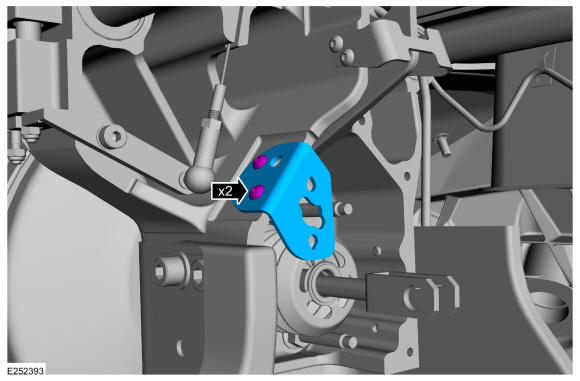

Remove the bolts and the accelerator pedal bracket.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

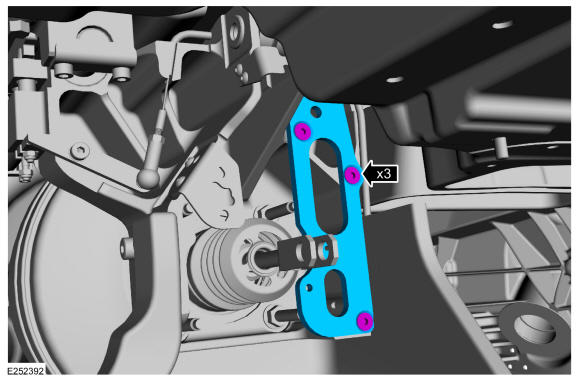

Remove the screws and the stoplamp switch bracket.

Courtesy of FORD MOTOR COMPANY

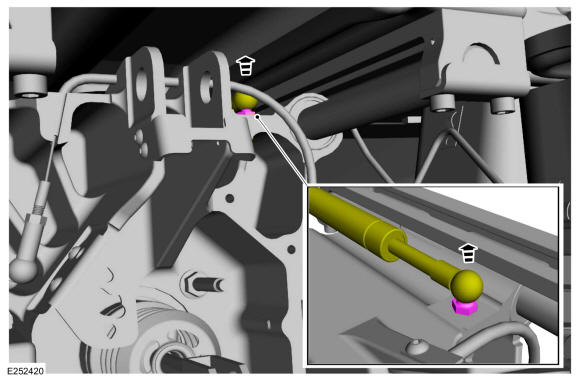

Detach the adjustable pedal box strut and position the strut aside.

Courtesy of FORD MOTOR COMPANY

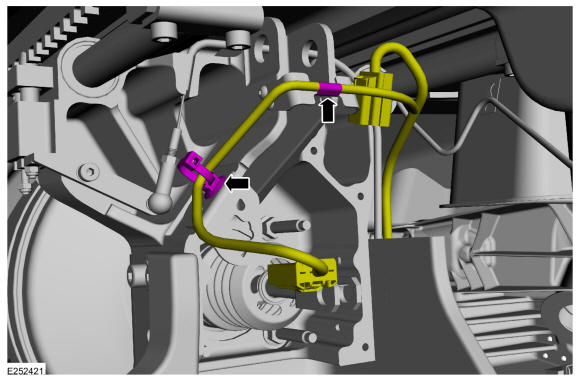

Detach the wiring harness retainers and position the wiring aside.

Courtesy of FORD MOTOR COMPANY

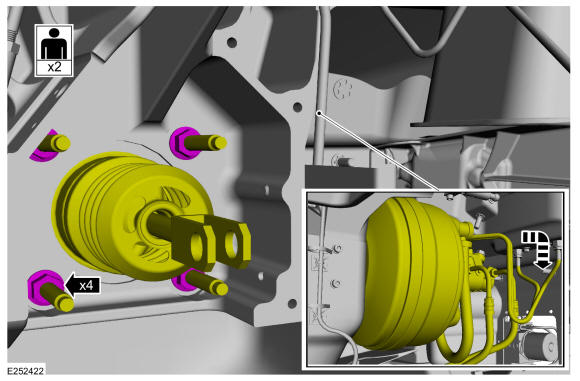

Remove the nuts and with the aid of an assistant, separate the brake booster and master cylinder from the brake pedal box and position the brake booster and master cylinder aside.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

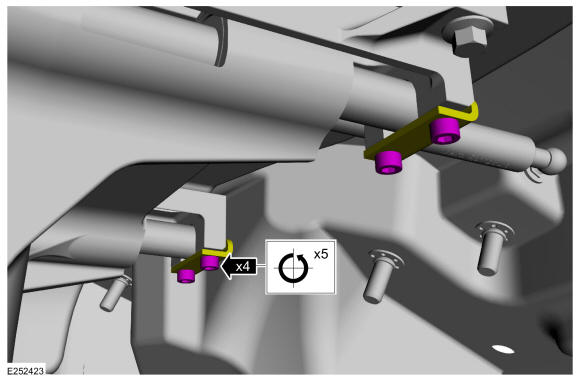

Loosen the forward pedal box rail capture plate bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

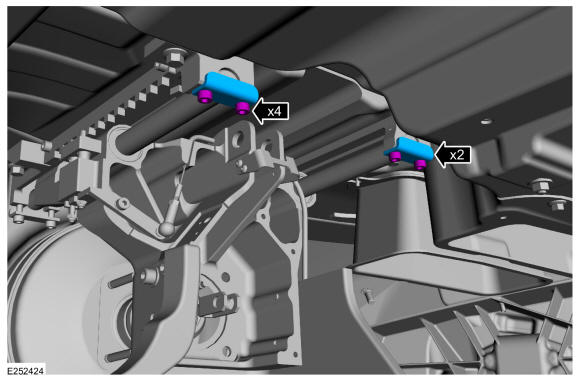

Remove the bolts and the rearward pedal box rail capture plates.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

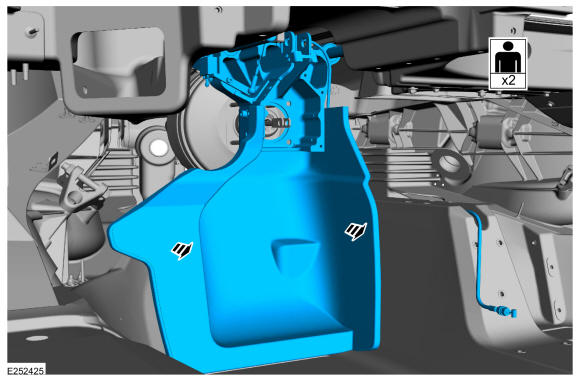

With the aid of an assistant, remove the adjustable pedal box.
