Adjustable Pedal Box Strut: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the climate control housing. Refer to: Climate Control Housing .

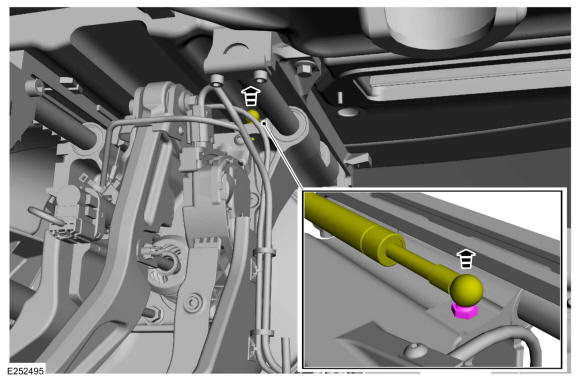

  2. Detach the adjustable pedal box strut from the pedal box.
    GFD344237Courtesy of FORD MOTOR COMPANY

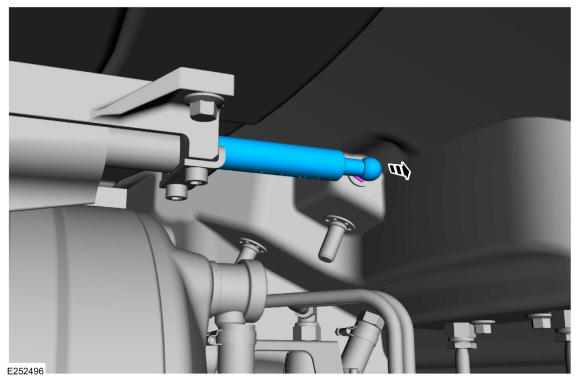

  3. Detach the adjustable pedal box strut from the body and remove the adjustable pedal box strut.
GFD344238Courtesy of FORD MOTOR COMPANY
