Adjustable Pedal Box Cable: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the adjustable pedal box. Refer to: Adjustable Pedal Box  .

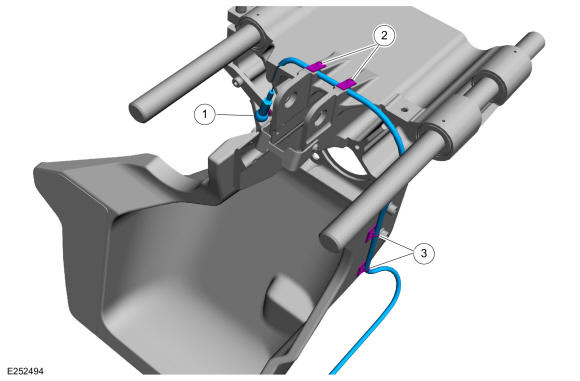

    1. Detach the cable.
    2. Remove the screws and the plates.
    3. Detach the retainers and remove the adjustable pedal box cable.
GFD344236Courtesy of FORD MOTOR COMPANY
