Instrument Panel Cluster (IPC) - Overview
Overview
The IPC uses the following methods and functionality to alert the driver of vehicle conditions:
- gauges
- informational and warning indicators
- informational RTT and warning RTT indicators
- informational and warning messages
- warning chimes
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
The RTT indicators illuminate in message center popup displays and dedicated and rotating RTT display locations, using the same iconic representation as typical LED indicators. Rotating RTT indicators display in the order the request was received by the IPC.

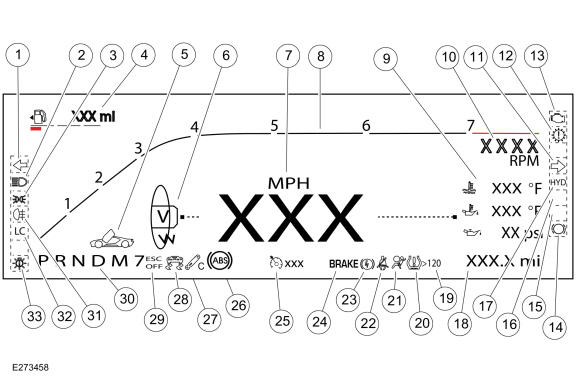

| Item | Description |
|---|---|
| 1 | LH turn signal indicator |
| 2 | High beam RTT indicator |
| 3 | Lights on (side marker position) indicator |
| 4 | Left information display area Low fuel RTT indicator DTE display Engine temperature status display |
| 5 | Rotating RTT indicator display area Door, hood and hatch ajar Front lift mode Ride height fault |
| 6 | Drive mode (Normal, Sport, Track or V-Max) indicator |
| 7 | Center information display area Cruise control display Message center popup and message display area Speedometer Transmission range (sport and track mode) Vehicle ride height and deployable wing popup displays |
| 8 | Tachometer virtual gauge |
| 9 | Right information display area Alternate speed display (km/h or mph depending on the primary unit selected) Navigation display Virtual gauge display (single or multiple [up to 4]) gauges TPMS status Trip computer Transmission range (sport and track mode) Secondary gauge display (V-Max and Track modes only) Speedometer display |
| 10 | Tachometer digital display |
| 11 | RH turn indicator |
| 12 | Transmission fault RTT indicator |
| 13 | MIL indicator |
| 14 | Brake wear RTT indicator. |
| 15 | Rotating RTT indicator display area Low engine oil pressure Powertrain malfunction (wrench) |
| 16 | Rotating RTT indicator display area Charging system Frost warning |
| 17 | Hydraulic system fault RTT indicator |
| 18 | Odometer display |
| 19 | Overspeed RTT indicator (Gulf Coast Countries [GCC] only) |
| 20 | TPMS indicator |
| 21 | Airbag warning indicator |
| 22 | Seatbelt warning indicator |
| 23 | Electronic parking brake indicator |
| 24 | Brake warning indicator |
| 25 | Cruise control RTT indicator |
| 26 | ABS indicator |
| 27 | Damper control RTT indicator |
| 28 | Stability-traction control (sliding car icon) indicator |
| 29 | Stability-traction control disabled (ESC OFF icon) indicator |
| 30 | PRNDL display |
| 31 | Rear fog lamp indicator (except North America) |
| 32 | Launch control RTT indicator |
| 3. | LED low beam malfunction indicator |
The IPC utilizes a 10.1" color Thin Film Transistor (TFT) display for all cluster information. This is a complete virtual IPC without any analog gauges or LED-type indicators. All indicators appear similar to standard LED indicators found in other analog Instrument Panel Clusters (IPCs).
Depending on the driver mode selection, information on demand display and other message center quick action menu selections, a newly selected display replaces the current display. In other instances, the newly selected display moves RTT indicators or status displays (such as cruise control or engine over-temperature) to a new location. Due to the nature of the virtual cluster, the cluster displays and the level of detail may change based on driver selections. For additional information related to the IPC displays, setup and message center menu selections, refer to the Owner's Literature.
