Removal And Installation: Turbocharger: Installation

  1. If removed, install the turbocharger coolant tubes. Refer to: Turbocharger Coolant Return Tube . Refer to: Turbocharger Coolant Supply Tube .

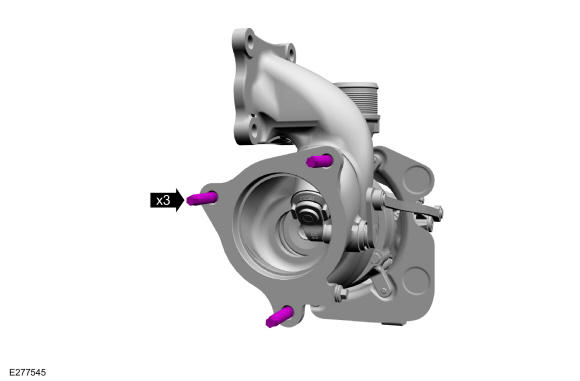

  2. If removed, install and tighten the turbocharger exhaust flange studs.

    Torque: 30 lb.ft (40 Nm)

    GFD513344Courtesy of FORD MOTOR COMPANY

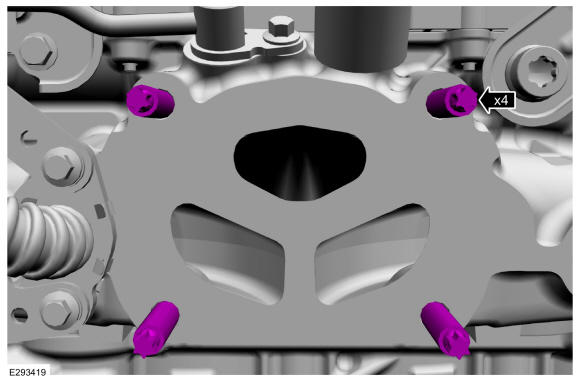

  3. If removed, install and tighten the turbocharger mounting studs.

    Torque: 159 lb.in (18 Nm)

    GFD513343Courtesy of FORD MOTOR COMPANY

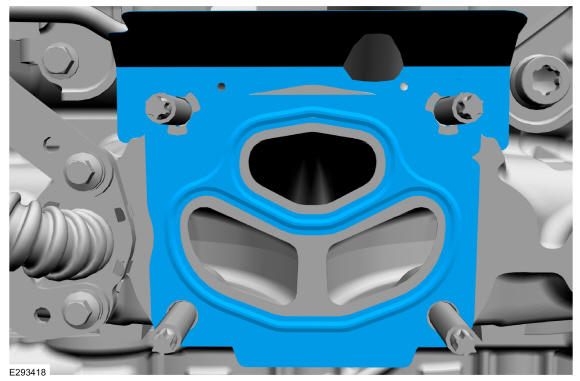

  4. Install the new turbocharger gasket.
    GFD513345Courtesy of FORD MOTOR COMPANY

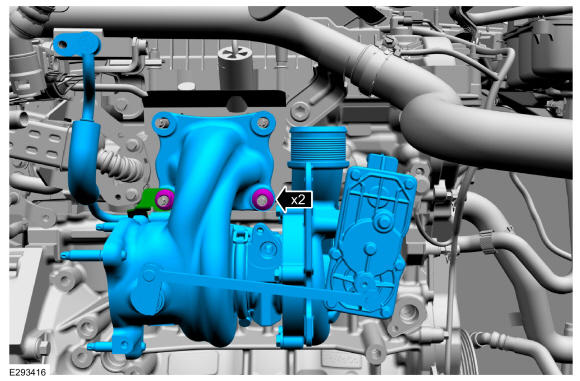

  5. NOTE: The coolant tube bracket is retained by the left lower turbocharger nut.

    Install the turbocharger, attach the coolant tube bracket, then install and tighten the turbocharger lower mounting nuts.

    Torque: 39 lb.ft (53 Nm)

    GFD513341Courtesy of FORD MOTOR COMPANY
  6. GFD513346Courtesy of FORD MOTOR COMPANY

    1. Install the new turbocharger coolant tube O-ring seal and lubricate with clean engine coolant. Refer to: Specifications .

  7. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

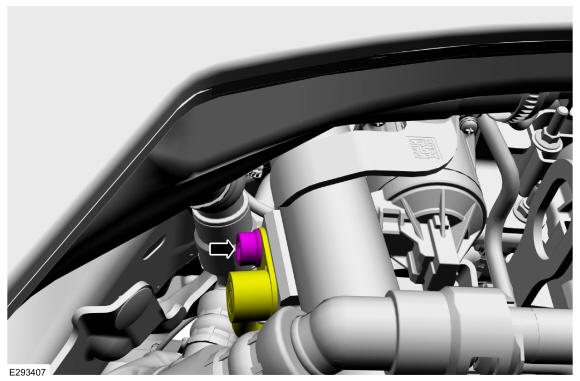

    1. Install the turbocharger coolant return tube, then install and tighten the bolt.

      Torque: 97 lb.in (11 Nm)

    GFD513339Courtesy of FORD MOTOR COMPANY

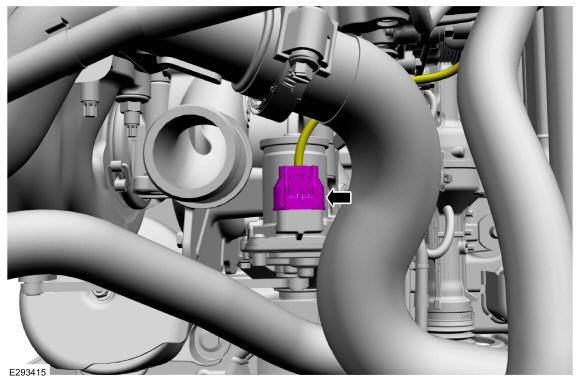

  8. Connect the turbocharger electrical connector.
    GFD513338Courtesy of FORD MOTOR COMPANY
  9. Install a new turbocharger coolant tube O-ring seal. Lubricate the turbocharger coolant tube O-ring seal and rubber gasket with clean engine coolant. Refer to: Specifications .
    GFD513347Courtesy of FORD MOTOR COMPANY
    • NOTE: Do not use a metal brush damage to sealing area will result in leaks.

      Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

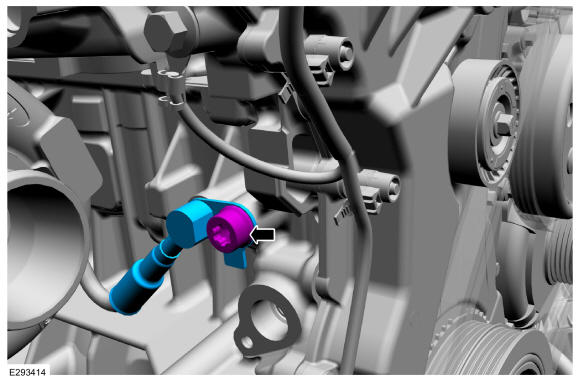

    1. Install the outer half of the turbocharger coolant supply tube, then install and tighten the bolt.

      Torque: 35 lb.ft (48 Nm)

    GFD513336Courtesy of FORD MOTOR COMPANY

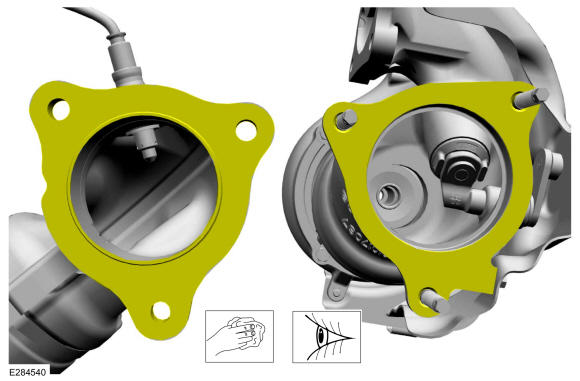

  10. Clean and Inspect the gasket surfaces.
    GFD513348Courtesy of FORD MOTOR COMPANY

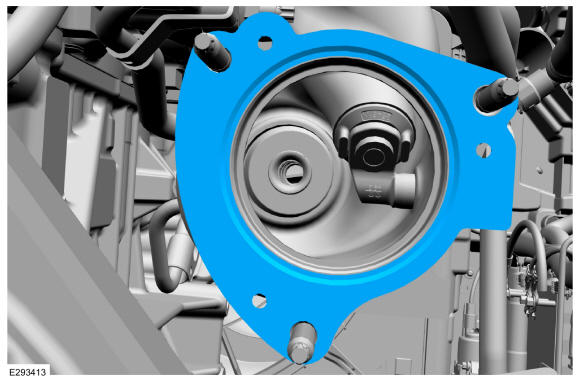

  11. Install a new gasket.
    GFD513349Courtesy of FORD MOTOR COMPANY

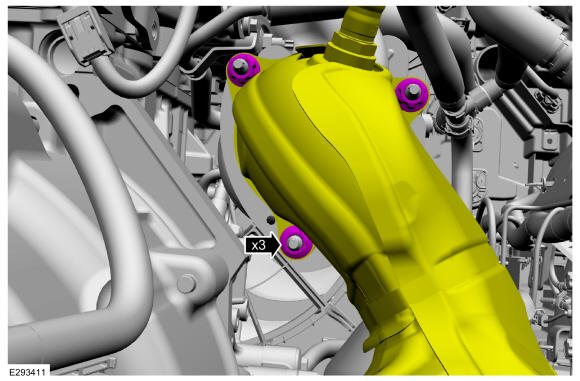

  12. Install the catalytic converter, then install and tighten the new catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD513350Courtesy of FORD MOTOR COMPANY

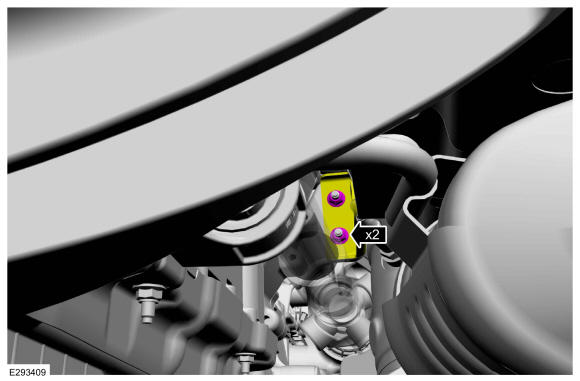

  13. Install and tighten the hanger bracket nuts.

    Torque: 18 lb.ft (25 Nm)

    GFD513333Courtesy of FORD MOTOR COMPANY

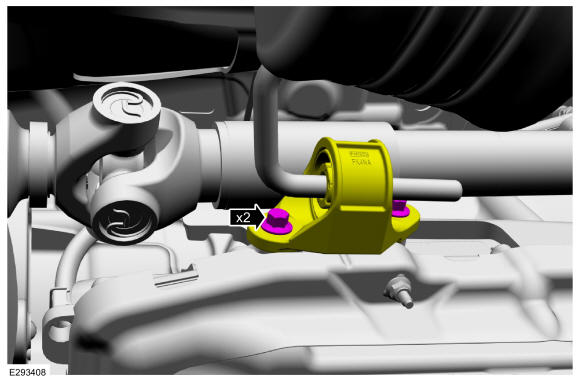

  14. Install and tighten the isolator hanger bracket bolts.

    Torque: 177 lb.in (20 Nm)

    GFD513332Courtesy of FORD MOTOR COMPANY

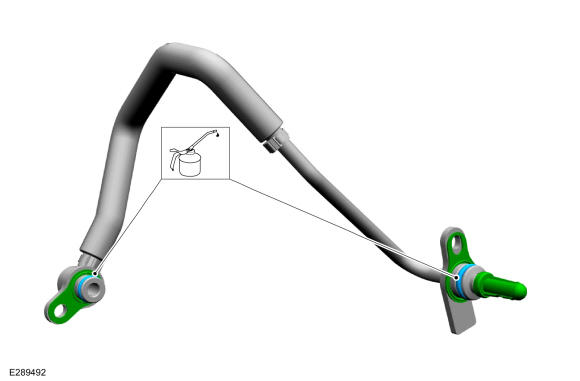

  15. NOTE: Do not reuse the turbocharger oil filter, a new turbocharger oil filter must be used.
    NOTE: Ensure that new turbocharger oil supply tube O-rings and gaskets are used.

    Install the new turbocharger oil supply tube O-rings, gaskets and oil filter if not already installed. Lubricate the O-ring seals with clean engine oil. Refer to: Specifications .

    GFD513351Courtesy of FORD MOTOR COMPANY

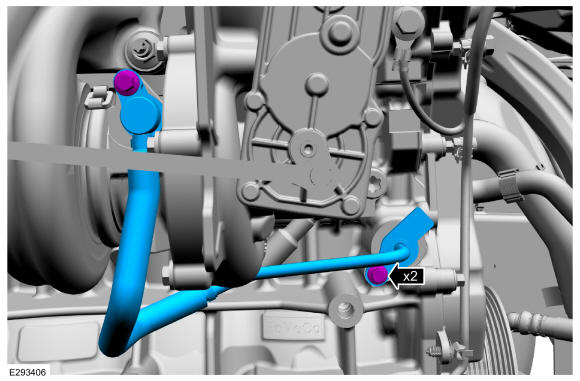

  16. NOTE: The oil supply tube must be fully seated prior to fastener tightening.

    • NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger and engine O-ring bores. Inspect the area for deep scratches and gouges. Install new components if needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    1. Install and fully seat the turbocharger oil supply tube, then install and tighten the bolts.

      Torque: 97 lb.in (11 Nm)

    GFD513352Courtesy of FORD MOTOR COMPANY

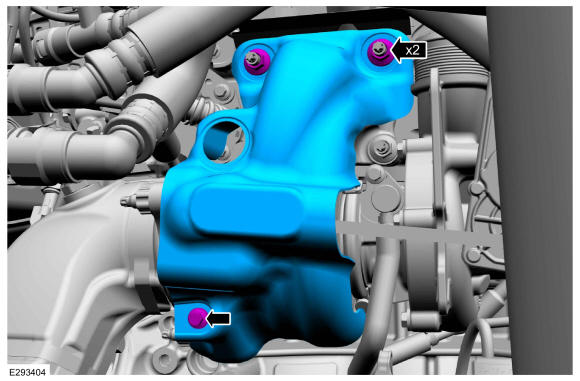

  17. Install the turbocharger heat shield, then install and tighten the lower bolt and the upper nuts.

    Torque: Nuts : 39 lb.ft (53 Nm) Bolt : 97 lb.in (11 Nm)

    GFD513330Courtesy of FORD MOTOR COMPANY
  18. NOTE: Ensure that a new turbocharger oil return tube O-ring and gasket are used.

    Install a new turbocharger oil return tube O-ring seal and a new turbocharger oil return tube gasket if not already installed. Lubricate the new turbocharger oil return tube O-ring seal with clean engine oil. Refer to: Specifications .

    GFD513353Courtesy of FORD MOTOR COMPANY
  19. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.
    NOTE: The oil return tube must be fully seated prior to fastener rundown.

    • Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger tube O-ring bore. Inspect the area for deep scratches and gouges. Install new components if needed.

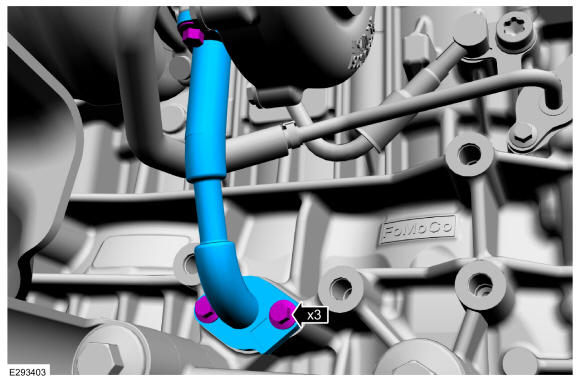

    1. Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Torque: 97 lb.in (11 Nm)

    GFD513354Courtesy of FORD MOTOR COMPANY

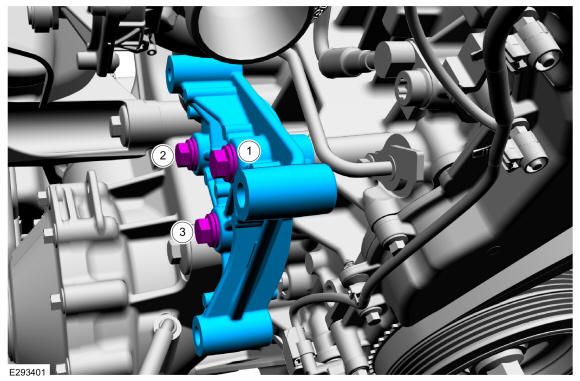

  20. Install the air conditioning compressor mounting bracket, then install and tighten the bolts in the sequence shown.

    Torque: 35 lb.ft (48 Nm)

    GFD513355Courtesy of FORD MOTOR COMPANY
  21. Remove the air conditioning compressor bolt and the studbolts, then position the air conditioning compressor out of the way.

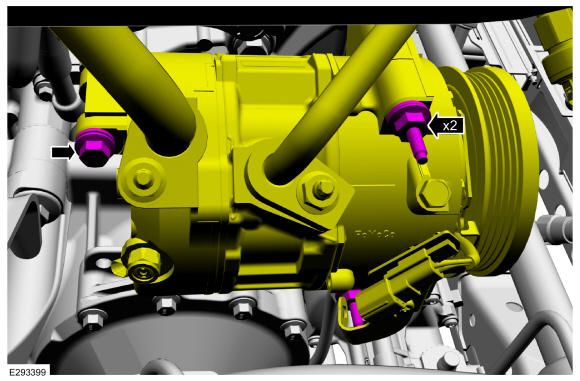

  22. Install the air conditioning compressor, then install and tighten the air conditioning compressor bolt and the studbolts.

    Torque: 18 lb.ft (25 Nm)

    GFD513327Courtesy of FORD MOTOR COMPANY

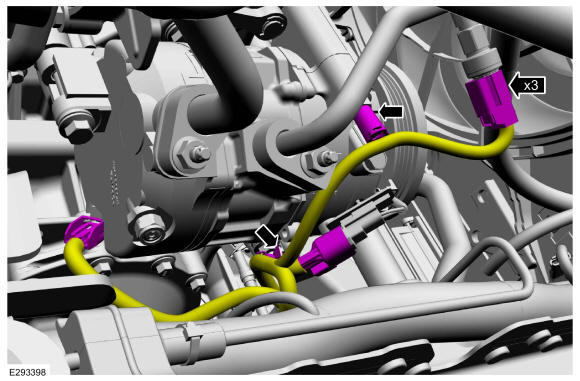

  23. Connect the electrical connectors and the wire harness retainers.
    GFD513326Courtesy of FORD MOTOR COMPANY
  24. Install the air conditioning compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
  25. Install the charge air cooler (CAC) intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  26. Install the air cleaner. Refer to: Air Cleaner .
  27. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

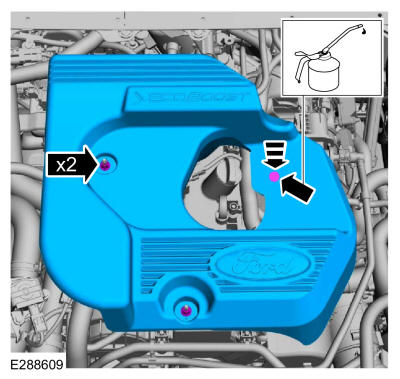

  28. If equipped install the engine appearance cover.

    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. Position the engine appearance cover onto engine with the grommet aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs and install the nuts.

    GFD513356Courtesy of FORD MOTOR COMPANY
  29. Check the engine oil level and fill as needed. Refer to: Specifications .
  30. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  31. Check for leaks.
