Remote Keyless Entry and Alarm

Fig 1: Remote Keyless Entry and Alarm System Wiring Diagrams (1 Of 10)
GFDWR94684Courtesy of FORD MOTOR COMPANY

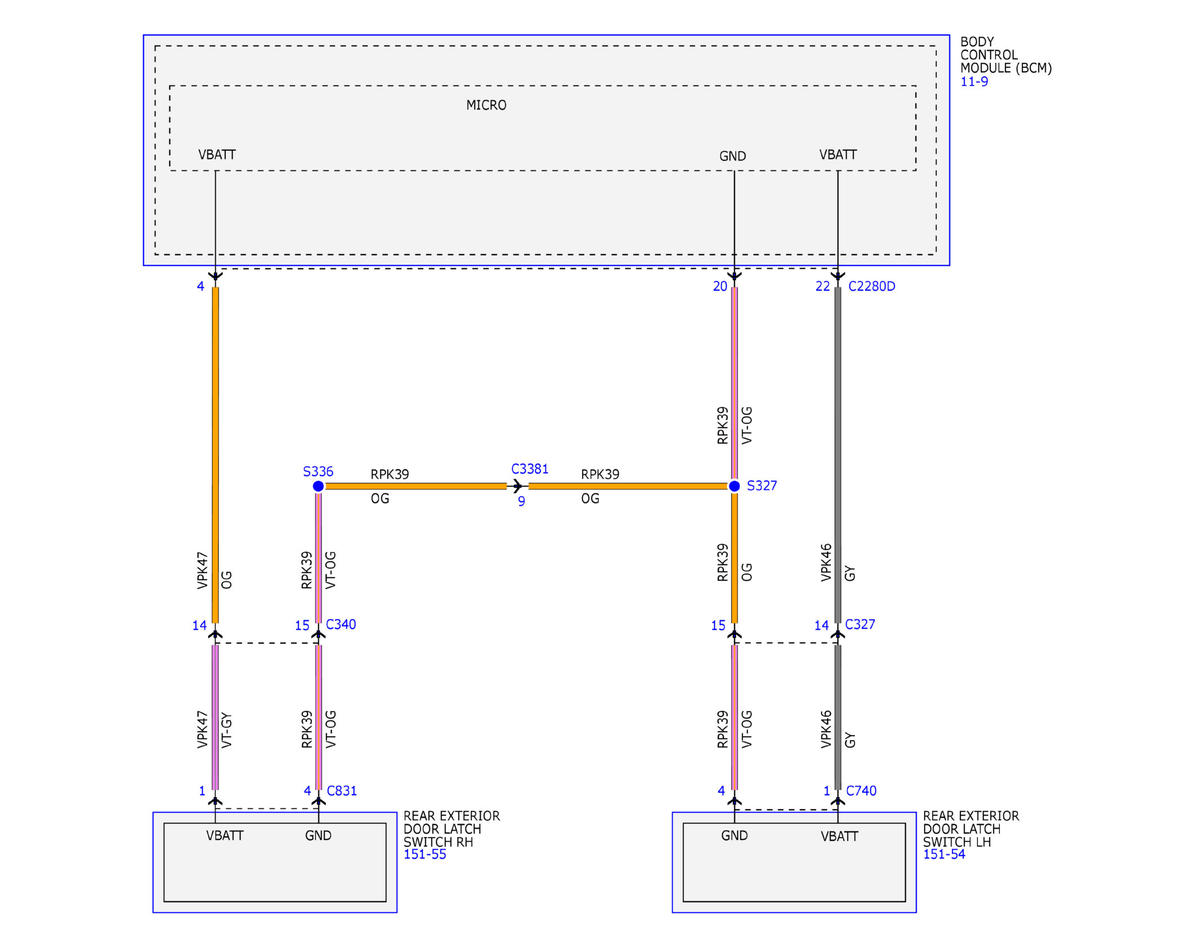

Fig 2: Remote Keyless Entry and Alarm System Wiring Diagrams (2 Of 10)
GFDWR94685Courtesy of FORD MOTOR COMPANY
Fig 3: Remote Keyless Entry and Alarm System Wiring Diagrams (3 Of 10)
GFDWR94686Courtesy of FORD MOTOR COMPANY

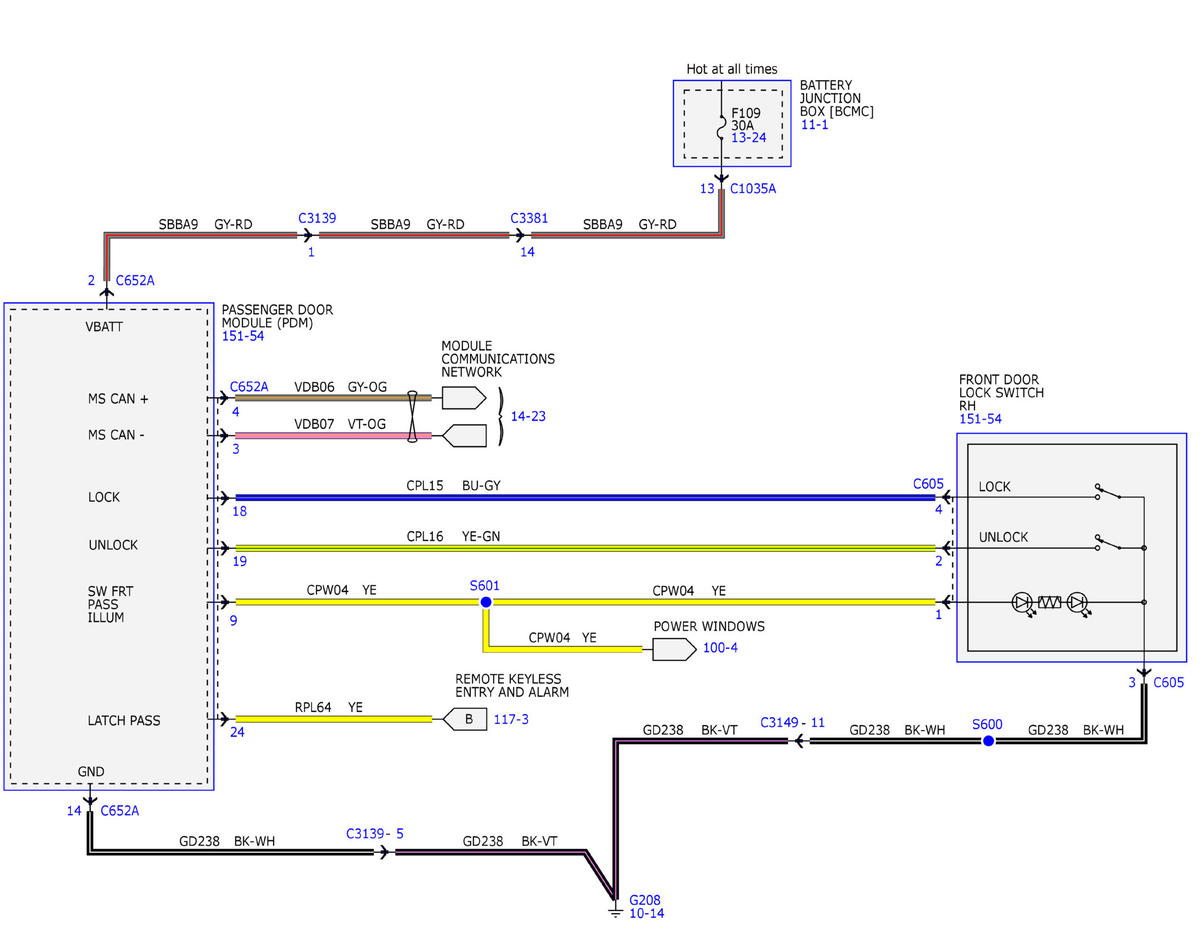

Fig 4: Remote Keyless Entry and Alarm System Wiring Diagrams (4 Of 10)
GFDWR94687Courtesy of FORD MOTOR COMPANY
Fig 5: Remote Keyless Entry and Alarm System Wiring Diagrams (5 Of 10)
GFDWR94688Courtesy of FORD MOTOR COMPANY
Fig 6: Remote Keyless Entry and Alarm System Wiring Diagrams (6 Of 10)
GFDWR94689Courtesy of FORD MOTOR COMPANY

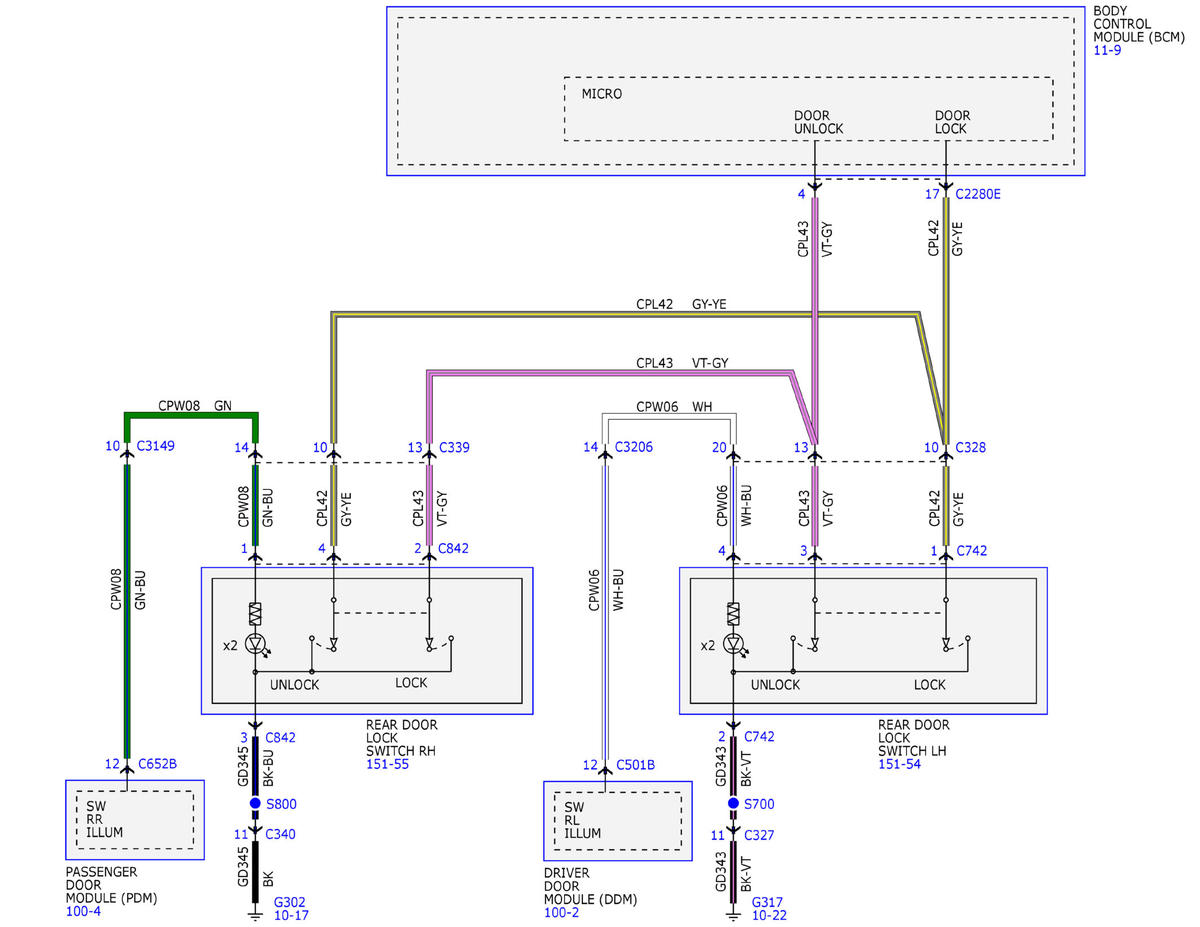

Fig 7: Remote Keyless Entry and Alarm System Wiring Diagrams (7 Of 10)
GFDWR94690Courtesy of FORD MOTOR COMPANY
Fig 8: Remote Keyless Entry and Alarm System Wiring Diagrams (8 Of 10)
GFDWR94691Courtesy of FORD MOTOR COMPANY

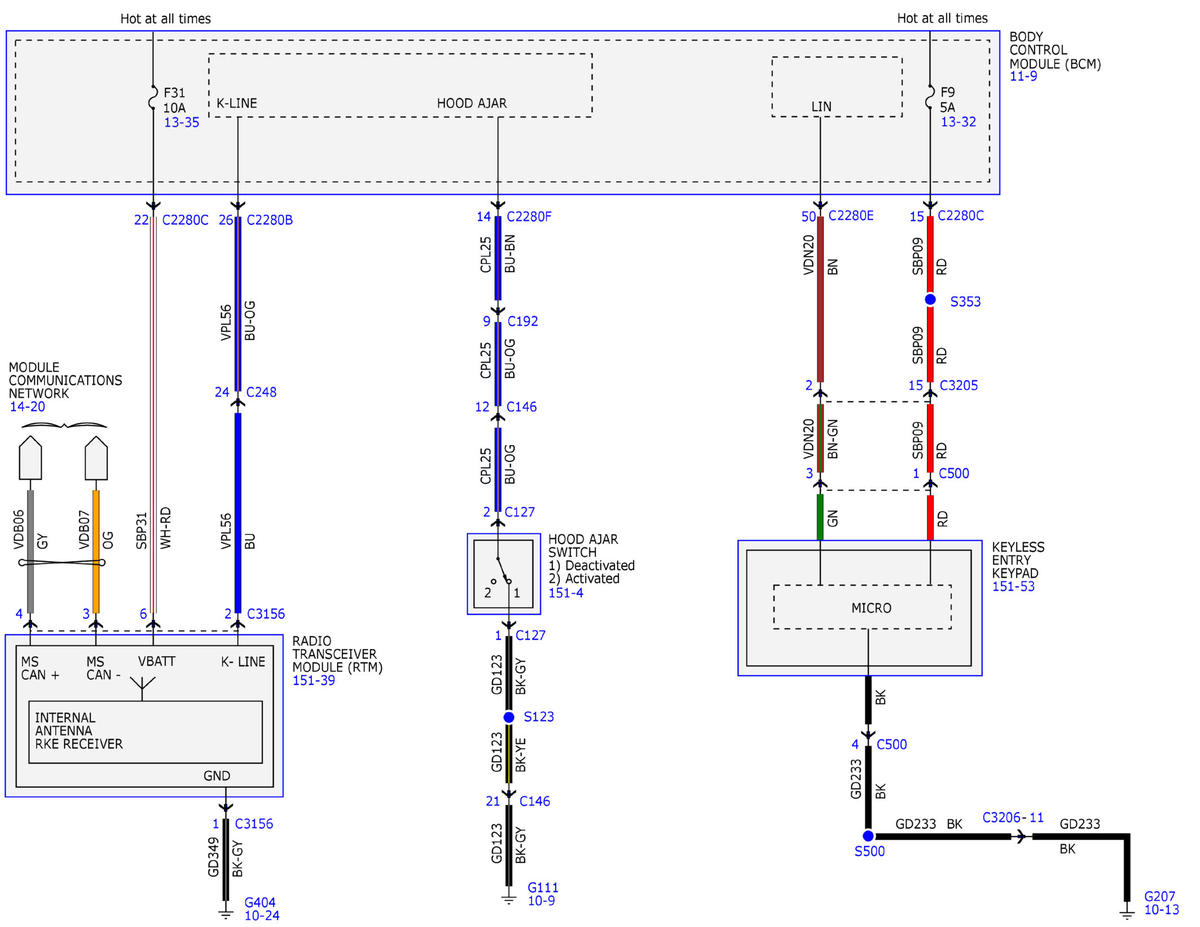

Fig 9: Remote Keyless Entry and Alarm System Wiring Diagrams (9 Of 10)
GFDWR94692Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry and Alarm System Wiring Diagrams (10 Of 10)
GFDWR94693Courtesy of FORD MOTOR COMPANY
