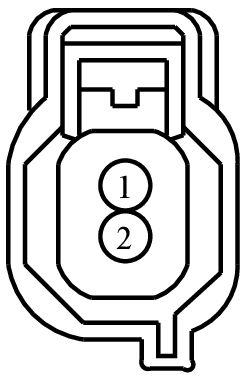

Connector End View (C4526) - REAR PEDESTRIAN ALERT SYSTEM SPEAKER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4526	REAR PEDESTRIAN ALERT SYSTEM SPEAKER	14G540			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-SA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VRA03 (GN-BU)	18	REAR VEHICLE WARNING SPEAKER +	7C3T-14474-SA
2	VRA04 (VT-OG)	18	REAR VEHICLE WARNING SPEAKER -	7C3T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Sensor - Knock
• Sensor - Speed
• Sensor - Water in Fuel
