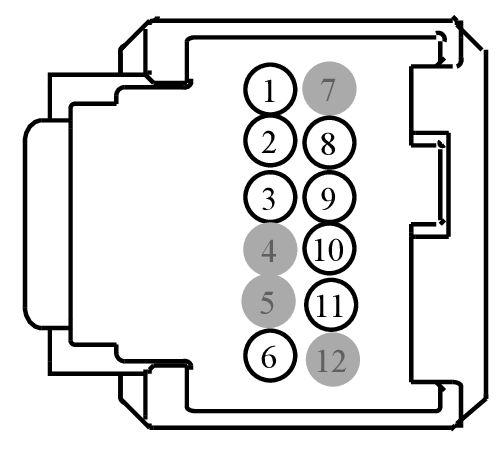

Connector End View (C4525) - PEDESTRIAN ALERT CONTROL MODULE (PACM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4525 | PEDESTRIAN ALERT CONTROL MODULE (PACM) | 14A005 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| 9U5T-14474-EB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD349 (BK-GY) | 20 | GROUND - PILLAR D LEFT | 9U5T-14474-DB | ||||
| 2 | VDB04 (BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | 9U5T-14474-EB | ||||
| 3 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | 9U5T-14474-EB | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CBP22 (GN-OG) | 20 | FUSE - 22 OR CIRCUIT BREAKER | 9U5T-14474-DB | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | VRA02 (VT-WH) | 18 | CTRL MOD. - APPROACHING VEHICLE AUDIBLE WARNING AUDIO OUT - | 9U5T-14474-EB | ||||
| 9 | VRA01 (GY-YE) | 18 | CTRL MOD. - APPROACHING VEHICLE AUDIBLE WARNING AUDIO OUT + | 9U5T-14474-EB | ||||
| 10 | VRA04 (VT-OG) | 18 | REAR VEHICLE WARNING SPEAKER - | 9U5T-14474-EB | ||||
| 11 | VRA03 (GN-BU) | 18 | REAR VEHICLE WARNING SPEAKER + | 9U5T-14474-EB | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1401
Service Part Number:
EU2Z-14S411-SA
Gauge:
20
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat (Rear)
- Module - Image Processing
- Module - Media Gateway
- Module - Power Steering
- Monitor - Video/DVD
