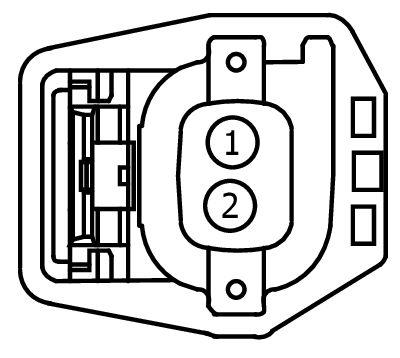

Connector End View (C4340) - LIFTGATE RELEASE SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4340	LIFTGATE RELEASE SWITCH	none	14B562	#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRT18 (20)	YE-GY	SWITCH - ANTI THEFT INHIBIT # LIFTGATE/DECKLID	N/A
2	GD351 (20)	BK-VT	GROUND	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1448

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AUA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Switch - Deck Lid / Lift Gate (ANTI-THEFT)
