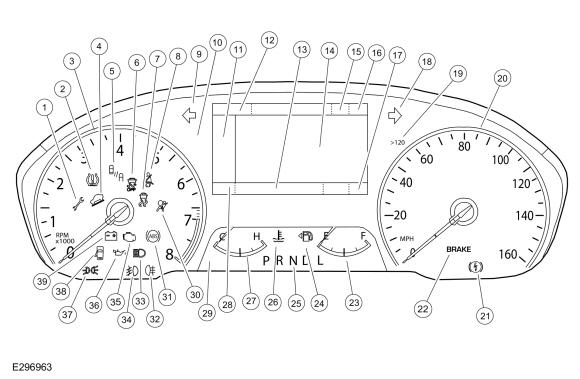

Base IPC
Base IPC
| Item | Description |
|---|---|
| 1 | Powertrain malfunction (wrench) indicator |
| 2 | TPMS indicator |
| 3 | Tachometer |
| 4 | Hill descent control indicator |
| 5 | BLIS off warning indicator |
| 6 | Stability-traction control disabled (sliding car off icon) warning indicator |
| 7 | Stability-traction control (sliding car icon) warning indicator |
| 8 | Seatbelt/BeltMinder® warning indicator |
| 9 | LH turn indicator |
| 10 | Perimeter alert (Police option) |
| 11 | Main message center menu display |
| 12 | Menu title/odometer display |
| 13 | Rotating RTT indicators: Cruise control RTT indicator Liftgate unlocked (lock delay) (Police option) Police pursuit RTT indicator |
| 14 | Message center display area |
| 15 | Rotating RTT indicators: Engineering Test (ET) mode indicator |
| 16 | Outside air temperature |
| 17 | Compass display |
| 18 | RH turn signal indicator |
| 19 | Overspeed warning indicator (Gulf Cooperative Countries [GCC] only) |
| 20 | Speedometer |
| 21 | Electric parking brake indicator |
| 22 | Brake warning indicator |
| 23 | Fuel gauge |
| 24 | Low fuel warning indicator |
| 25 | PRNDL display |
| 26 | Engine over-temperature warning indicator |
| 27 | Temperature gauge |
| 28 | Auto stop/start indicator (except Police FHEV option) Ready indicator (Police FHEV option) |
| 29 | Auto stop/start indicator (Police FHEV option) |
| 30 | Airbag warning indicator |
| 31 | ABS warning indicator |
| 32 | Rear fog lamp indicator |
| 33 | High beam indicator |
| 34 | Front fog lamp indicator |
| 35 | MIL |
| 36 | Low engine oil pressure warning indicator |
| 37 | Lights on indicator |
| 38 | Door ajar indicator |
| 39 | Charging system warning indicator |
