Connector End View (C383) - FRONT SEAT FRONT HEIGHT MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C383	FRONT SEAT FRONT HEIGHT MOTOR LH	14D231			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS02 (GY-YE)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT DOWN	N/A
2	*	*	Not Used	N/A
3	CPS03 (VT-GY)	14	CTRL MOD. - DRIVER SEAT HEIGHT FRONT / TILT UP	N/A
4	*	*	Not Used	N/A

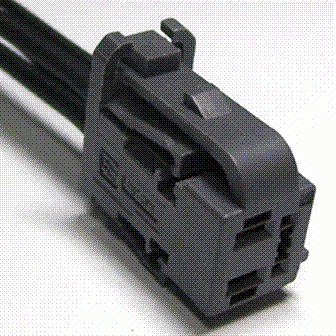

Available Pigtail Kits

Pigtail Kit Part Number WPT-1350

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-UA

Gauge:

16 20

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Power Seat Track
• Motor - Seat Height (Front)
