Connector End View (C330) - FRONT SEAT REAR HEIGHT MOTOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C330	FRONT SEAT REAR HEIGHT MOTOR RH	14D230			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPS26 (YE-BU)	14	#N/A	N/A
2	*	*	Not Used	N/A
3	CPS27 (BU-BN)	14	#N/A	N/A
4	*	*	Not Used	N/A

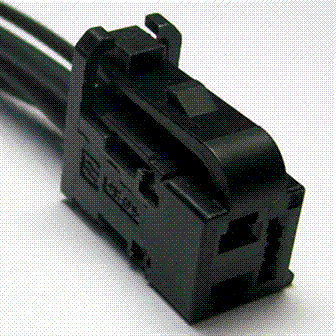

Available Pigtail Kits

Pigtail Kit Part Number WPT-1311

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-BAA

Gauge:

20

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Seat Height (Front)
• Motor - Seat Recline
